Front Outer Grille Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

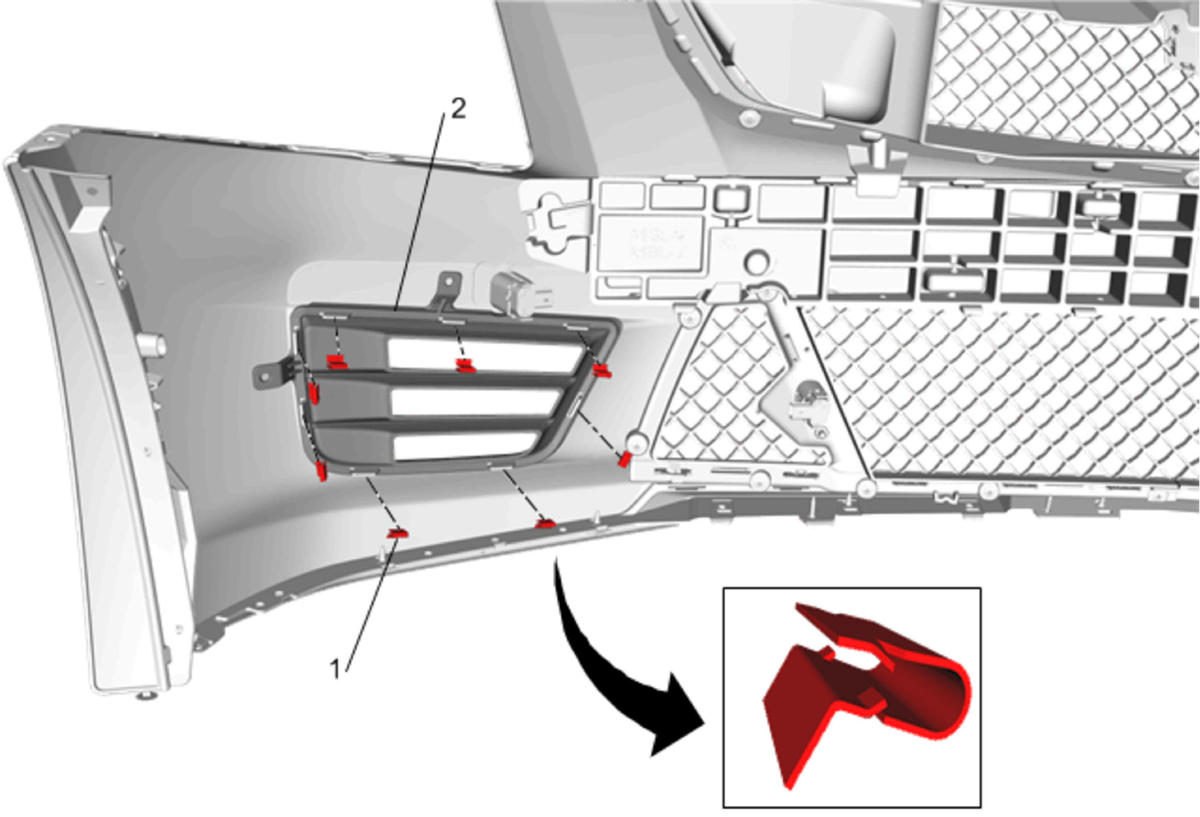

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Energy Upper Absorber Replacement (Sedan)Front Bumper Fascia Energy Upper Absorber Replacement (Coupe Outer)Front Bumper Fascia Energy Upper Absorber Replacement (ATS-V)Front Bumper Fascia Energy Upper Absorber Replacement (Inner and Outer Coupe V)Front Bumper Fascia Energy Upper Absorber Replacement (Coupe Inner) |
|
| 1 | Front Outer Grille Clip (Qty: 8) |
| 2 | Front Outer Grille Procedure Pull the front outer grille from the front fascia. |
