Front Bumper Fascia Energy Upper Absorber Replacement (ATS-V)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

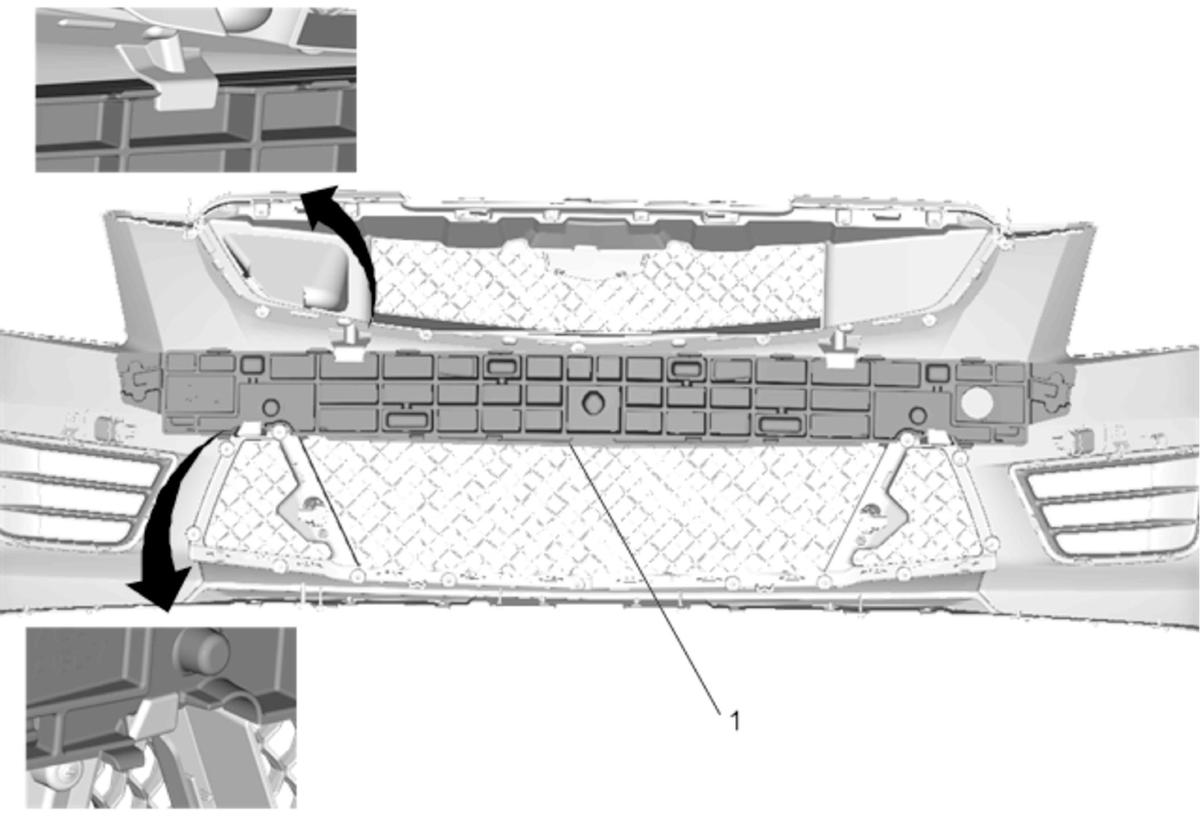

Fig 1: Front Bumper Fascia Energy Upper Absorber (ATS-V)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) .
1	Front Bumper Fascia Energy Upper Absorber Retainer Procedure Remove front bumper fascia wiring harness from upper absorber. Slowly release the two lower retainer tabs, release the two upper tabs and pull the energy absorber from the front bumper fascia.

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) .

Front Bumper Fascia Energy Upper Absorber Retainer

Procedure

Remove front bumper fascia wiring harness from upper absorber.
Slowly release the two lower retainer tabs, release the two upper tabs and pull the energy absorber from the front bumper fascia.
