Front Bumper Fascia Energy Upper Absorber Replacement (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

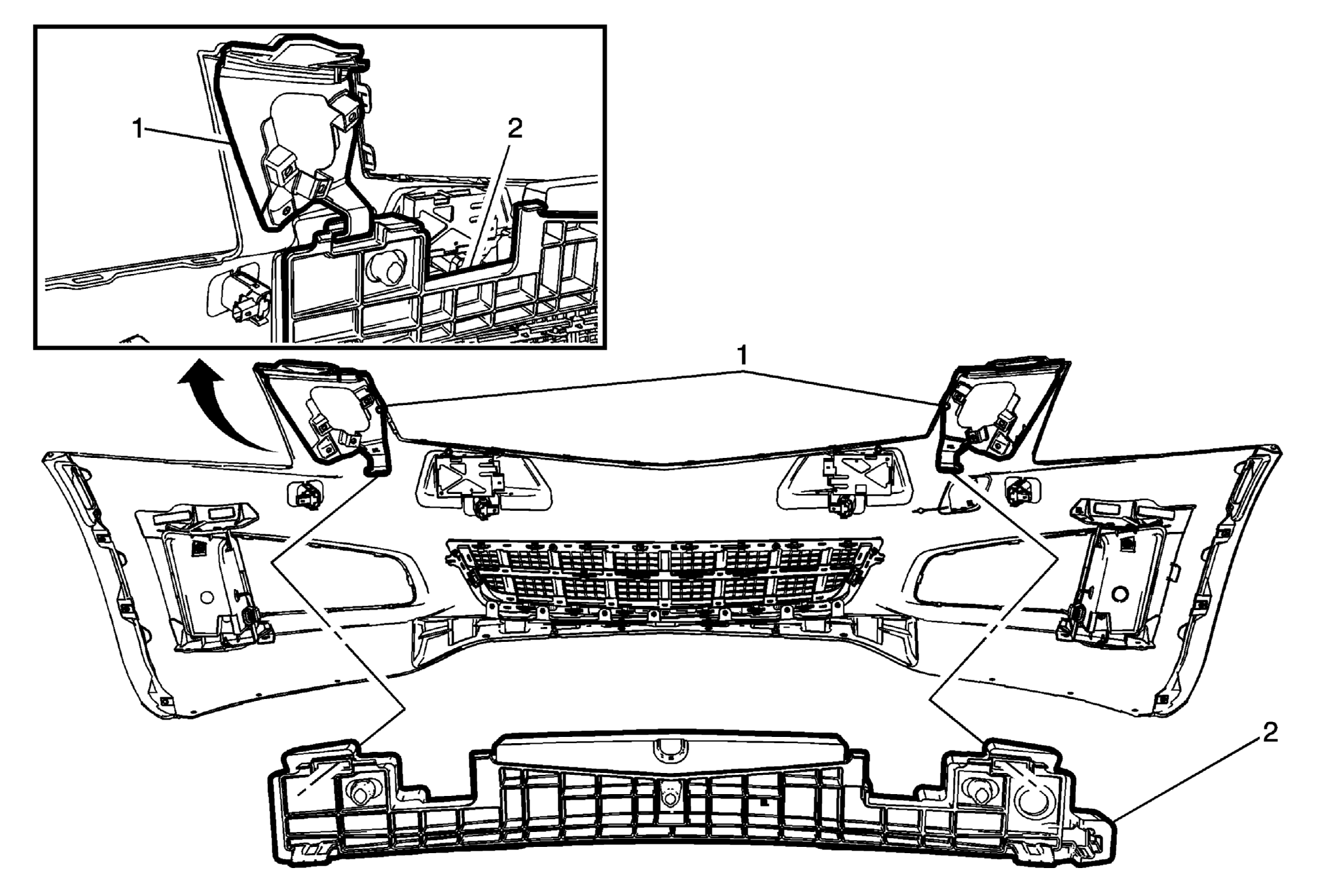

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) . |
|
| 1 | Front Bumper Fascia Energy Upper Absorber Retainer Procedure Slowly lift up each of the retainer tabs and pull the energy absorber from the front bumper fascia. |
| 2 | Front Bumper Fascia Energy Upper Absorber |
