Front Bumper Fascia Energy Upper Absorber Replacement (Inner and Outer Coupe V)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

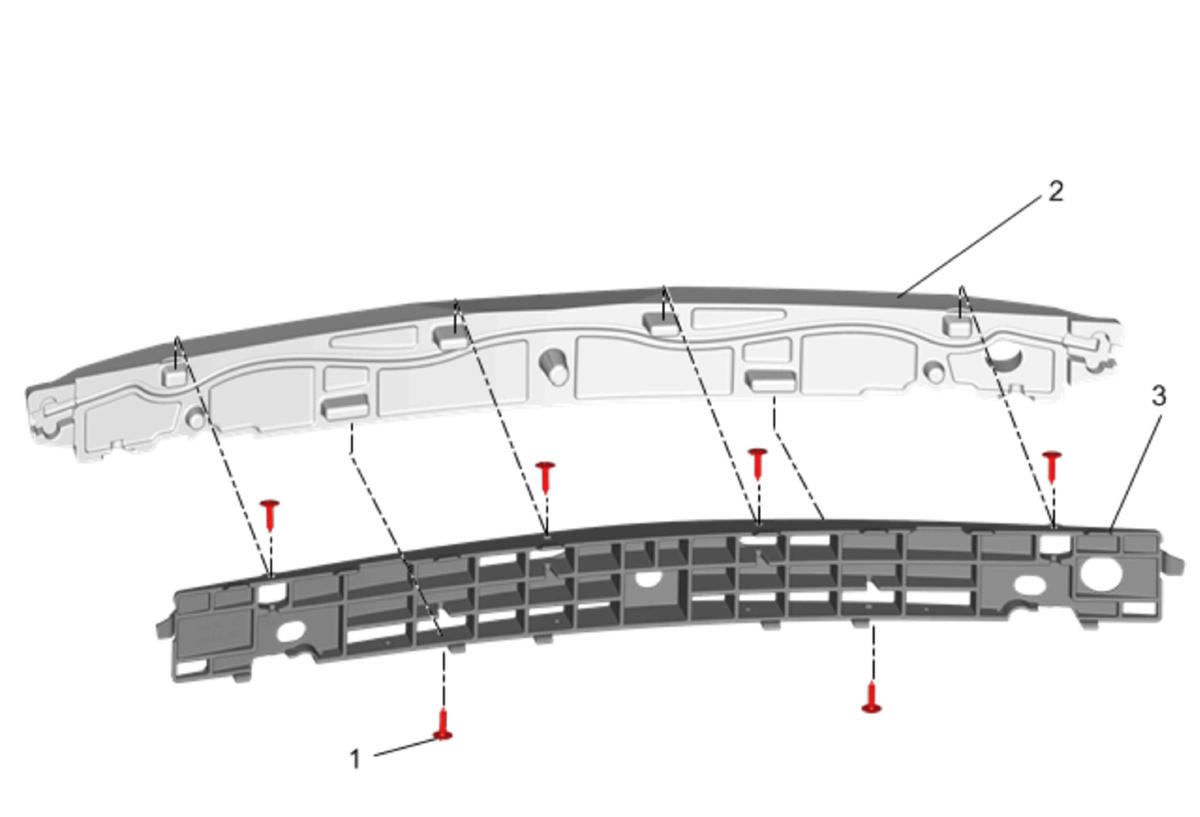

Fig 1: Front Bumper Fascia Energy Upper Absorber (Inner and Outer Coupe V)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) Place the bumper fascia face down on a clean protected surface. Remove front bumper fascia wiring harness.
1	Front Bumper Fascia Energy Upper Absorber Retainer (Qty 6)
2	Front Bumper Fascia Energy Upper Absorber Outer
3	Front Bumper Fascia Energy Upper Absorber Inner
