Air Distributor Case Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

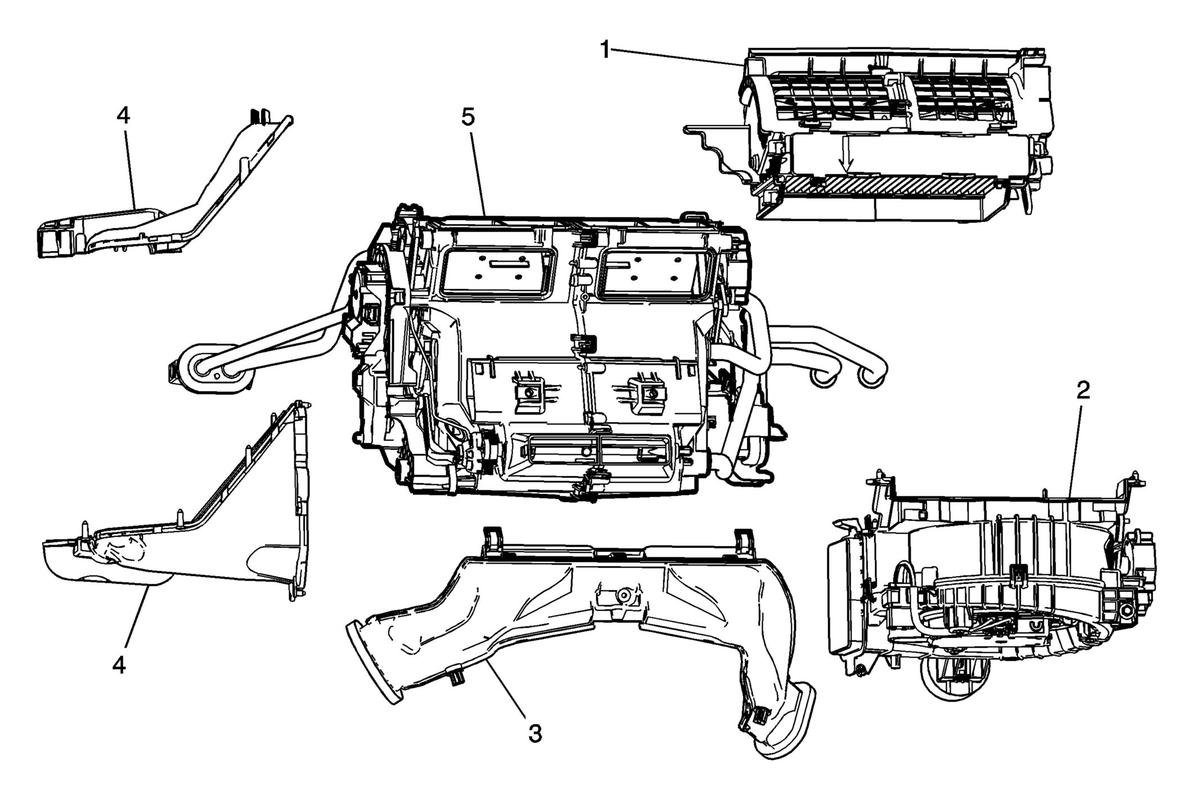

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the heater and air conditioning evaporator and blower module assembly. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation . |
|
| 1 | Air Inlet Housing Assembly Procedure Refer to Air Inlet Housing Replacement . |
| 2 | Blower Case Assembly Procedure Refer to Blower Case Replacement . |
| 3 | Air Distributor Lower Duct Assembly Procedure Refer to Air Distributor Lower Duct Replacement . |
| 4 | Air Conditioning Evaporator Tube Upper and Lower Cover Procedure Refer to Air Conditioning Evaporator Tube Cover Replacement . |
| 5 | Air Distributor Case Assembly Procedure Transfer all necessary components. |
