Blower Case Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

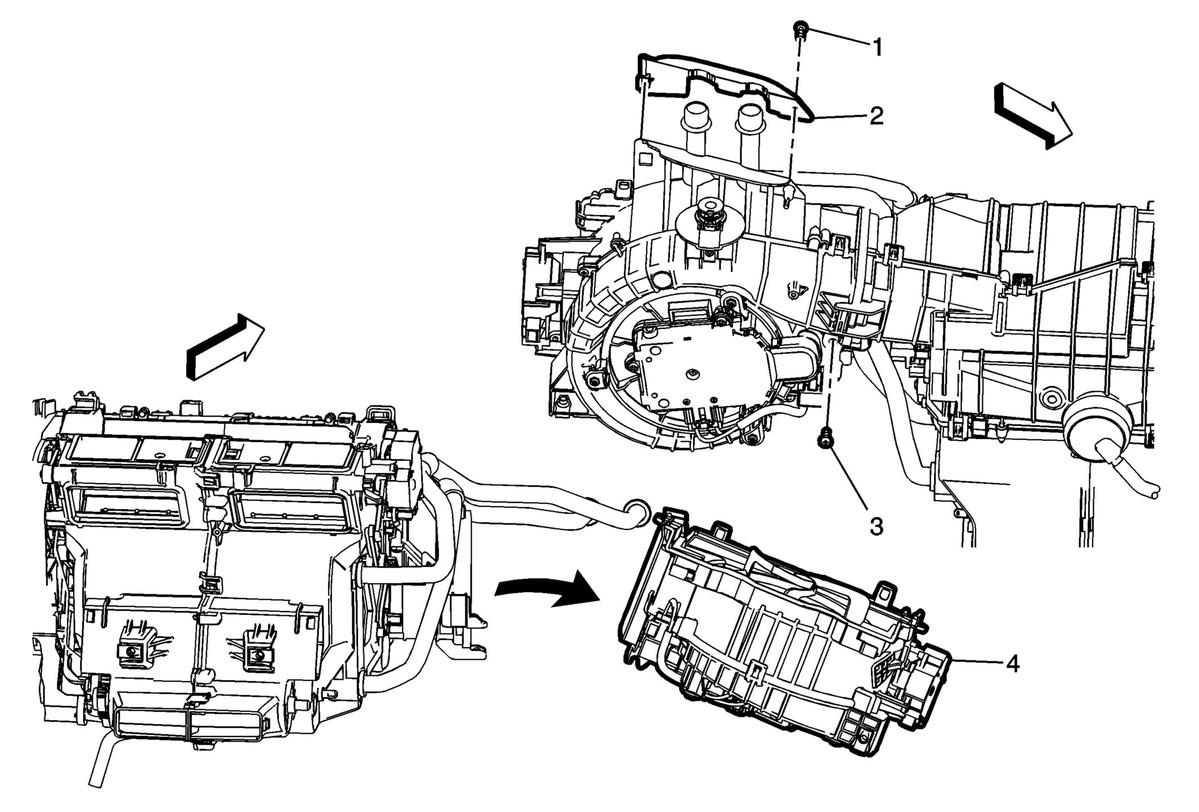

Fig 1: Blower Case

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air inlet housing assembly. Refer to Air Inlet Housing Replacement . Disconnect the electrical connectors as necessary.
1	Heater Core Tube Bracket Fastener CAUTION: Refer to Fastener Caution .
2	Heater Core Tube Bracket
3	Blower Case Assembly Fastener
4	Blower Case Assembly Procedure Unlatch and tilt down the blower case assembly form the air conditioning evaporator case assembly to remove.
