Air Distributor Lower Duct Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

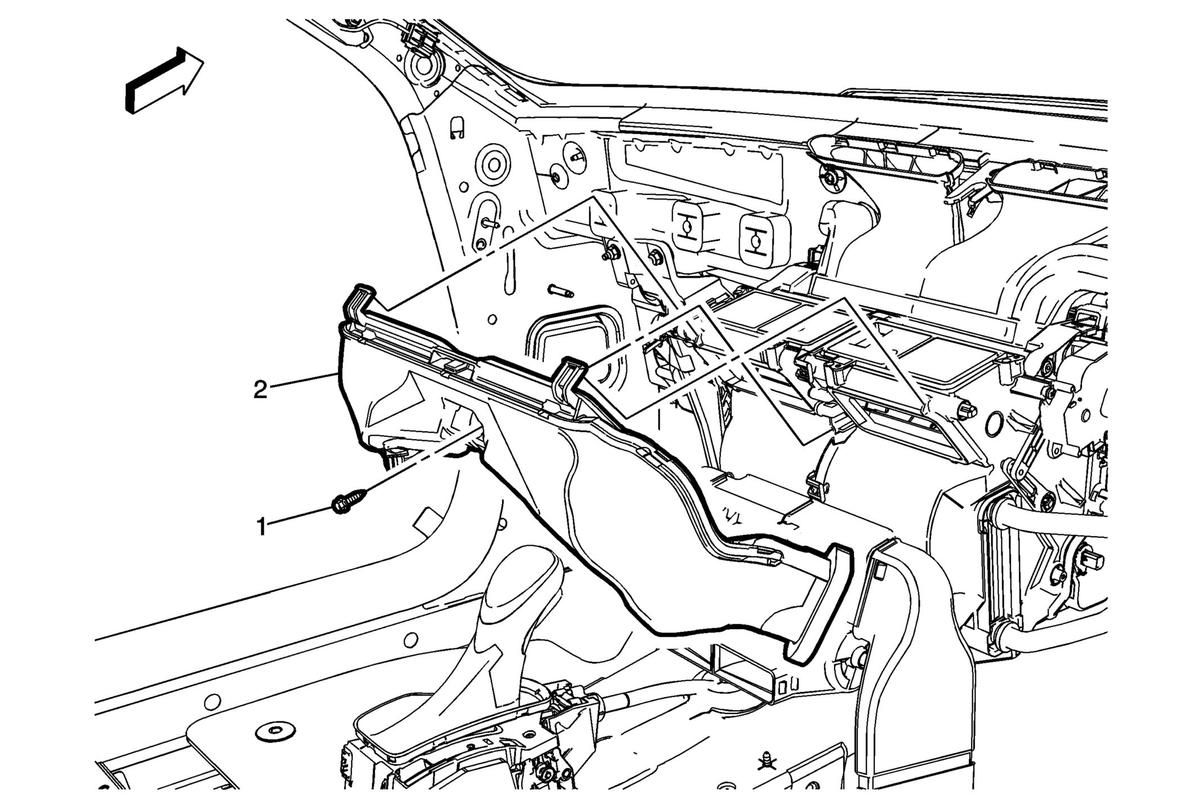

Fig 1: Air Distributor Lower Duct

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Remove the air distributor center duct. Refer to Air Distributor Center Duct Replacement . Remove the instrument panel tie bar assembly. Refer to Instrument Panel Tie Bar Replacement . Disconnect the lower air duct temperature sensor electrical connectors.
1	Air Distributor Lower Duct Bolt CAUTION: Refer to Fastener Caution .
2	Air Distributor Lower Duct Procedures Using the appropriate tool release the air distributor lower duct retaining clips. Transfer the lower duct air temperature sensors.

Call out

Component Name

Preliminary Procedures

Remove the air distributor center duct. Refer to Air Distributor Center Duct Replacement .
Remove the instrument panel tie bar assembly. Refer to Instrument Panel Tie Bar Replacement .
Disconnect the lower air duct temperature sensor electrical connectors.

Air Distributor Lower Duct Bolt

CAUTION:

Refer to Fastener Caution .

Air Distributor Lower Duct

Procedures

Using the appropriate tool release the air distributor lower duct retaining clips.
Transfer the lower duct air temperature sensors.
