Air Conditioning Evaporator Tube Cover Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

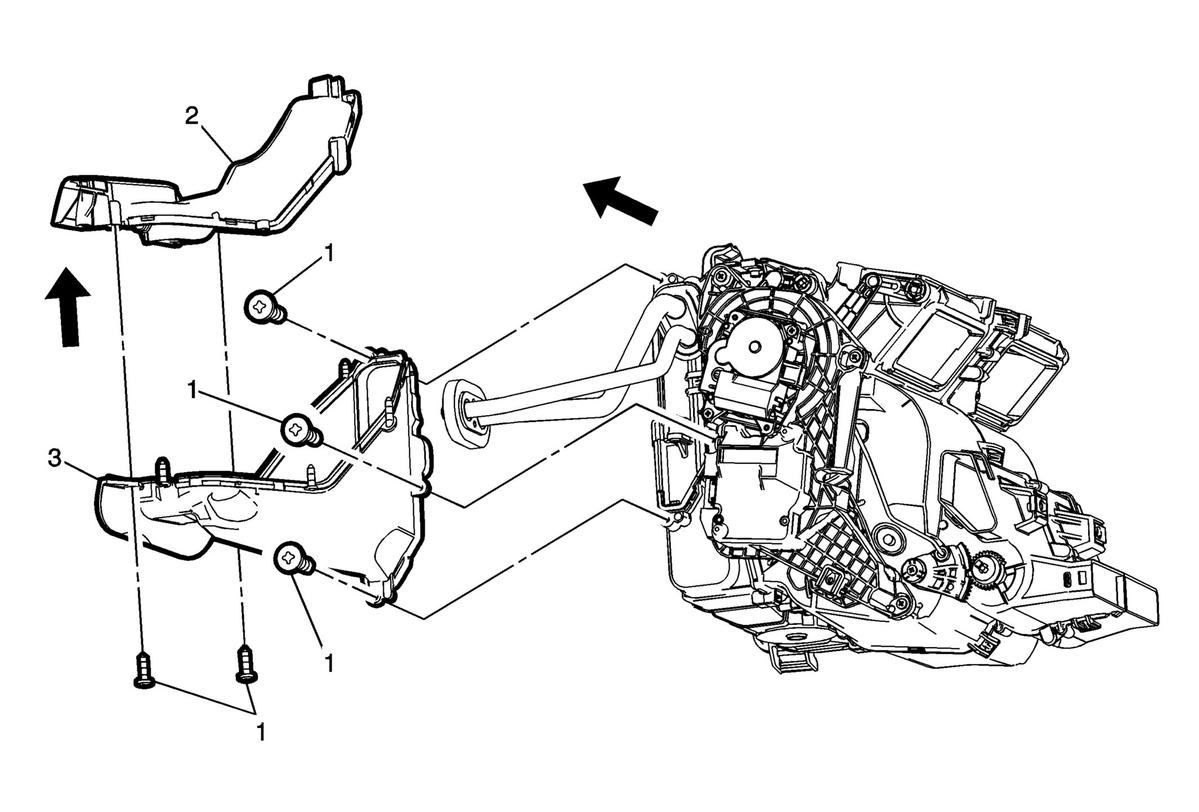

Fig 1: Air Conditioning Evaporator Tube Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the heater and air conditioning evaporator and blower module assembly. Refer to Heater and Air Conditioning Evaporator and Blower Module Removal and Installation . Disconnect the electrical connectors as necessary.
1	Air Conditioning Evaporator Tube Cover Fastener (Qty: 5) CAUTION: Refer to Fastener Caution .
2	Air Conditioning Evaporator Upper Tube Cover Procedures Replace the appropriate part during disassembly. Replace the air conditioning evaporator tube seal.
3	Air Conditioning Evaporator Lower Tube Cover Procedures Replace the appropriate part during disassembly. Replace the air conditioning evaporator tube seal.
