Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator air lower baffle and deflector. Refer Radiator Air Lower Baffle and Deflector Replacement (LTG) .
Drain the engine cooling system. Refer to Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) .

Fig 1: Radiator Surge Tank Inlet Hose (LTG)

Courtesy of GENERAL MOTORS COMPANY

Remove the radiator surge tank inlet hose (2) from the radiator. Refer to Radiator Surge Tank Inlet Hose Replacement (LTG) .

Fig 2: Radiator Inlet Hose (LTG)

Courtesy of GENERAL MOTORS COMPANY

Remove the radiator inlet hose (2) from the radiator. Refer to Radiator Inlet Hose Replacement (LTG) .

Fig 3: Radiator Outlet Hose

Courtesy of GENERAL MOTORS COMPANY

Remove the radiator outlet hose (2) from the radiator. Refer to Radiator Outlet Hose Replacement (LTG without V03) Radiator Outlet Hose Replacement (LTG with V03) .

Fig 4: Radiator Upper Brackets & Mounting Bolts

Courtesy of GENERAL MOTORS COMPANY

Remove the radiator upper brackets (2). Refer to Radiator Upper Bracket Replacement (LTG, LGX) .

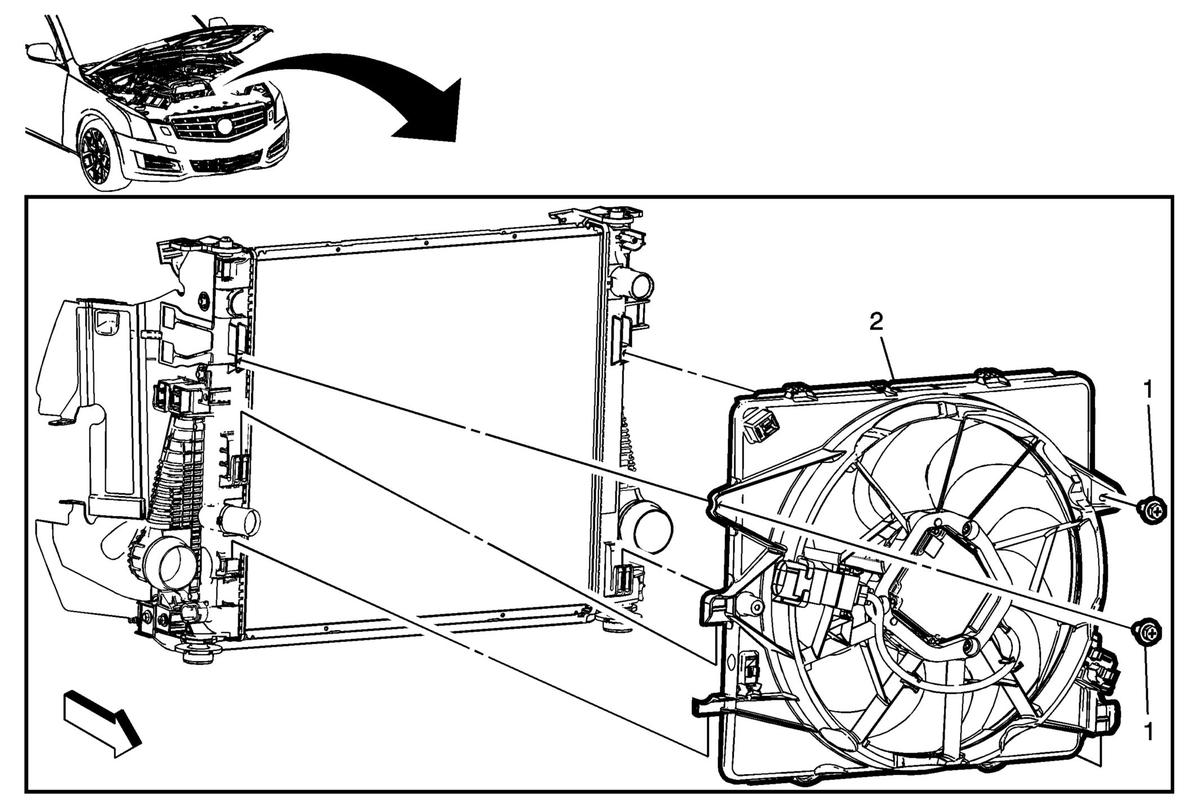

Fig 5: Engine Coolant Fan Shroud

Courtesy of GENERAL MOTORS COMPANY

Remove the engine coolant fan shroud (2) from the radiator. Refer to Engine Coolant Fan Shroud Replacement (LTG without V03) Engine Coolant Fan Shroud Replacement (LTG with VO3) .

Fig 6: Radiator

Courtesy of GENERAL MOTORS COMPANY

Lift up to remove the radiator (1) from the vehicle.
