Radiator Outlet Hose Replacement (LTG without V03)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

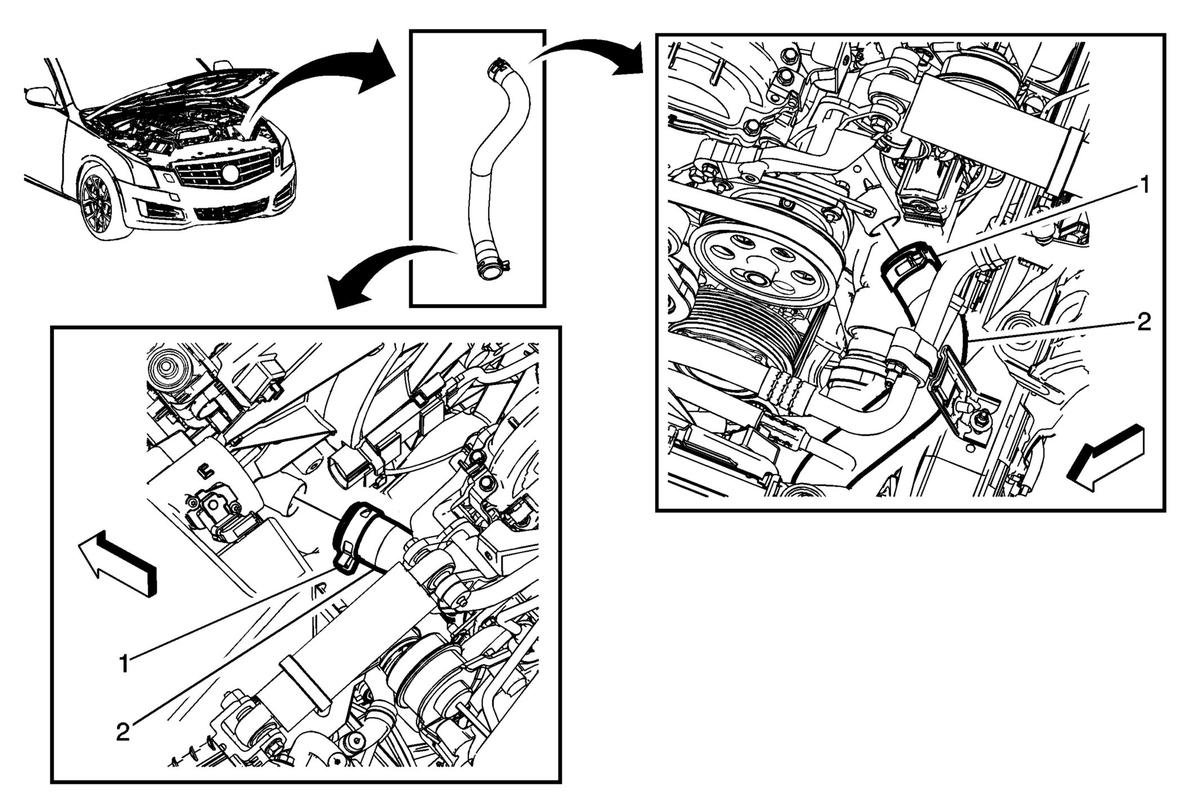

Fig 1: Radiator Outlet Hose
GM2873546Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) .
  2. Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (Sedan)Front Compartment Front Sight Shield Replacement (Coupe) .
  3. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (LTG) .
  4. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LTG) .
1 Radiator Outlet Hose Clamp (Qty: 2)
Procedure
Reposition the radiator outlet hose clamps using the BO-38185  hose clamp pliers.
Special Tools
BO-38185  Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools .
2 Radiator Outlet Hose

Procedure

  1. Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) .
  2. Inspect the cooling system for leaks.
