Engine Coolant Fan Shroud Replacement (LTG without V03)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

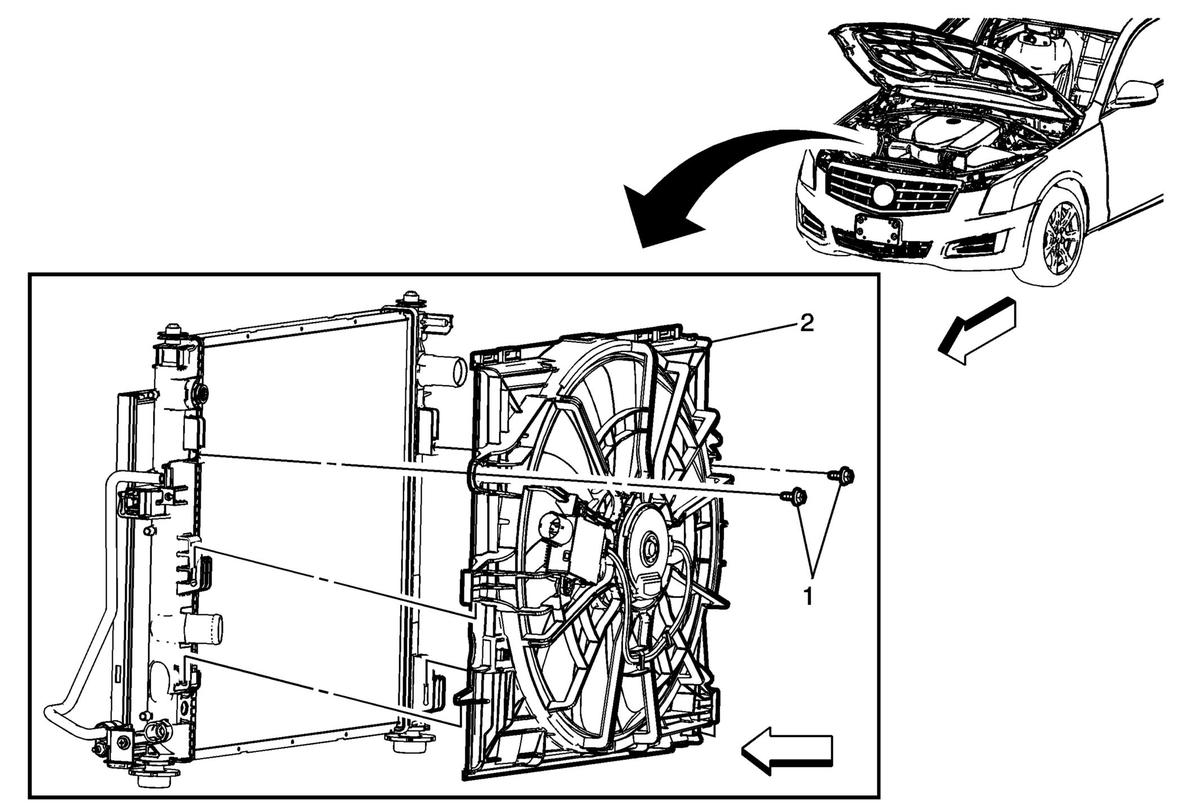

Fig 1: Engine Coolant Fan Shroud (LTG without V03)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (Sedan)Front Compartment Front Sight Shield Replacement (Coupe) . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LTG) . Remove the engine mount vacuum filter from the engine coolant fan shroud. Refer to Engine Mount Vacuum Filter Replacement . Disconnect the engine coolant fan motor electrical connector from the fan control module. Unclip the transmission fluid cooler pipes from the engine coolant fan shroud, if equipped.
1	Engine Coolant Fan Shroud Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Engine Coolant Fan Shroud Procedure Transfer all necessary parts.

Callout

Component Name

Preliminary Procedures

Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (Sedan)Front Compartment Front Sight Shield Replacement (Coupe) .
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LTG) .
Remove the engine mount vacuum filter from the engine coolant fan shroud. Refer to Engine Mount Vacuum Filter Replacement .
Disconnect the engine coolant fan motor electrical connector from the fan control module.
Unclip the transmission fluid cooler pipes from the engine coolant fan shroud, if equipped.

Engine Coolant Fan Shroud Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Engine Coolant Fan Shroud
Procedure
Transfer all necessary parts.
