Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

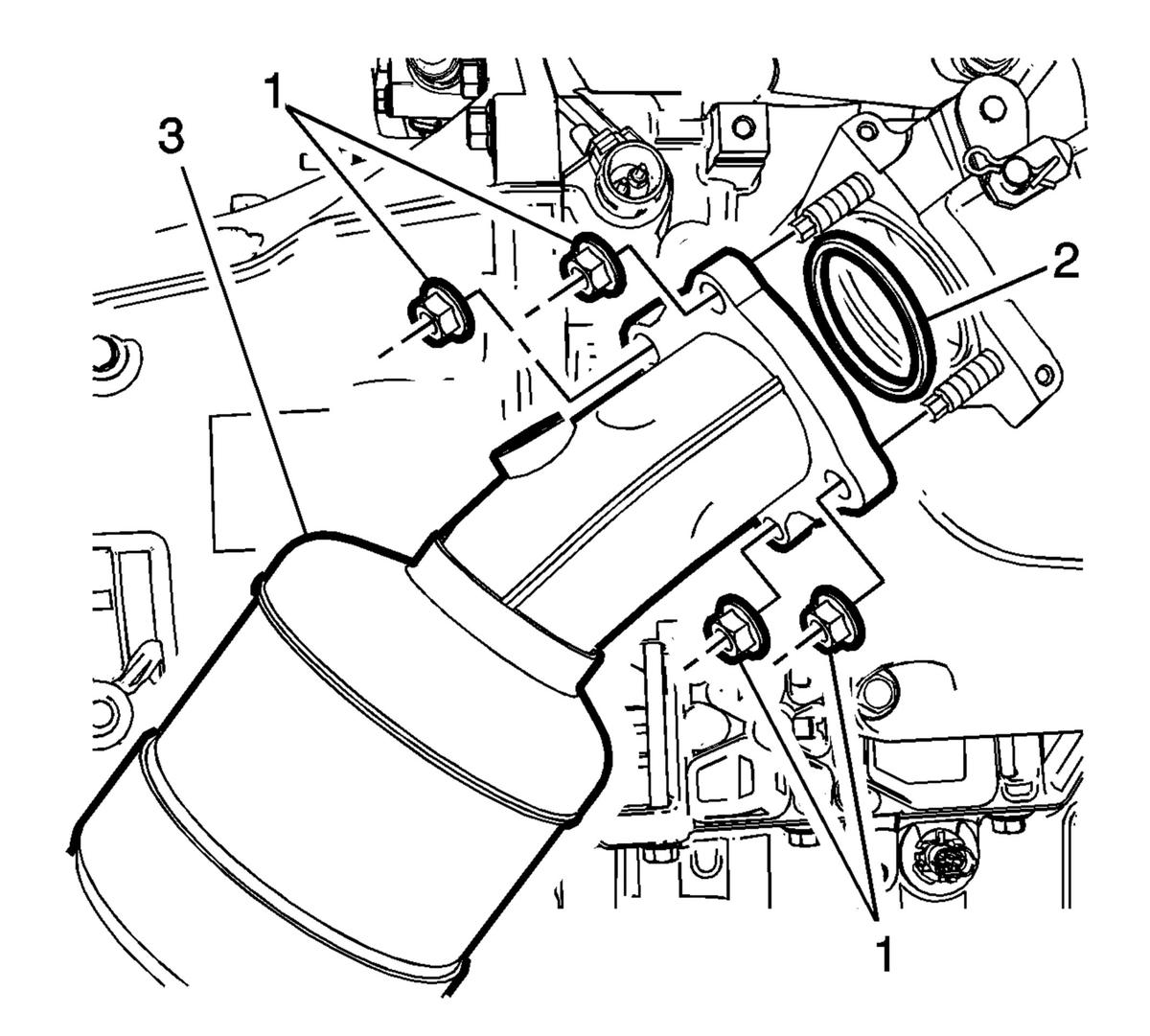

    Fig 1: Catalytic Converter (Bank 1)
    GM3556441Courtesy of GENERAL MOTORS COMPANY
  1. Remove Catalytic Converter (3) @Bank 1 Catalytic Converter Replacement - Right Side (LF4)Catalytic Converter Replacement - Right Side (LGX)
    2. Fig 2: Turbocharger Wastegate Actuator
    GM3600469Courtesy of GENERAL MOTORS COMPANY
  2. Remove Turbocharger Wastegate Actuator (2) @Bank 1 - Turbocharger Wastegate Actuator Replacement - Left Side
  3. Remove Charge Air Cooler Inlet Hose@Bank 1 -Charge Air Cooler Inlet Air Hose Replacement - Right Side
  4. Disconnect Turbocharger Coolant Feed Pipe @Turbocharger - Turbocharger Coolant Feed Pipe Replacement (LF4 - Bank 2)Turbocharger Coolant Feed Pipe Replacement (LF4 - Bank 1)
  5. Disconnect Turbocharger Coolant Return Pipe @Turbocharger - Turbocharger Coolant Return Pipe Replacement (LF4 - Bank 1)
  6. Disconnect Turbocharger Oil Feed Pipe @Turbocharger - Turbocharger Oil Feed Pipe Replacement (Bank 1)
  7. Disconnect Turbocharger Oil Return Pipe @Turbocharger - Turbocharger Oil Return Pipe Replacement (Bank 1)

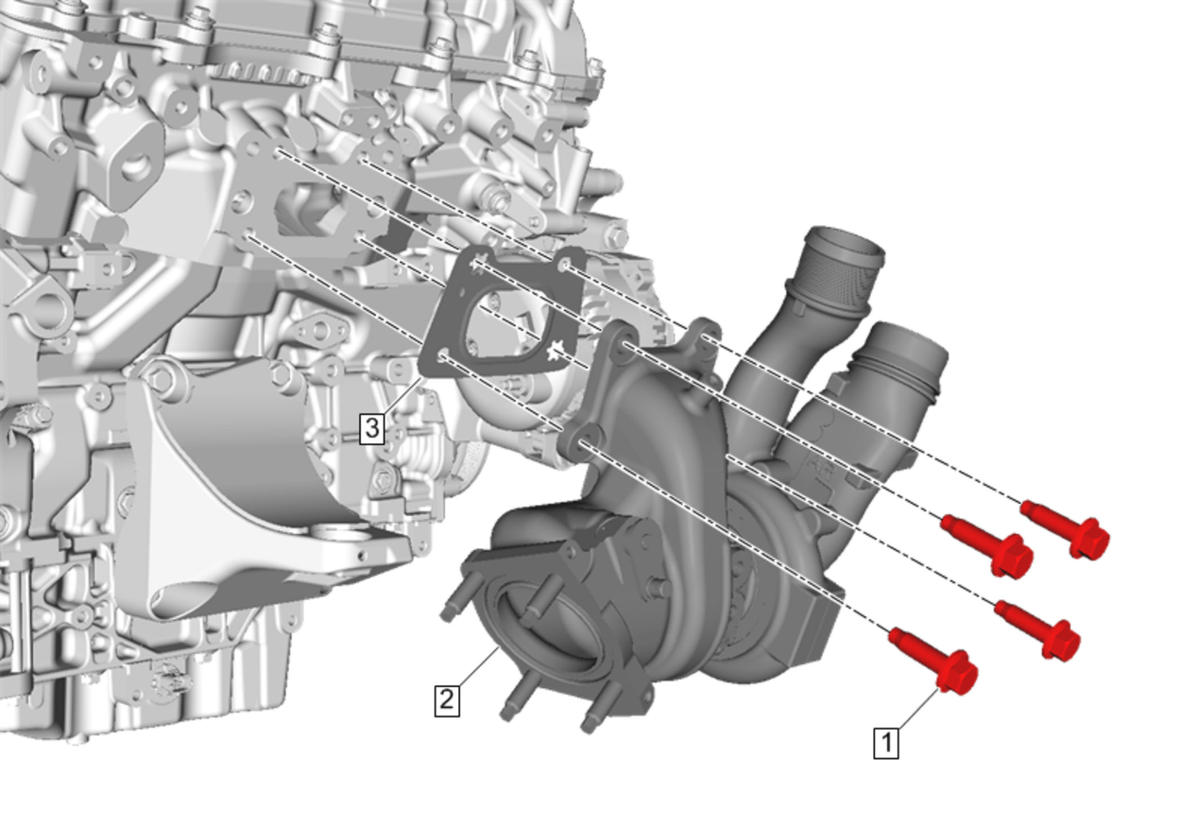

    8. Fig 3: Turbocharger Gasket
    GM4322265Courtesy of GENERAL MOTORS COMPANY
  8. Remove Turbocharger Bolt (1)
  9. Remove Turbocharger (2)
  10. Remove Turbocharger Gasket (3) and DISCARD
  11. Transfer components as necessary.
