Turbocharger Oil Return Pipe Replacement (Bank 1)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

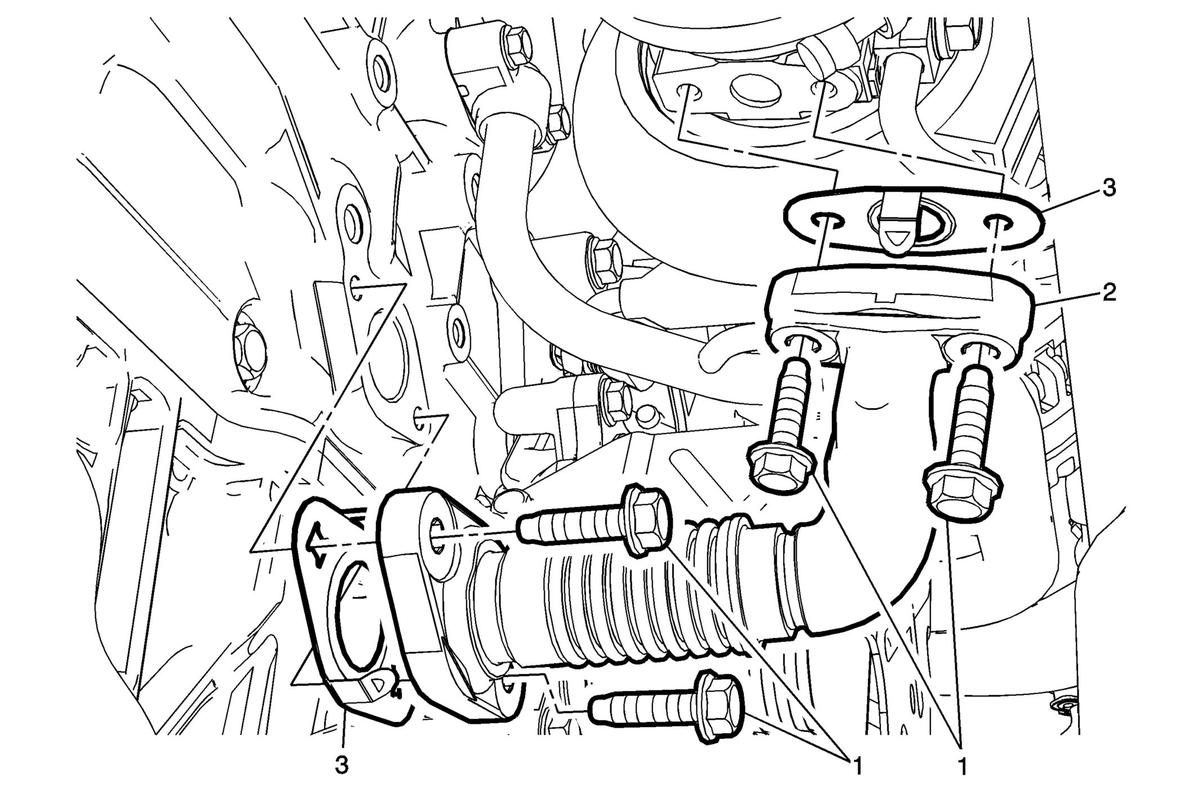

Fig 1: Turbocharger Oil Return Pipe (Bank 1)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the right side engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side (LGX - AWD) Engine Mount Bracket Replacement - Right Side (LGX - RWD) Engine Mount Bracket Replacement - Right Side (LF4) .
1	Turbocharger Oil Return Pipe Bolts CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Turbocharger Oil Return Pipe
3	Gaskets NOTE: Discard and replace with NEW gaskets.
