Turbocharger Oil Feed Pipe Replacement (Bank 1)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

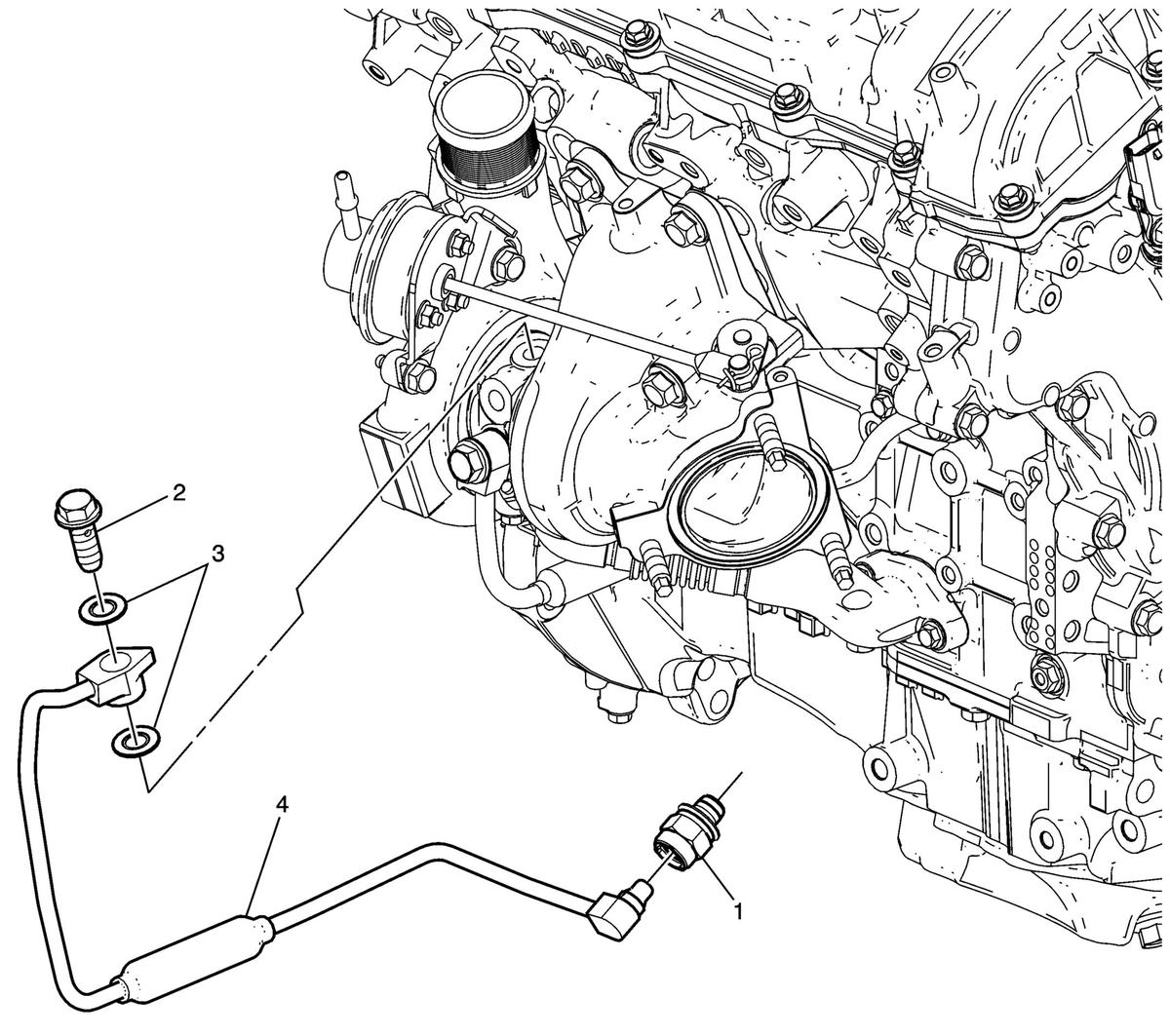

Fig 1: Turbocharger Oil Feed Pipe (Bank 1)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the generator bracket. Refer to Generator and Drive Belt Tensioner Bracket Replacement . Remove the turbocharger heat shield. Refer to Turbocharger Heat Shield Replacement (LF4 Bank 1) . Remove the right turbocharger wastegate actuator. Refer to Turbocharger Wastegate Actuator Replacement - Right Side .
1	Turbocharger Oil Feed Pipe Fitting NOTE: Install NEW fitting. It is not reusable.
2	Turbocharger Oil Feed Pipe Bolt CAUTION: Refer to Fastener Caution . Tighten 35 N.m (26 lb ft)
3	Turbocharger Oil Feed Pipe Gaskets NOTE: Install NEW gaskets. They are not reusable.
4	Turbocharger Oil Feed Pipe
