Charge Air Cooler Inlet Air Hose Replacement - Right Side
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

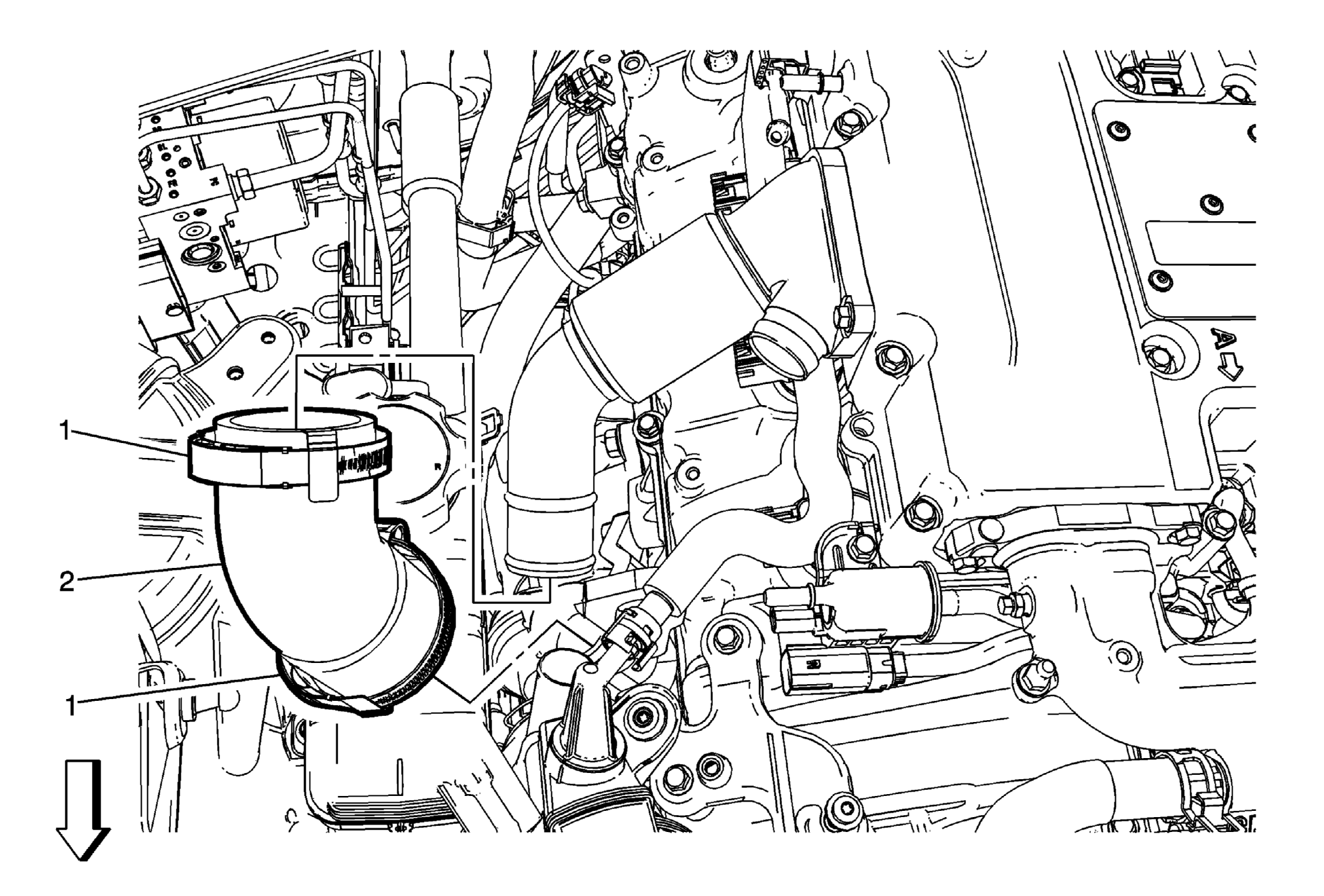

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the charge air cooler inlet pipe right side. Refer to Charge Air Cooler Inlet Pipe Replacement - Right Side . |
|
| 1 | Charge Air Cooler Inlet Air Hose Clamp (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Charge Air Cooler Inlet Air Hose |
