Turbocharger Coolant Feed Pipe Replacement (LF4 - Bank 1)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

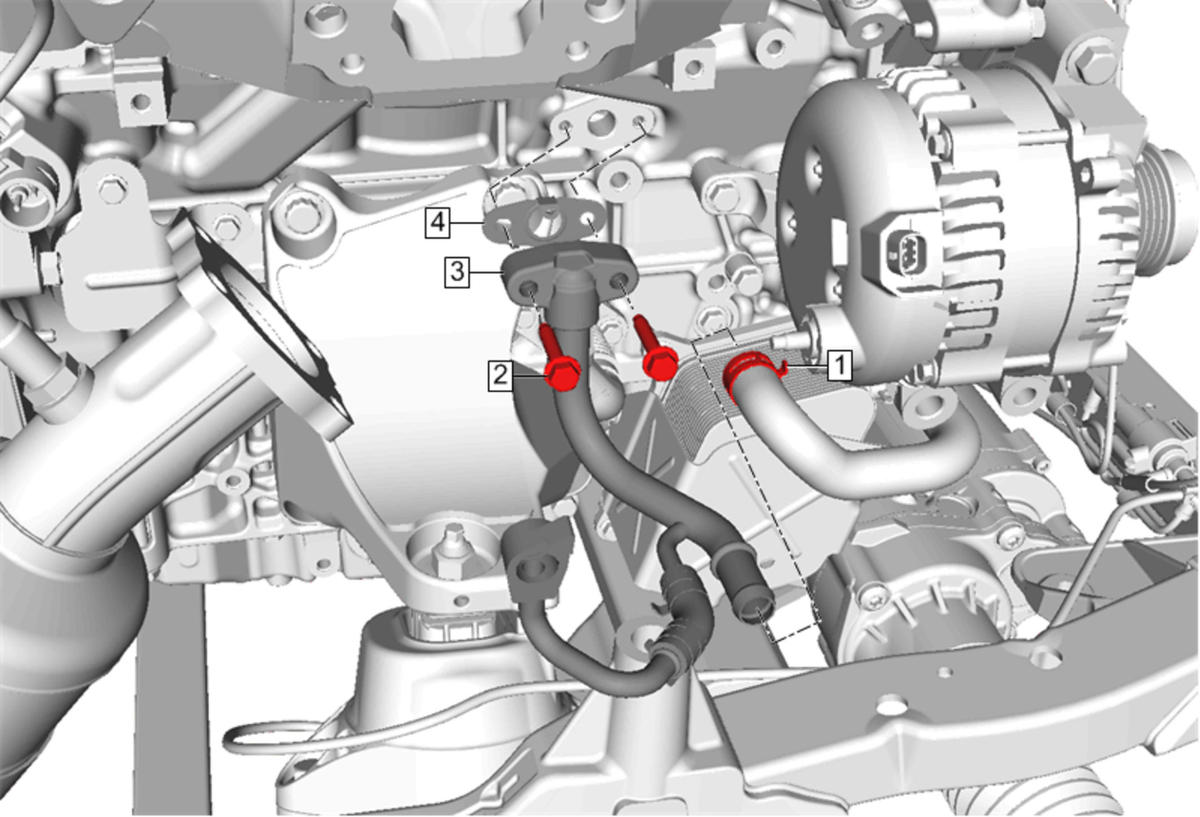

Fig 1: Turbocharger Coolant Feed Pipe (LF4 - Bank 1)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) Turbocharger Replacement (Bank 1)
1	Hose Clamp
2	Turbocharger Coolant Feed Pipe Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Turbocharger Coolant Feed Pipe
4	Turbocharger Coolant Feed Pipe Gasket Procedure Clean the gasket surfaces. Install a NEW gasket.
