Rear Seat Belt Retractor Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

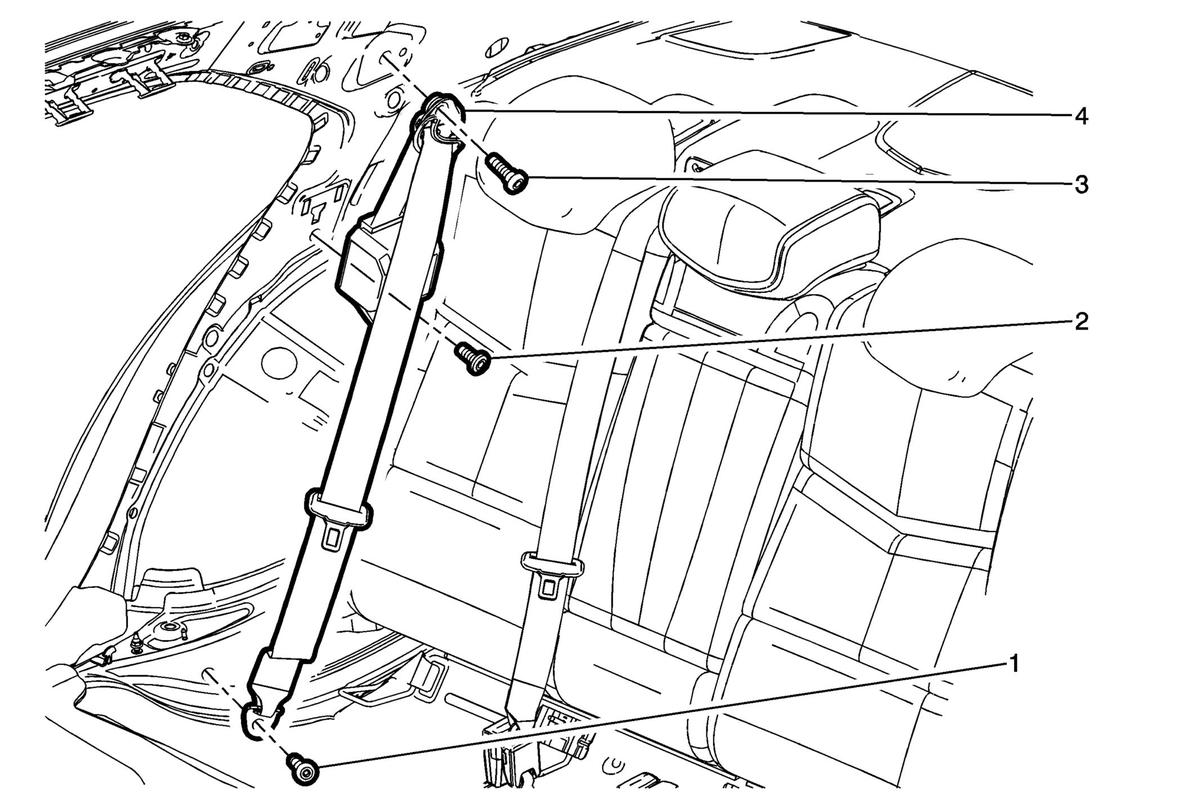

Fig 1: Rear Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan)Rear Seat Cushion Removal and Installation (Coupe) . Remove the rear seat back cushion bolster, if equipped. Refer to Rear Seat Back Bolster Replacement (Sedan)Rear Seat Back Bolster Replacement (Coupe) . Remove the rear seat back cushion, if equipped with fixed seat back. Refer to Rear Seat Back Cushion Removal and Installation (40% Seat with AM9)Rear Seat Back Cushion Removal and Installation (60% Seat with AM9)Rear Seat Back Cushion Removal and Installation (without AM9) . Remove the quarter upper trim panel on the sedan, or the quarter window trim finish panel on the coupe. Refer to Quarter Upper Trim Panel Replacement , or Quarter Window Trim Finish Panel Replacement (Coupe) .
1	Rear Seat Belt Retractor Anchor Plate Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Belt Retractor Bolt (lower) Tighten 45 N.m (33 lb ft)
3	Rear Seat Belt Retractor Bolt (upper) Tighten 45 N.m (33 lb ft)
4	Rear Seat Belt Retractor
