Rear Seat Back Bolster Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

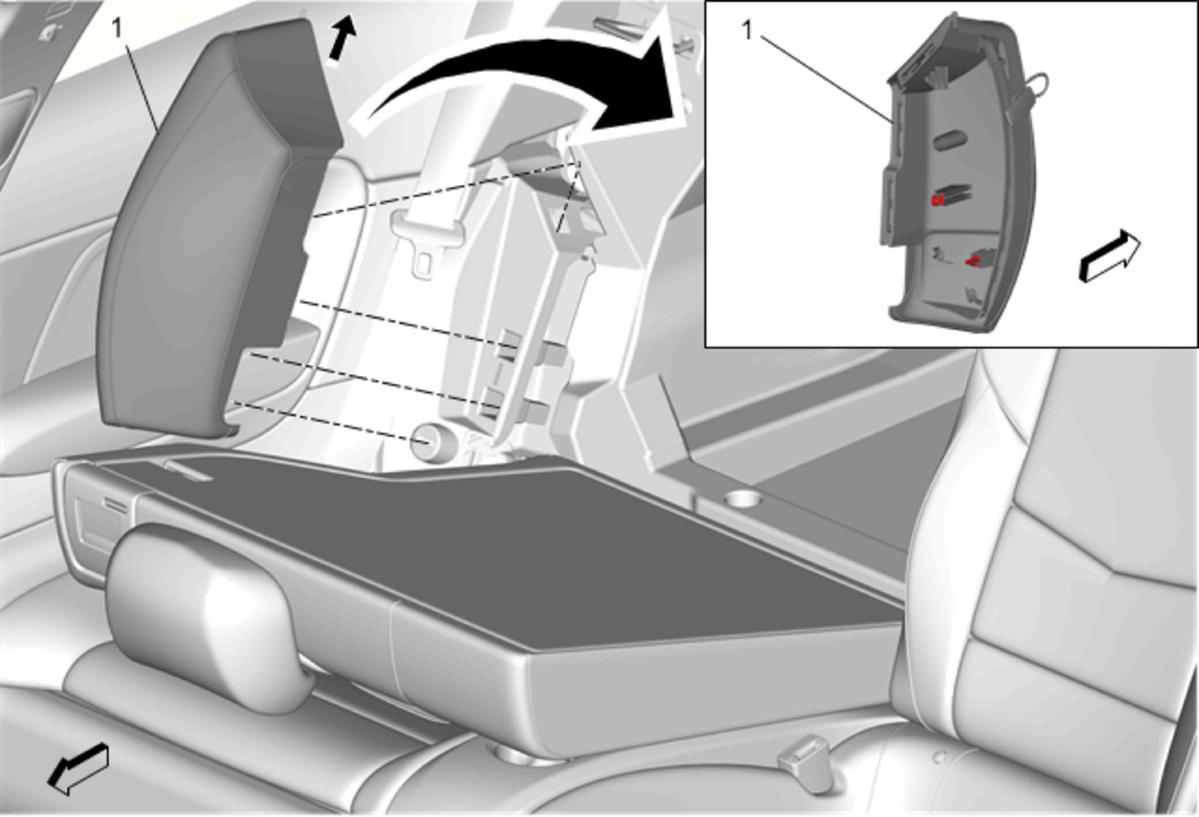

Fig 1: Rear Seat Back Bolster (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Back Bolster NOTE: Fold rear seat back cushion down to gain better access to the back of bolster. Procedure Pull the upper seat back cushion bolster forward. Pull the seat back cushion bolster up. Remove rear seat back cushion bolster.
