Quarter Window Trim Finish Panel Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

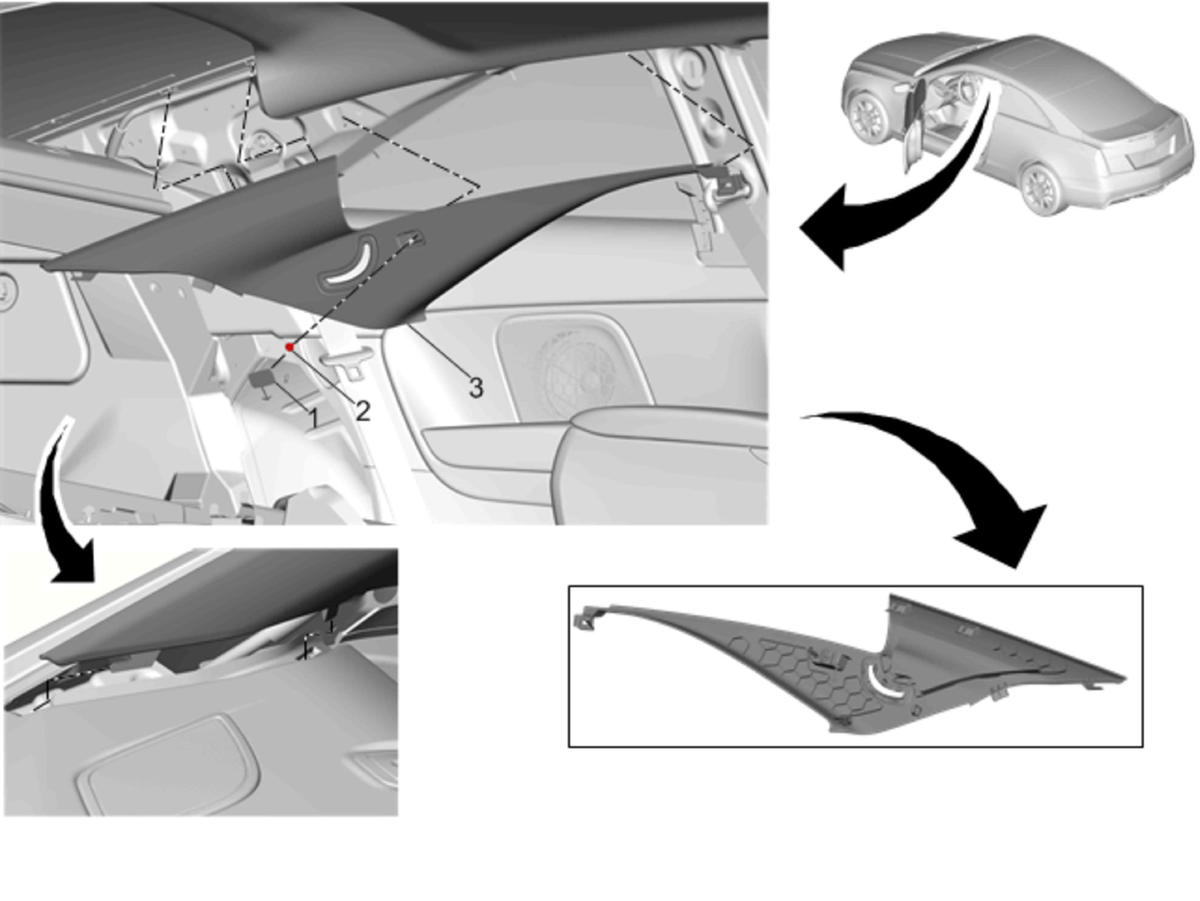

Fig 1: Quarter Window Trim Finish Panel Assembly (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Coupe) . Remove the rear seat belt anchor plate fastener. Refer to Rear Seat Belt Retractor Replacement . Fold the rear seat back cushion down. Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement (Coupe) .
1	Airbag Name Plate
2	Quarter Window Trim Finish Panel Fastener CAUTION: Refer to Fastener Caution .
3	Quarter Window Trim Finish Panel Assembly Procedure Use a trim tool or equivalent to aid in the removal.
