Quarter Upper Trim Panel Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

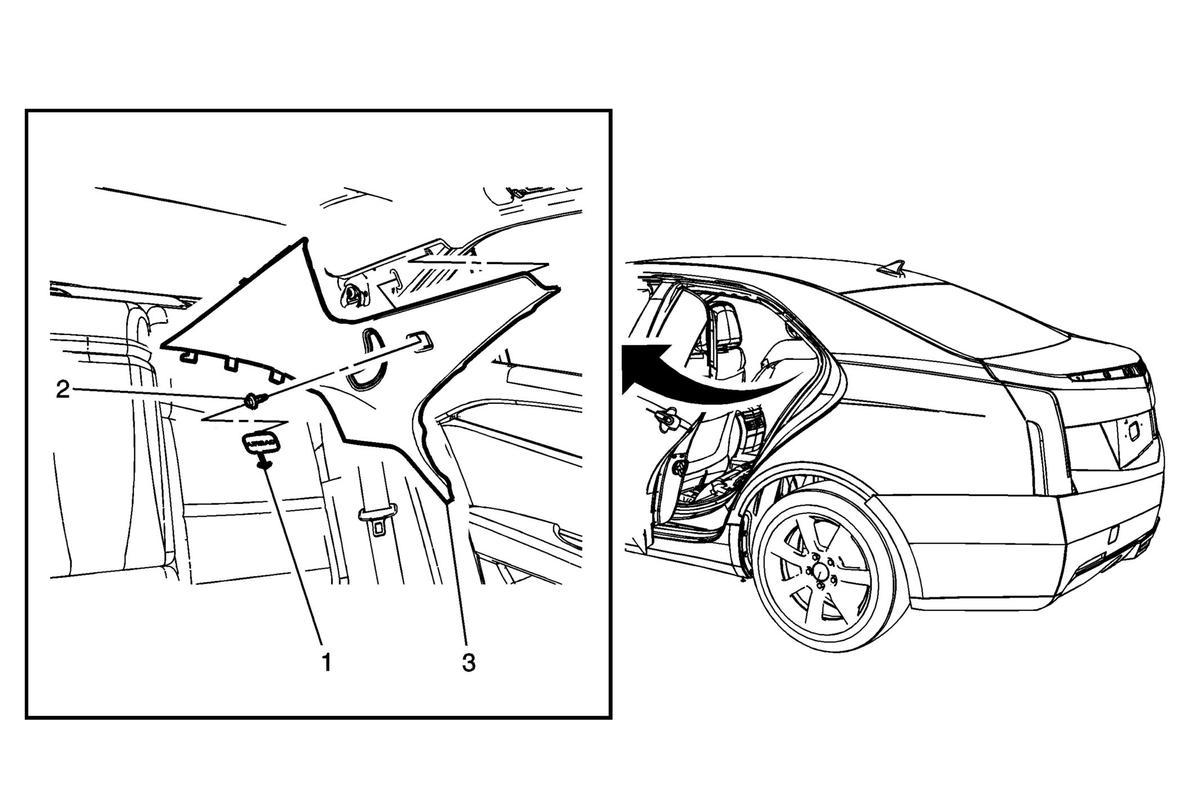

Fig 1: Quarter Upper Trim Panel Assembly
GM2834611Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan)Rear Seat Cushion Removal and Installation (Coupe) .
  2. Disable the SIR system. Refer to SIR Disabling and Enabling .
1 Inflatable Restraint Airbag Plate
2 Quarter Upper Trim Panel Fastener
CAUTION:

Refer to Fastener Caution .
3 Quarter Upper Trim Panel Assembly

Procedure

  1. Remove the seat belt anchor bolt.
  2. Disconnect the seat belt through the slot in the escutcheon opening.
