Front Bumper Fascia Replacement (Traverse)

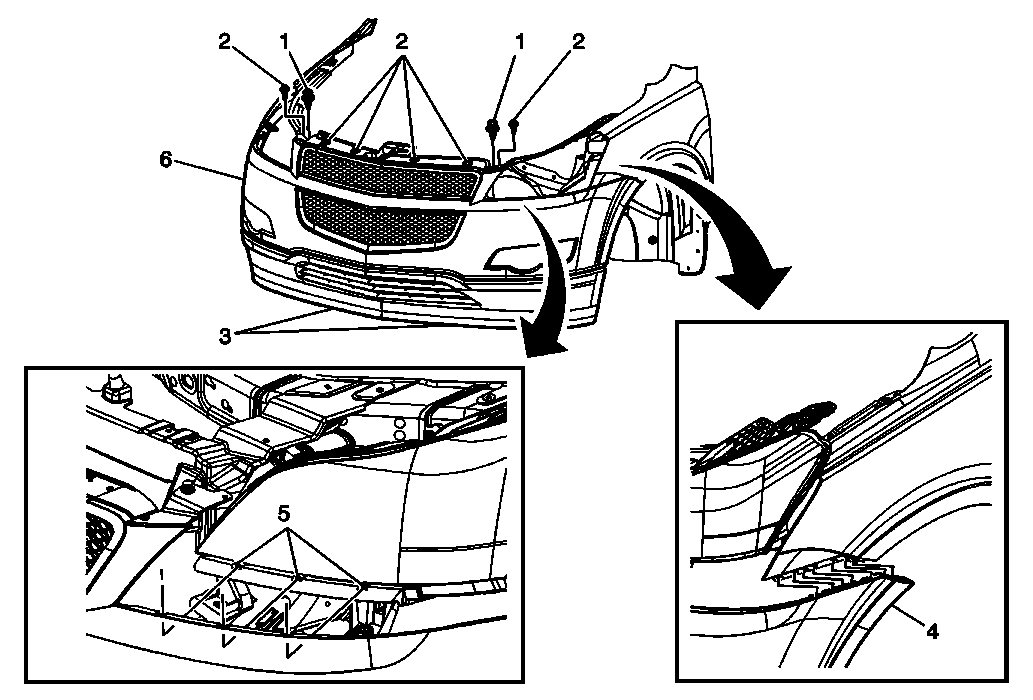

Fig 1: View Of Front Bumper Fascia & Components (Traverse)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement (Traverse) , Front Compartment Sight Shields Replacement (Acadia) , Front Compartment Sight Shields Replacement (Enclave) . Remove the front wheelhouse front liner. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) .
1	Front Bumper Fascia Push-Pin (Qty: 2)
2	Front Bumper Fascia Screw (Qty: 6) CAUTION: Refer to Fastener Caution . Procedure Remove the front bumper fascia screws. Tighten 6 N.m (53 lb in)
3	Front Bumper Lower Fascia Bolt (Qty: 2) Tighten 6 N.m (53 lb in)
4	Front Bumper Fascia Fender Tab TIP: Carefully push a small nylon wedge between the fascia and the fender. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the fascia from the fender.
5	Front Bumper Fascia Headlamp Bracket TIP: Carefully push a small nylon wedge between the fascia and the fender. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the fascia from the headlamp bracket.
6	Front Bumper Fascia Procedure Disconnect any electrical connectors. Transfer parts as needed.
