Front Compartment Sight Shields Replacement (Acadia)

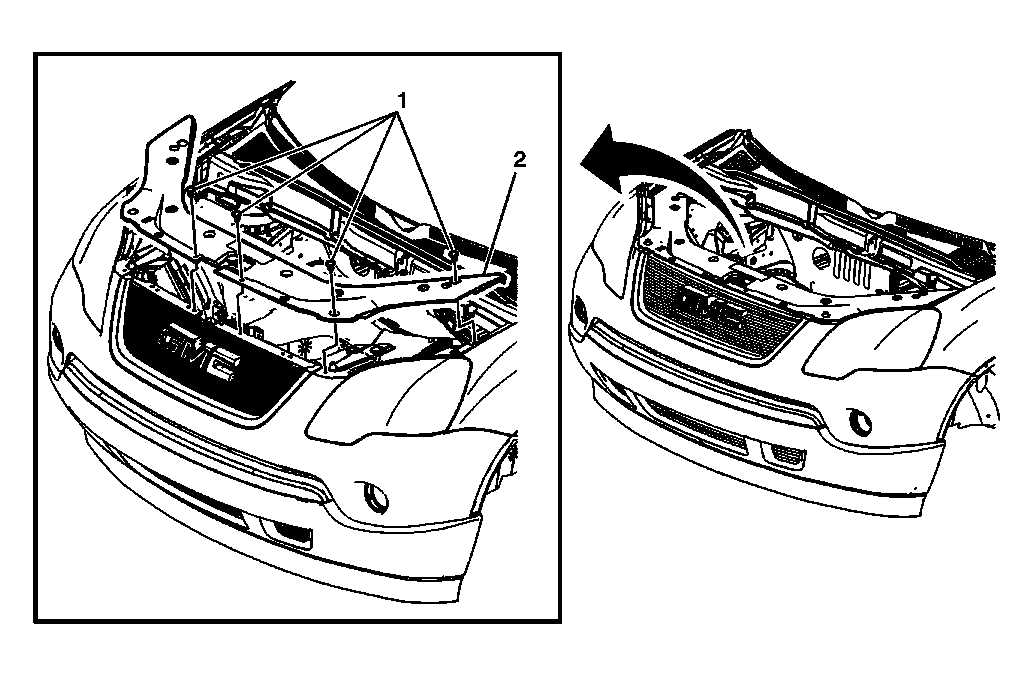

Fig 1: Identifying Front Compartment Sight Shields (Acadia)
GM1856453Courtesy of GENERAL MOTORS CORP.
Front Compartment Sight Shields Replacement (Acadia)

Callout Component Name
1 Front Compartment Front Sight Shield Plastic Retainer (Qty: 7)
2 Front Compartment Front Sight Shield
