Front Wheelhouse Front Liner Replacement (Enclave - Acadia)

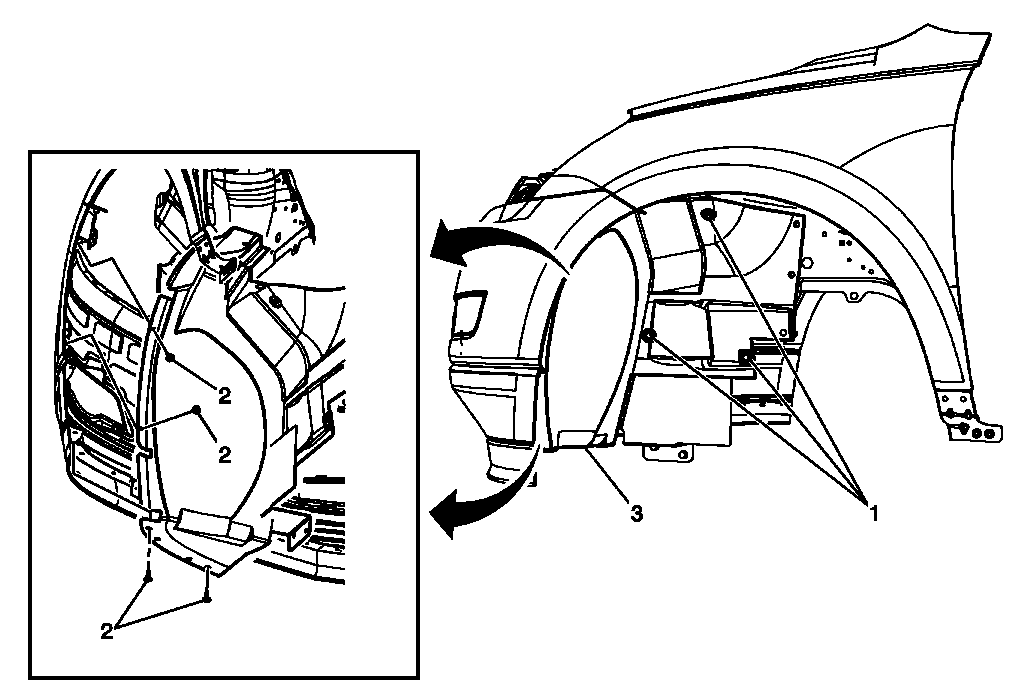

Fig 1: View Of Front Wheelhouse Front Liner (Enclave - Acadia)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front rear wheelhouse liner. Refer to Front Wheelhouse Rear Liner Replacement (Traverse) .
1	Front Wheelhouse Liner - Front (Qty: 5)
2	Front Wheelhouse Liner - Front Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
3	Front Wheelhouse Liner
