Front Compartment Sight Shields Replacement (Enclave)

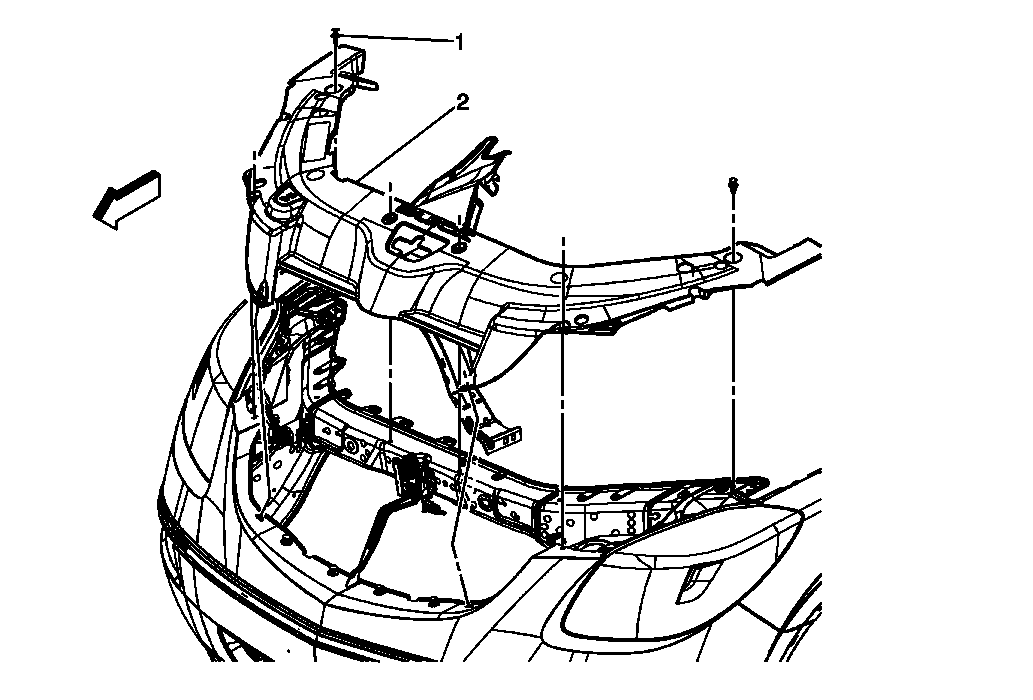

Fig 1: Identifying Front Compartment Sight Shields (Enclave)
GM1864292Courtesy of GENERAL MOTORS CORP.
Front Compartment Sight Shields Replacement (Enclave)

Callout Component Name
1 Front Compartment Sight Shield Plastic Retainers (Qty: 8)
2 Front Compartment Sight Shield
