Front Compartment Sight Shields Replacement (Traverse)

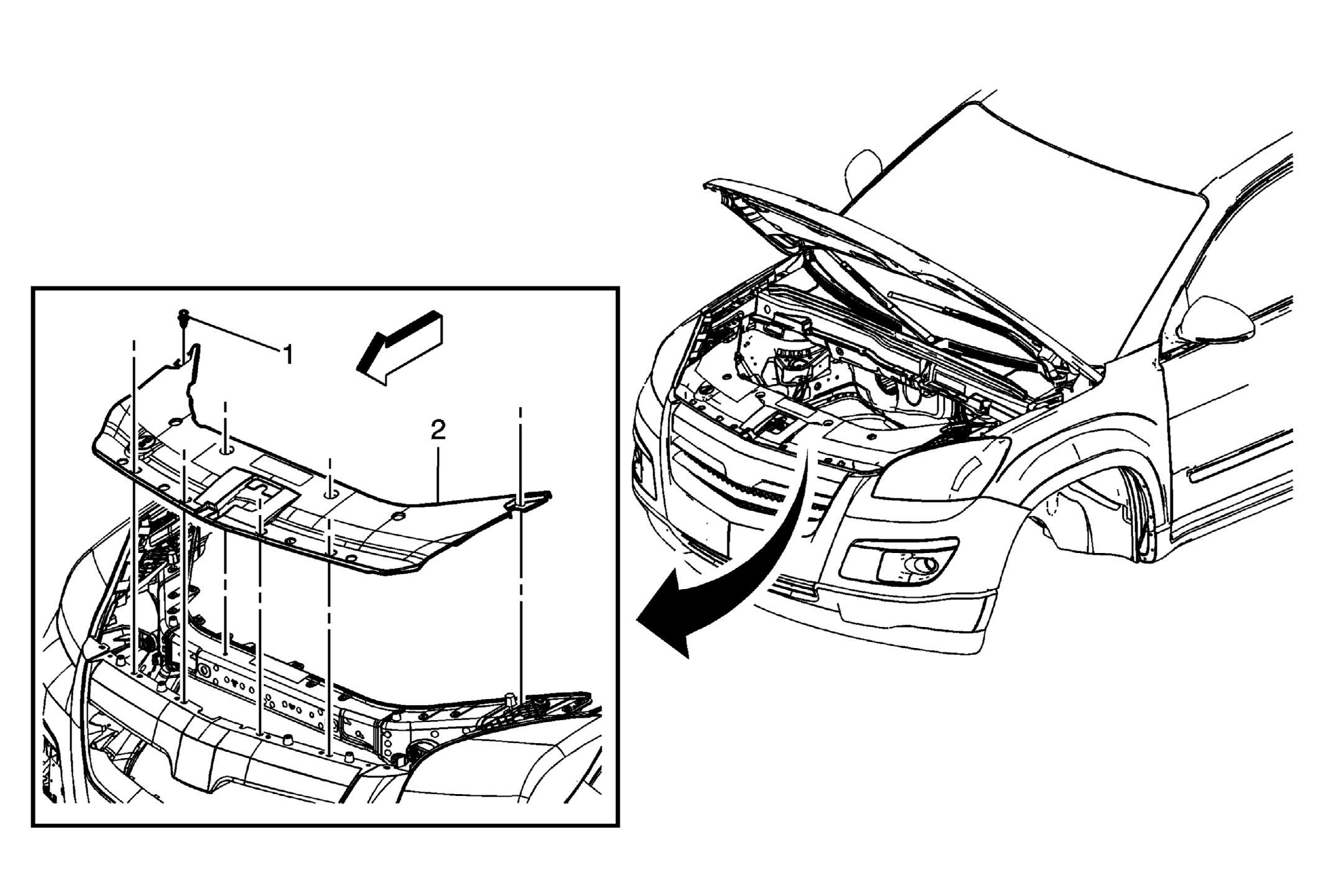

Fig 1: View Of Front Compartment Sight Shields (Traverse)
GM1847003Courtesy of GENERAL MOTORS CORP.
Front Compartment Sight Shields Replacement (Traverse)

Callout Component Name
1 Front Compartment Front Sight Shield Plastic Retainer (Qty: 7)
2 Front Compartment Front Sight Shield
