Front Bumper Fascia Replacement (Enclave)

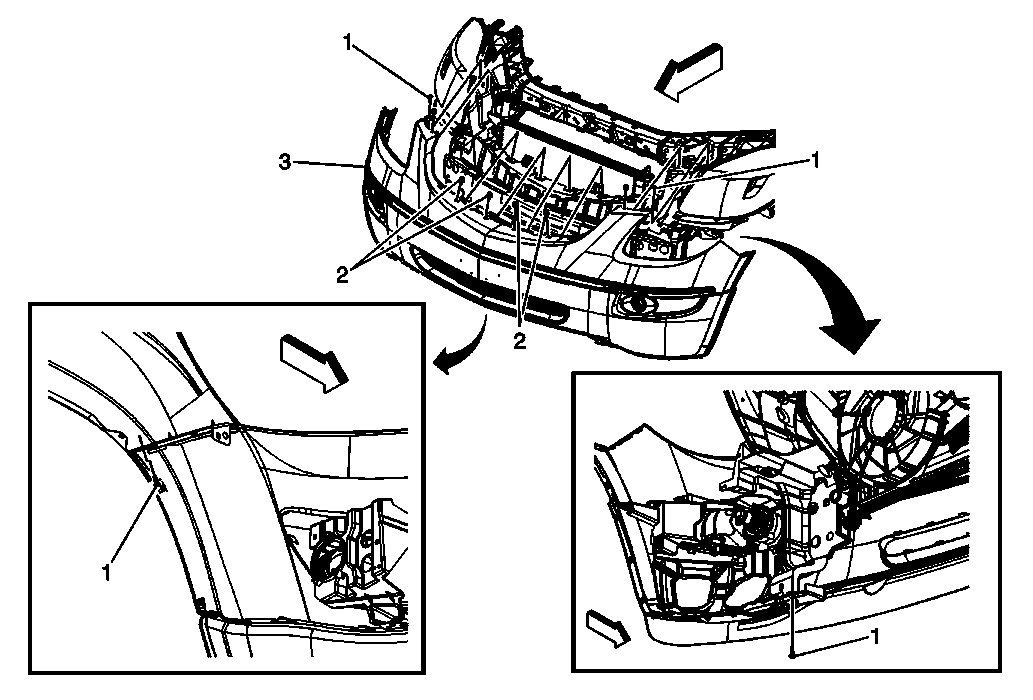

Fig 1: Identifying Front Bumper Fascia & Components (Enclave)
GM1864294Courtesy of GENERAL MOTORS CORP.
Front Bumper Fascia Replacement (Enclave)

Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement (Traverse) , Front Compartment Sight Shields Replacement (Acadia) , Front Compartment Sight Shields Replacement (Enclave) .
  3. Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Enclave - Acadia) , Front Wheelhouse Front Liner Replacement (Traverse) .
1 Front Fascia Bolt (Qty: 16)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Front Fascia Retainer (Qty: 4)
3 Front Fascia

Procedure

  1. Drill out the license plate bracket rivets, if equipped.
  2. Disconnect any electrical connectors.
  3. Transfer components as necessary.
  4. Pull forward to remove the front bumper fascia.
