Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

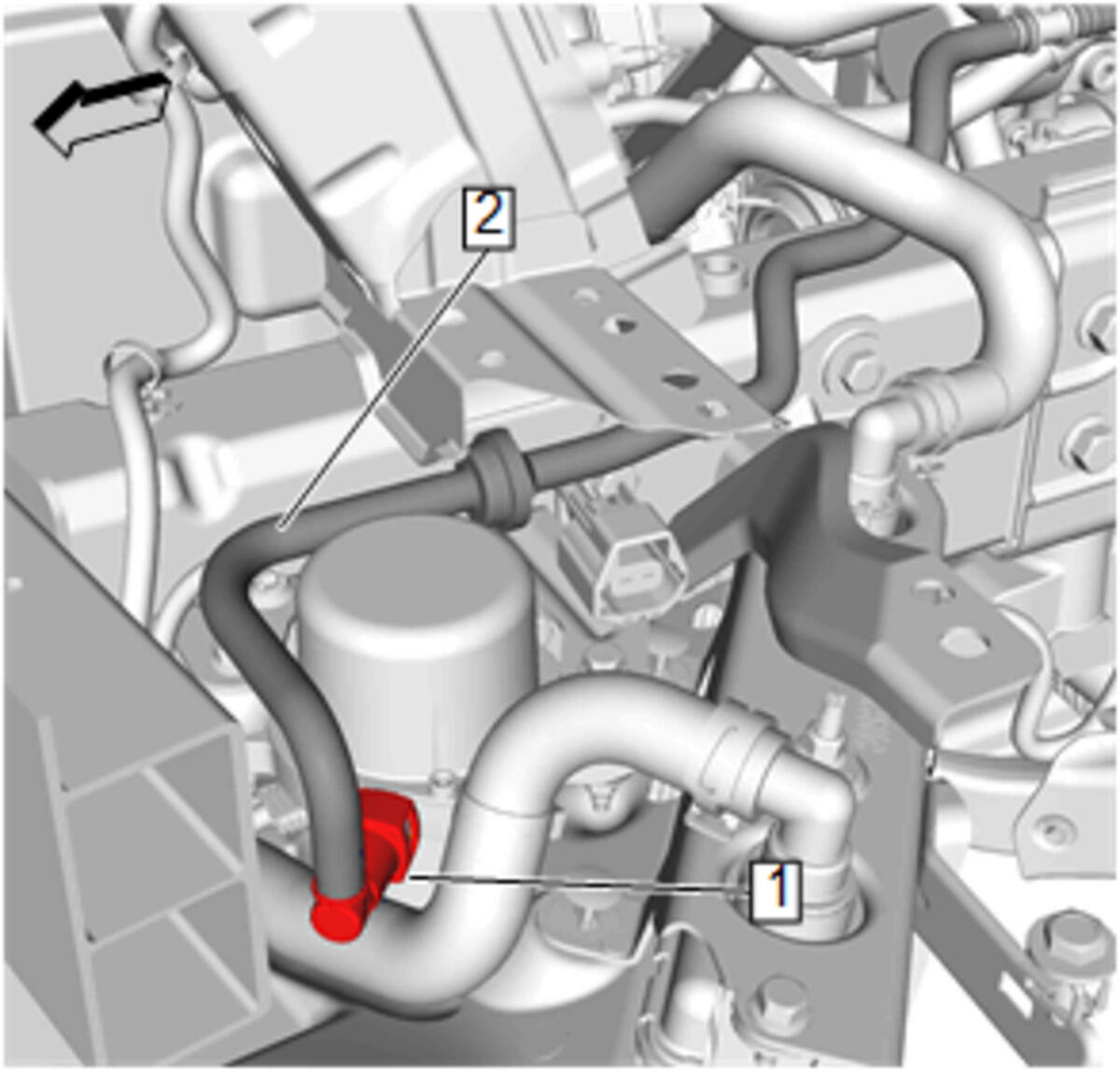

Power Brake Booster Vacuum Pipe (2) - Install

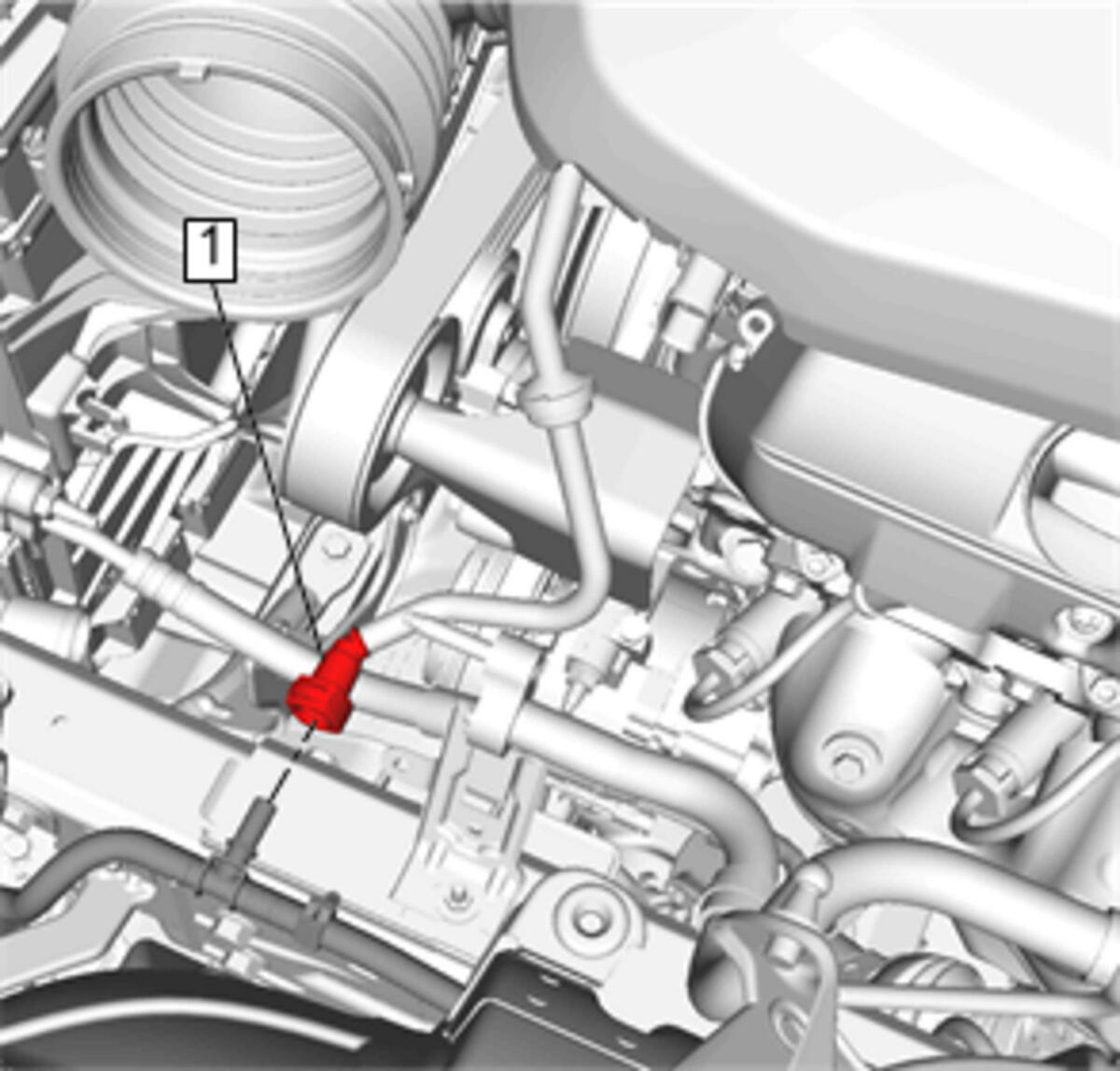

Quick Connect Fitting (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

Front Fender Front Brace - Install - Front Fender Front Brace Replacement
Courtesy of GENERAL MOTORS COMPANY

Headlamp - Install - Front Headlamp Replacement (HID, ZL1)Front Headlamp Replacement (LED, Uplevel)Front Headlamp Replacement (LED, Base)
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Install
Radiator Air Side Baffle - Left Side - Install - Radiator Air Side Baffle Replacement - Left Side (LGX LTG)Radiator Air Side Baffle Replacement - Left Side (LT1)Radiator Air Side Baffle Replacement - Left Side (LT4)
Courtesy of GENERAL MOTORS COMPANY

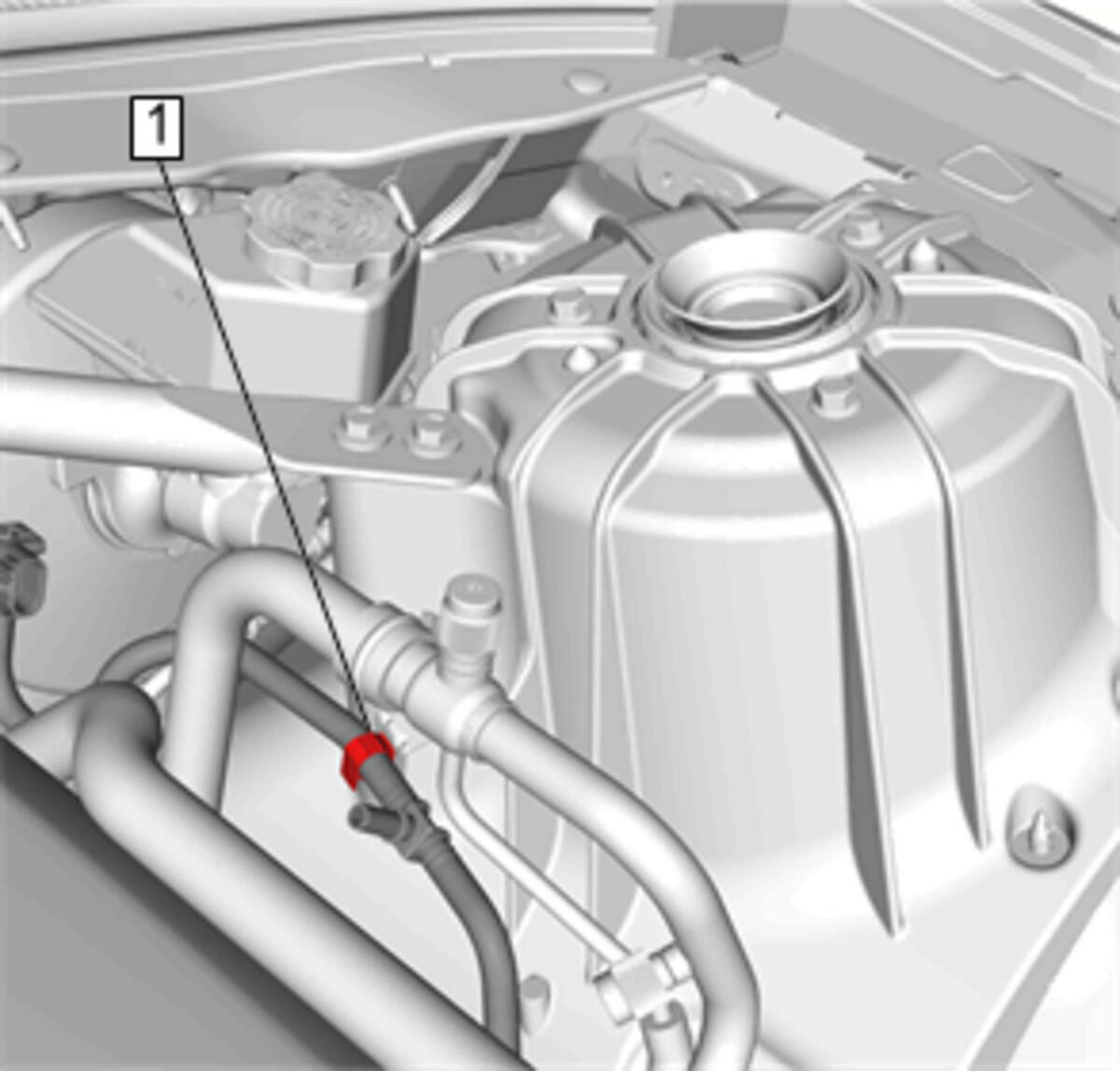

Quick Connect Fitting (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

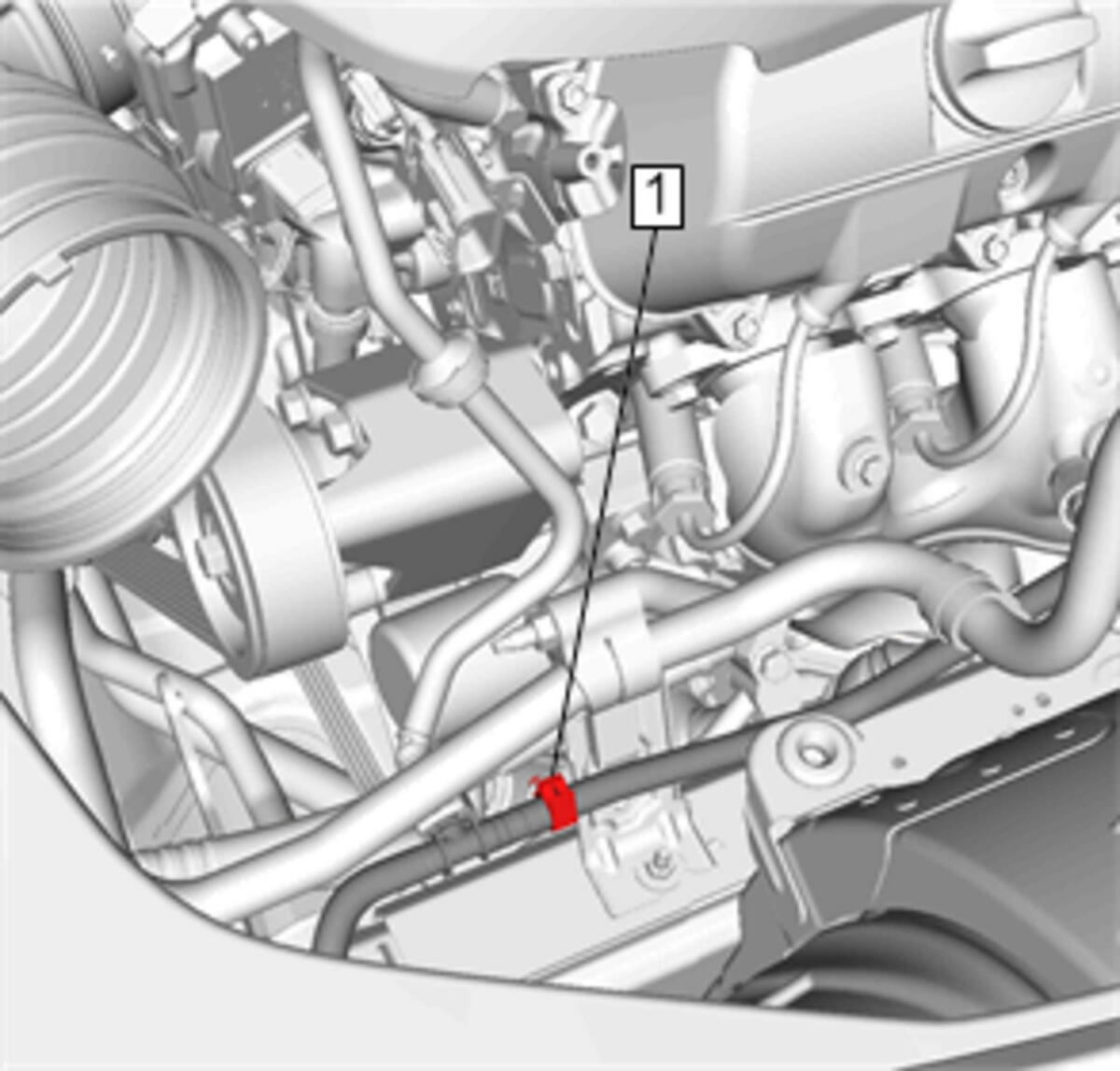

Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Retainer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
A small amount of denatured alcohol may be used to ease assembly.

Power Brake Booster Vacuum Sensor (1) - Install
Connect the power brake booster vacuum sensor electrical connector.
Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement (LT1)Air Cleaner Assembly Replacement (LT4)
