Radiator Air Side Baffle Replacement - Left Side (LT1)

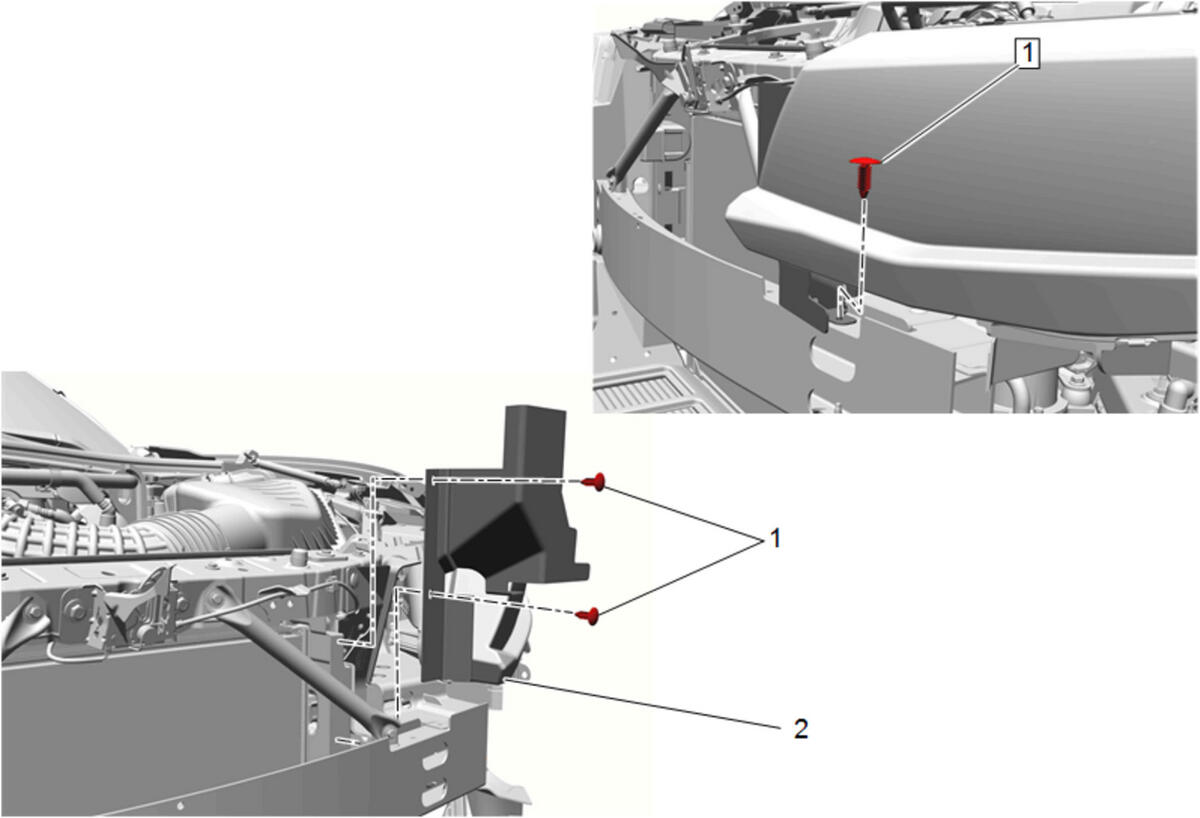

GM4213901Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement (Base, Uplevel) , or Front Bumper Fascia Replacement (ZL1) , or Front Bumper Fascia Replacement (SS)
1 Radiator Air Side Baffle Retainer [3x]
2 Radiator Air Side Baffle - Left Side
