Installation Procedure

  1. GM5363118Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, position the instrument carrier (1) in the vehicle.

  2. Reposition the instrument panel wiring harness into the vehicle position as was noted in the removal and connect the fasteners securing the instrument panel wiring harness to the instrument carrier.
  3. GM5420445Courtesy of GENERAL MOTORS COMPANY

    Retainer (3) - Install

  4. Wiring Harness Connector (2) - Disconnect
  5. Retainer (1) - Install [3x]
  6. GM5420444Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install

  7. {If equipped} Wiring Harness Connector (2) - Connect
  8. GM5420443Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install [2x]

  9. GM5253630Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Connector (1) - Connect [2x]

  10. GM5318113Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

    Instrument Panel Airbag Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)

  11. Wiring Harness Connector (2) - Connect [2x]
  12. GM5318112Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

  13. Instrument Panel Compartment Door Latch Striker Bolt (2) - Install and tighten 9 N.m (80 lb in)
  14. GM5318111Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

  15. GM5318110Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [3x] 2.5 N.m (22 lb in)

  16. GM5249798Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Wiring Harness Connector Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

  17. GM5318109Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten [6x] 2.5 N.m (22 lb in)

  18. GM5318108Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

  19. GM5219064Courtesy of GENERAL MOTORS COMPANY

    Daytime Running Lamp Ambient Light Bezel (1) - Install - Daytime Running Lamp Ambient Light Bezel Replacement

  20. GM5318062Courtesy of GENERAL MOTORS COMPANY

    Forward Collision Alert Display Bezel (1) - Install - Forward Collision Alert Display Bezel Replacement

  21. GM5170993Courtesy of GENERAL MOTORS COMPANY

    Turn Signal Switch (1) - Install - Turn Signal Switch Replacement

  22. GM5171014Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper and Washer Switch (1) - Install - Windshield Wiper and Windshield Washer Switch Replacement

  23. GM5171370Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel (1) - Install - Steering Wheel Replacement

  24. GM5317294Courtesy of GENERAL MOTORS COMPANY

    Instrument Cluster (2) - Install - Instrument Cluster Replacement

  25. GM5161768Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover (2) - Install - Instrument Panel Steering Column Lower Trim Cover Replacement

  26. GM5362115Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (1) - Install - Instrument Panel Lower Center Trim Panel Replacement

  27. GM5314314Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Storage Tray (2) - Install - Front Floor Console Stowage Tray Replacement

  28. GM5165360Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Replacement

  29. GM5164759Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel-Left Side (2) - Install - Front Floor Console Extension Panel Replacement - Left Side

  30. GM5164760Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel-Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side

  31. GM5313661Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique-Both Sides (1) - Install - Front Floor Console Applique Replacement  [2x]

  32. GM5313189Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Accessory Bezel (1) - Install - Instrument Panel Accessory Bezel Replacement (UST) , or Instrument Panel Accessory Bezel Replacement (MCR)

  33. GM5314458Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement

  34. GM5312426Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (2) - Install - Instrument Panel Center Trim Plate Applique Replacement

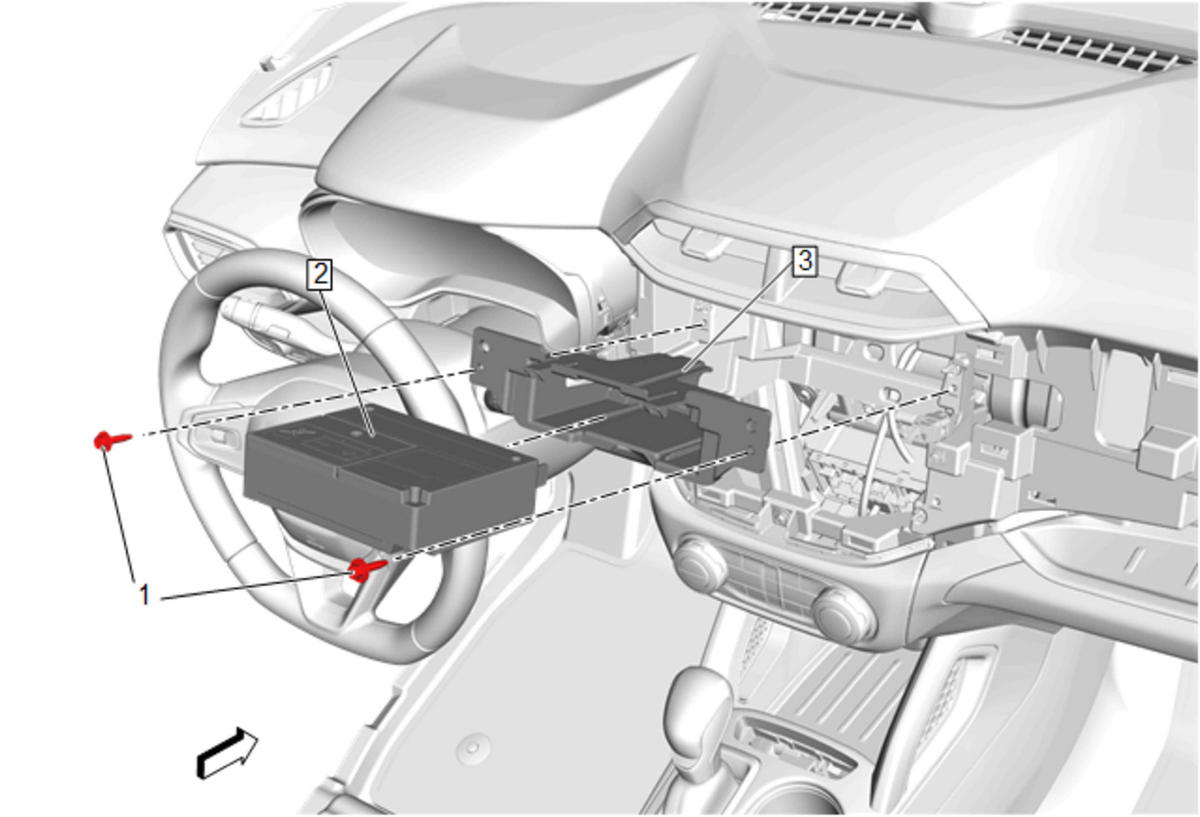

  35. GM5312448Courtesy of GENERAL MOTORS COMPANY

    Communication Interface Module Bracket (3) - Install - Communication Interface Module Bracket Replacement (8 Inch Display) .

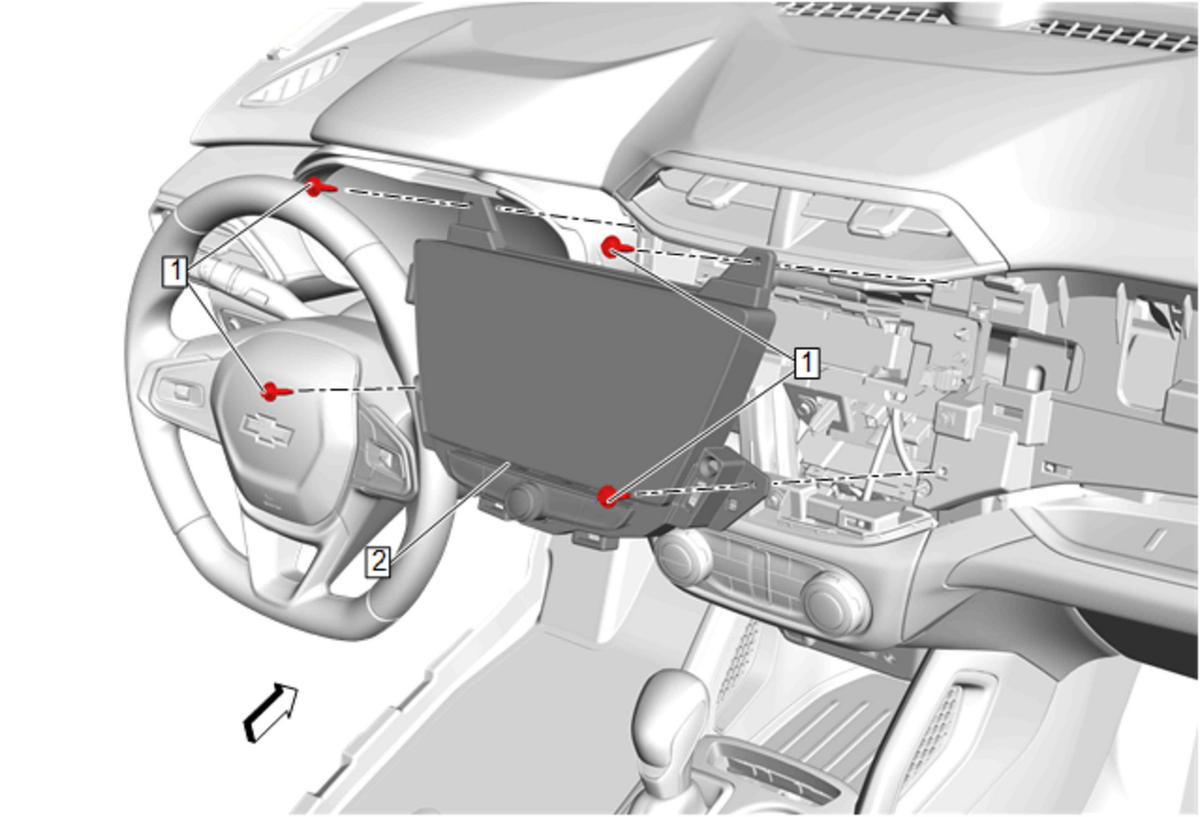

  36. GM5312124Courtesy of GENERAL MOTORS COMPANY

    Radio Control (2) - Install - Radio Control Assembly Replacement

  37. GM5362080Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement

  38. GM5361415Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Passenger Side (2) - Install - Instrument Panel Lower Airbag Replacement - Passenger Side

  39. GM5361421Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (3) - Install - Instrument Panel Lower Trim Panel Insulator Replacement

  40. GM5312458Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install - Instrument Panel Trim Plate Applique Replacement

  41. GM5312964Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Tray Liner (1) - Install - Instrument Panel Compartment Tray Liner Replacement

  42. GM5312083Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Right Side (1) - Install - Instrument Panel Trim Pad Replacement - Right Side

  43. GM5249727Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Right Side (1) - Install - Instrument Panel Outer Trim Cover Replacement - Right Side

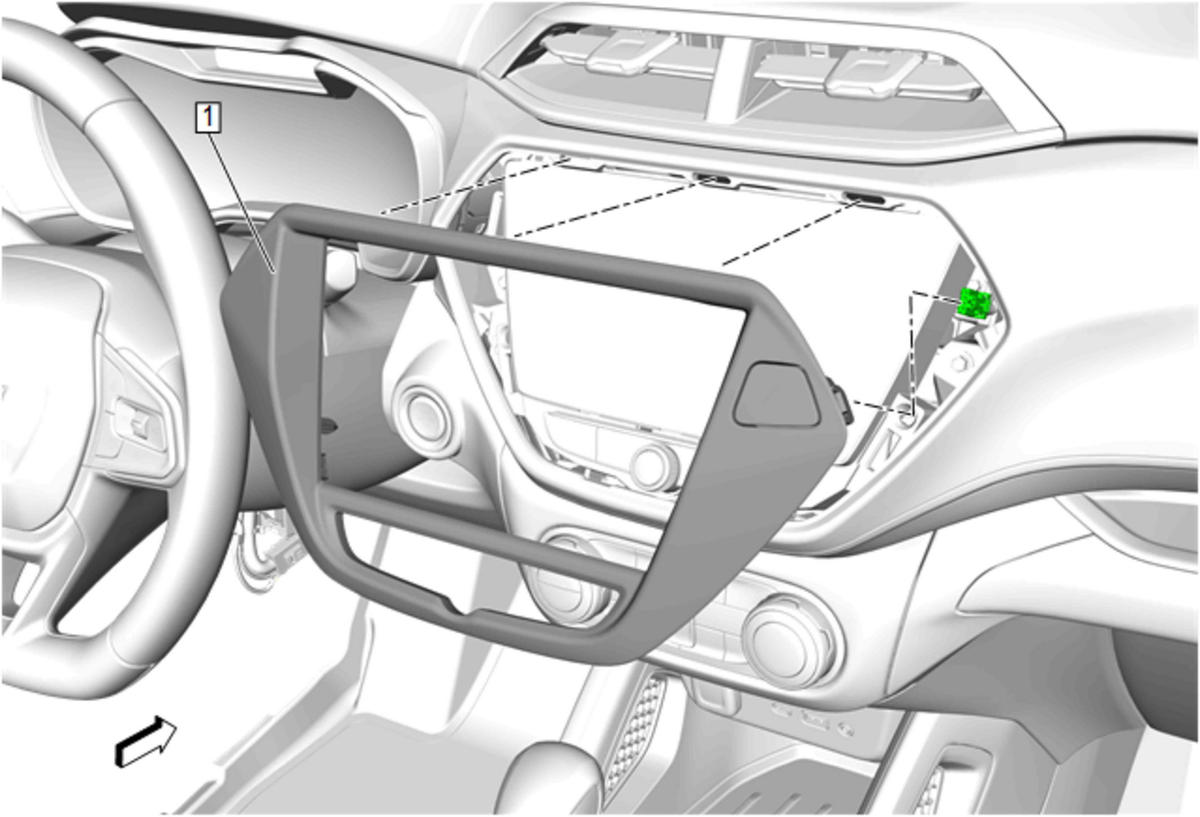

  44. GM5311527Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate (1) - Install - Instrument Panel Trim Plate Replacement (8 Inch Display with IOR, IOS)

  45. GM5366445Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet (1) - Install - Instrument Panel Center Air Outlet Replacement

  46. GM5311421Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad - Left Side (2) - Install - Instrument Panel Steering Column Upper Trim Cover Replacement

  47. GM5317243Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Upper Trim Cover (1) - Install - Instrument Panel Steering Column Upper Trim Cover Replacement

  48. GM5311451Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Plate Applique (1) - Install - Instrument Panel Lower Center Trim Plate Applique Replacement

  49. GM5311391Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Switch Trim Plate (2) - Install - Instrument Panel Switch Trim Plate Replacement

  50. GM5311388Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement

  51. GM5209005Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Sill Garnish Molding (2)- Left Side - Install - Front Side Door Sill Garnish Molding Replacement

  52. GM5153389Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install - Instrument Panel Outer Trim Cover Replacement - Left Side

  53. GM5163411Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding (1) - Both Sides - Install - Windshield Garnish Molding Replacement

  54. Enable the SIR System. SIR Disabling and Enabling
