Instrument Panel Accessory Bezel Replacement (UST)

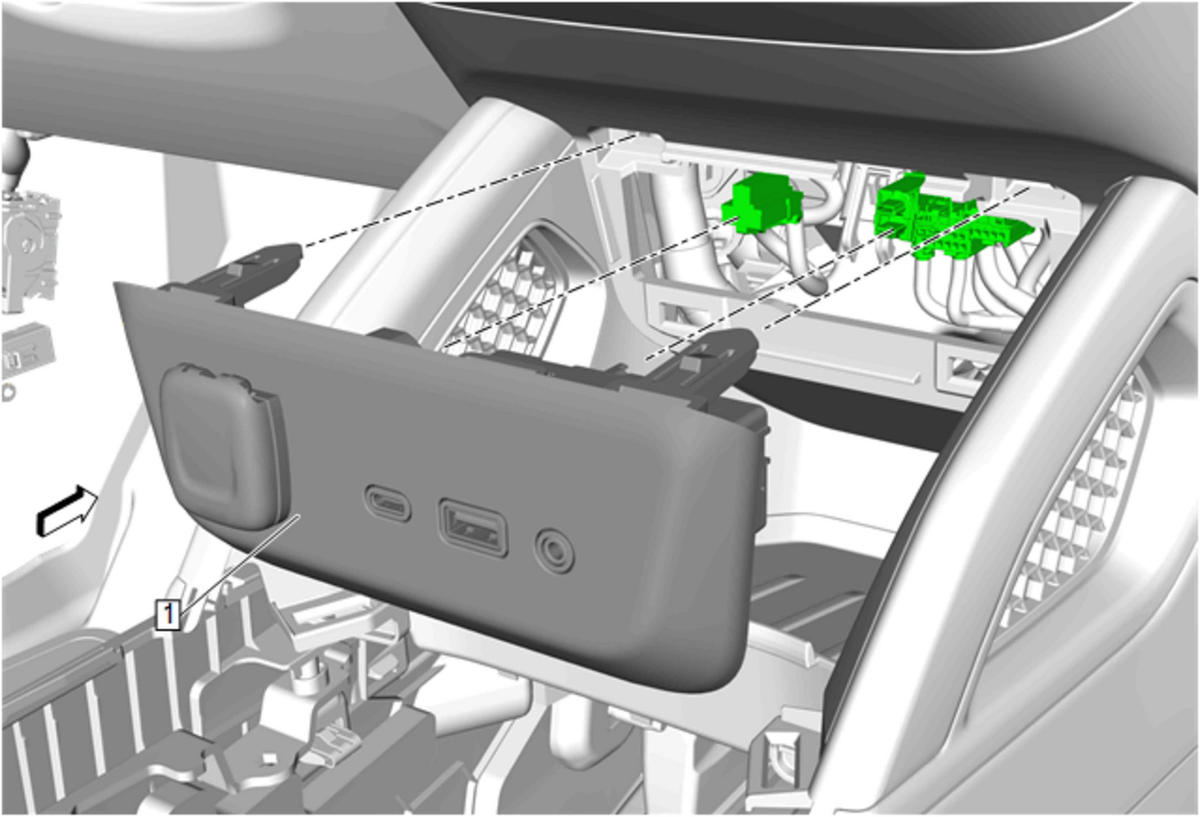

GM5313188Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Accessory Bezel

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect all electrical connectors.
  3. Transfer components as necessary.
