Heater and Air Conditioning User Interface Control Replacement

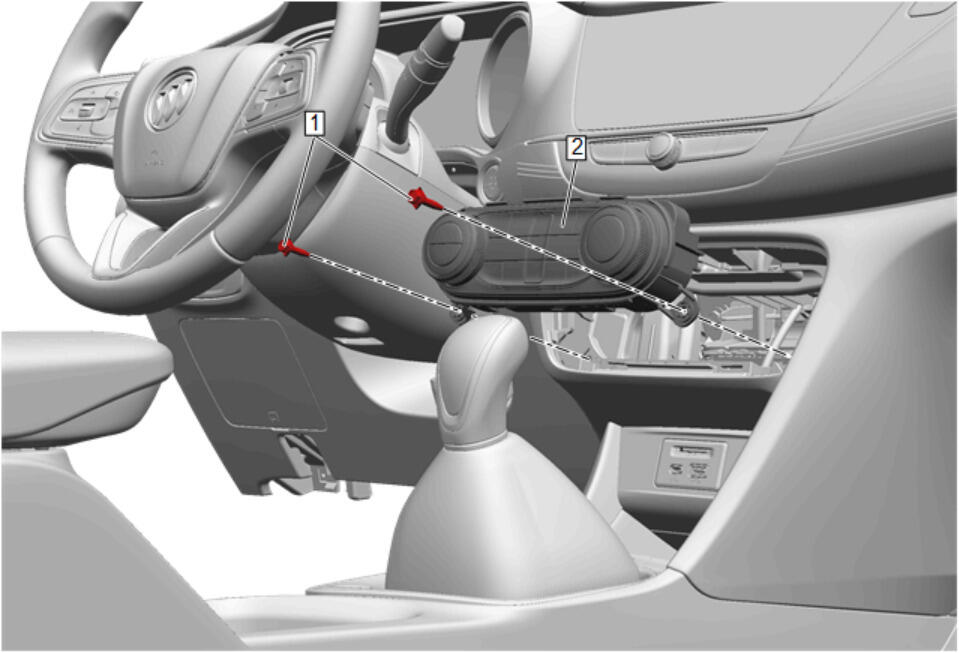

GM5245712Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Center Trim Plate Applique Replacement
1 Heater and Air Conditioning User Interface Control Bolt
CAUTION:

Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Heater and Air Conditioning User Interface Control
Procedure
Disconnect the electrical connector.
