Installation Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

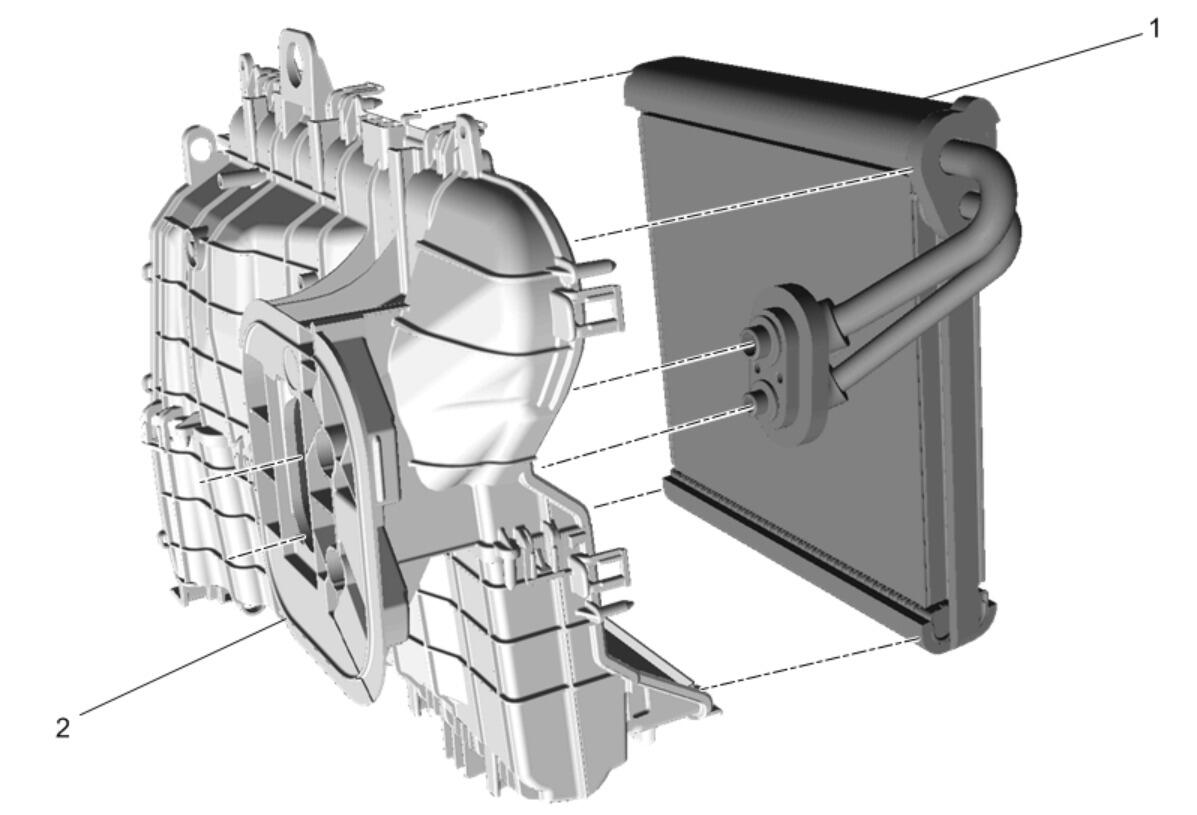

Air Conditioning Evaporator (1) @ Heater and Air Conditioning Evaporator Case (2) - Install
Courtesy of GENERAL MOTORS COMPANY

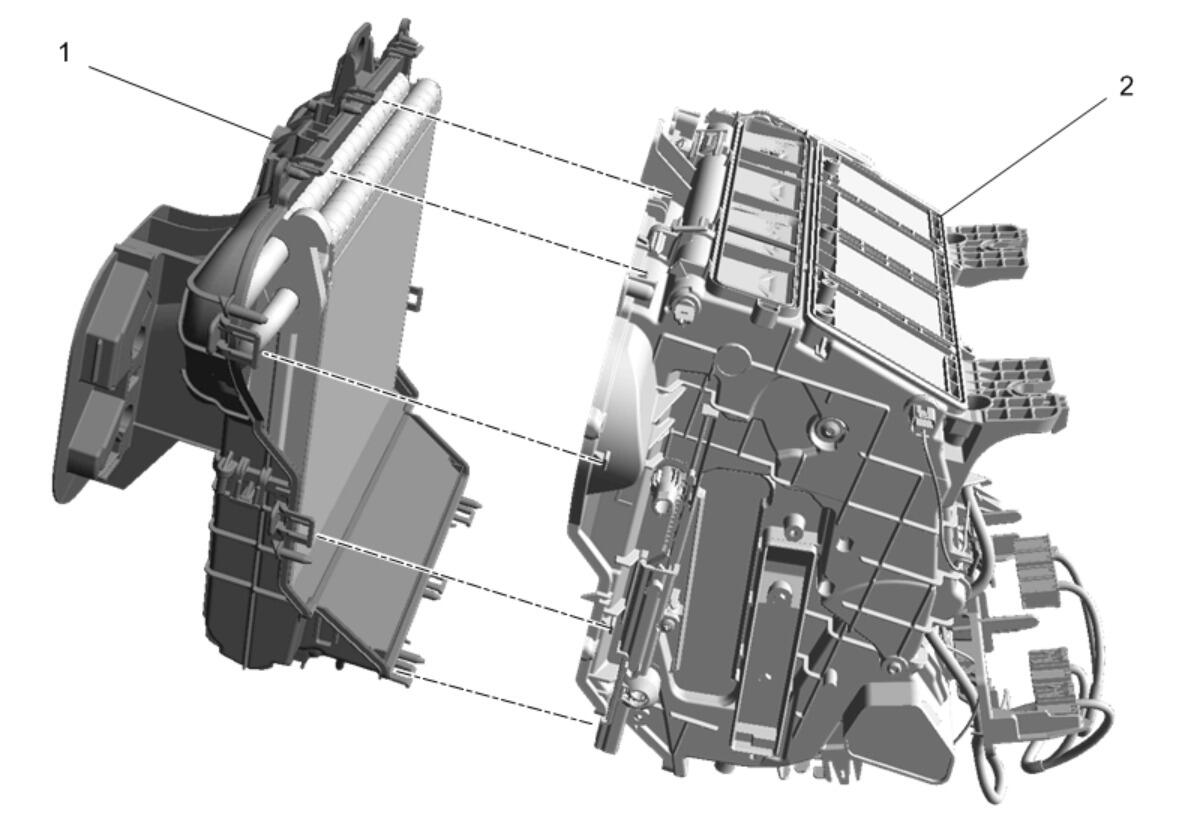

Install the air conditioning evaporator case (1) onto the air distributor case (2).
Courtesy of GENERAL MOTORS COMPANY

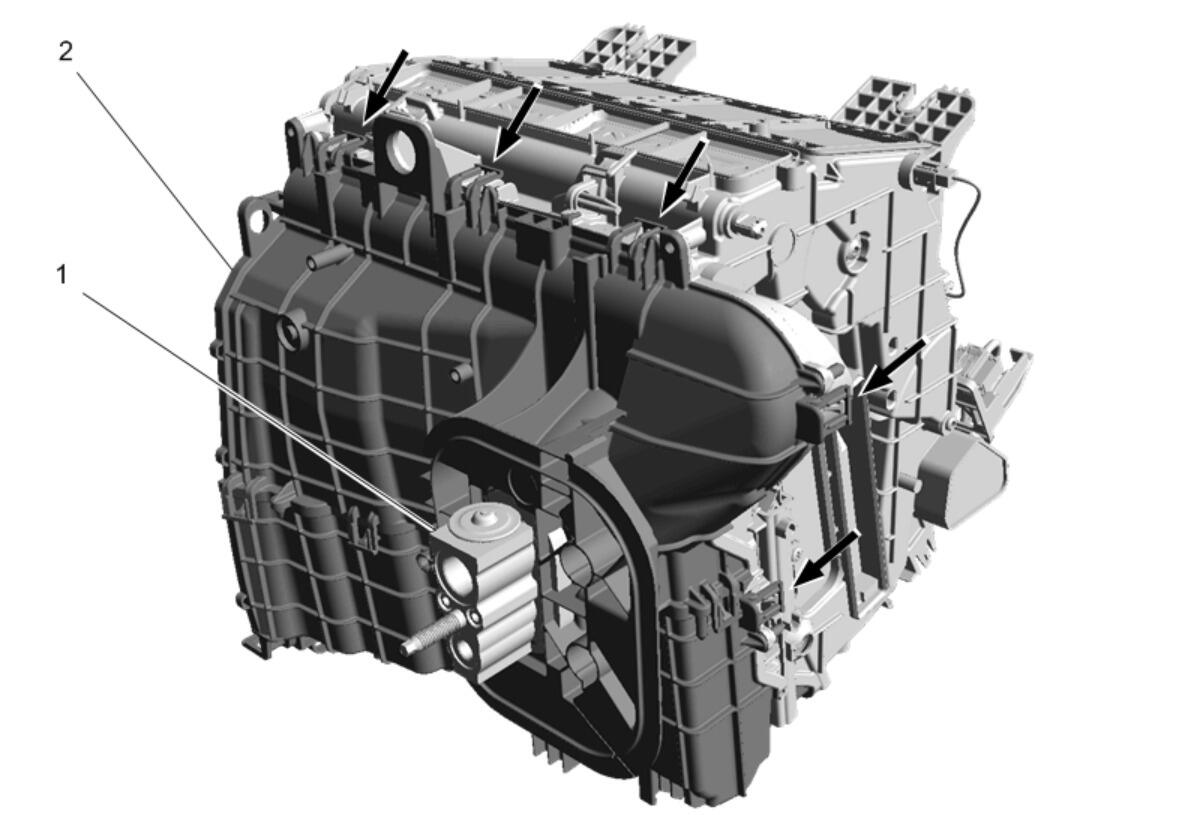

Latch the air conditioning evaporator case (1) onto the air distributor case indicated by the arrows.
Courtesy of GENERAL MOTORS COMPANY

Latch the air conditioning evaporator case (2) onto the air distributor case indicated by the arrows.
Air Conditioning Evaporator Thermal Expansion Valve (1) - Install - Air Conditioning Evaporator Thermal Expansion Valve Replacement
Courtesy of GENERAL MOTORS COMPANY

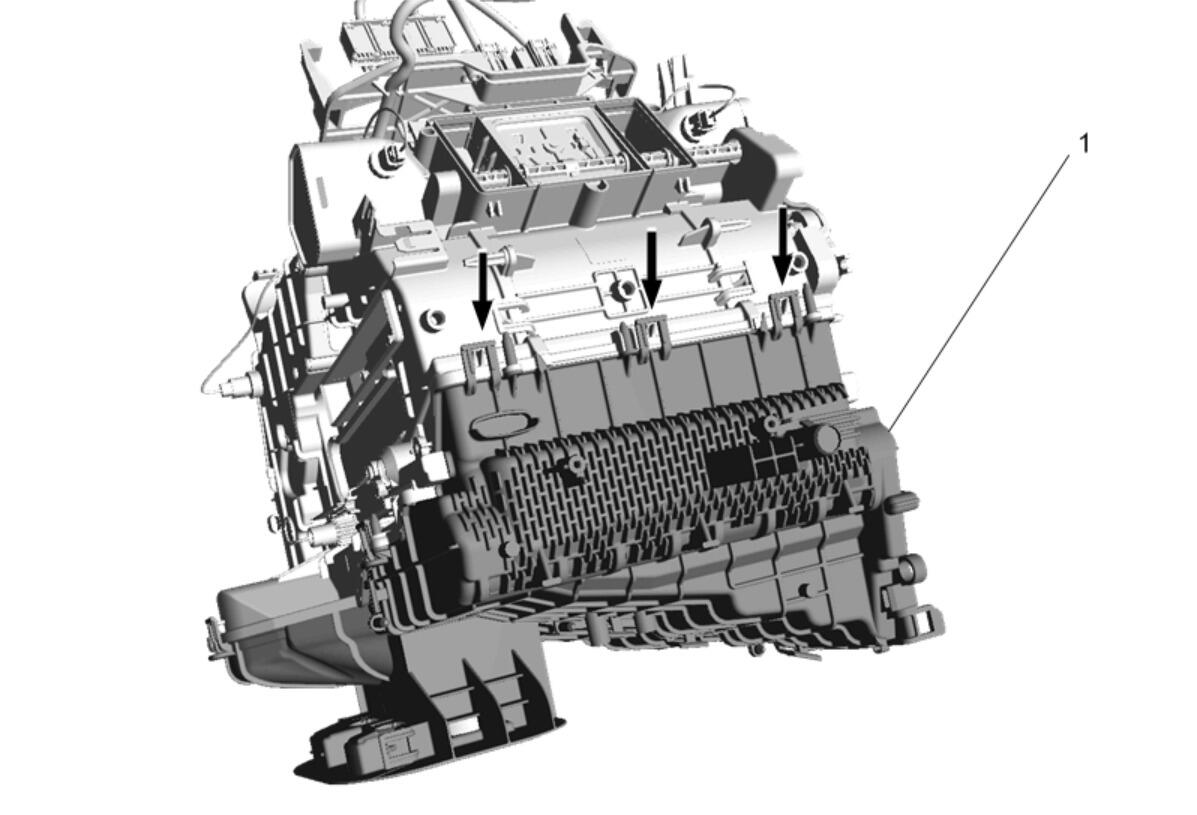

Latch the heater and air conditioning evaporator and blower case (1) onto the air conditioning evaporator case indicated by the arrows.
Air Conditioning Wiring Harness - Connect as necessary
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Heater and Air Conditioning Evaporator and Blower Module Screw (1) - Install and tighten 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

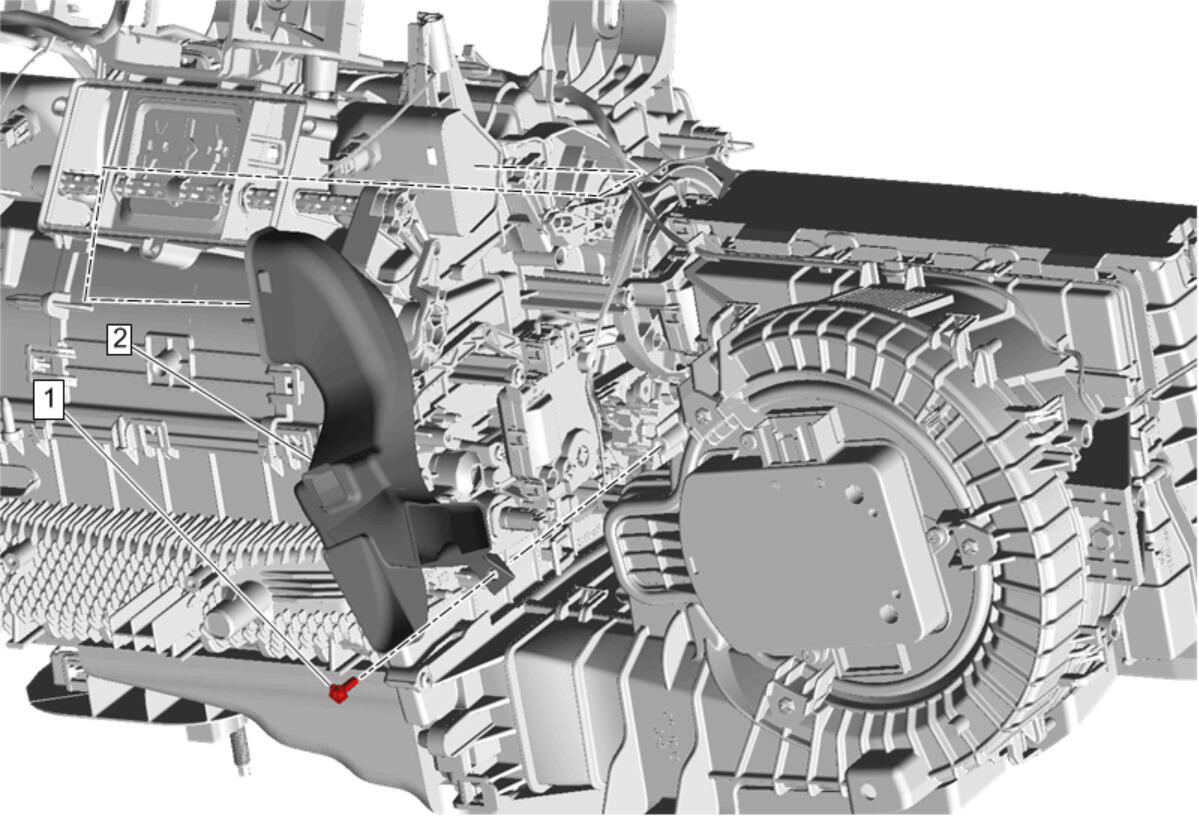

Floor Front Air Outlet Duct - Right Side (2) - Install
Floor Front Air Outlet Duct Bolt (1) - Install and tighten 1.5 N.m (13 lb in)
Courtesy of GENERAL MOTORS COMPANY

Heater and Air Conditioning Evaporator and Blower Module Screw (2) - Install and tighten [2x] 2.5 N.m (22 lb in)
Attach the heater and air conditioning evaporator and blower module insulator (1) to the heater and air conditioning evaporator and blower module.
Courtesy of GENERAL MOTORS COMPANY

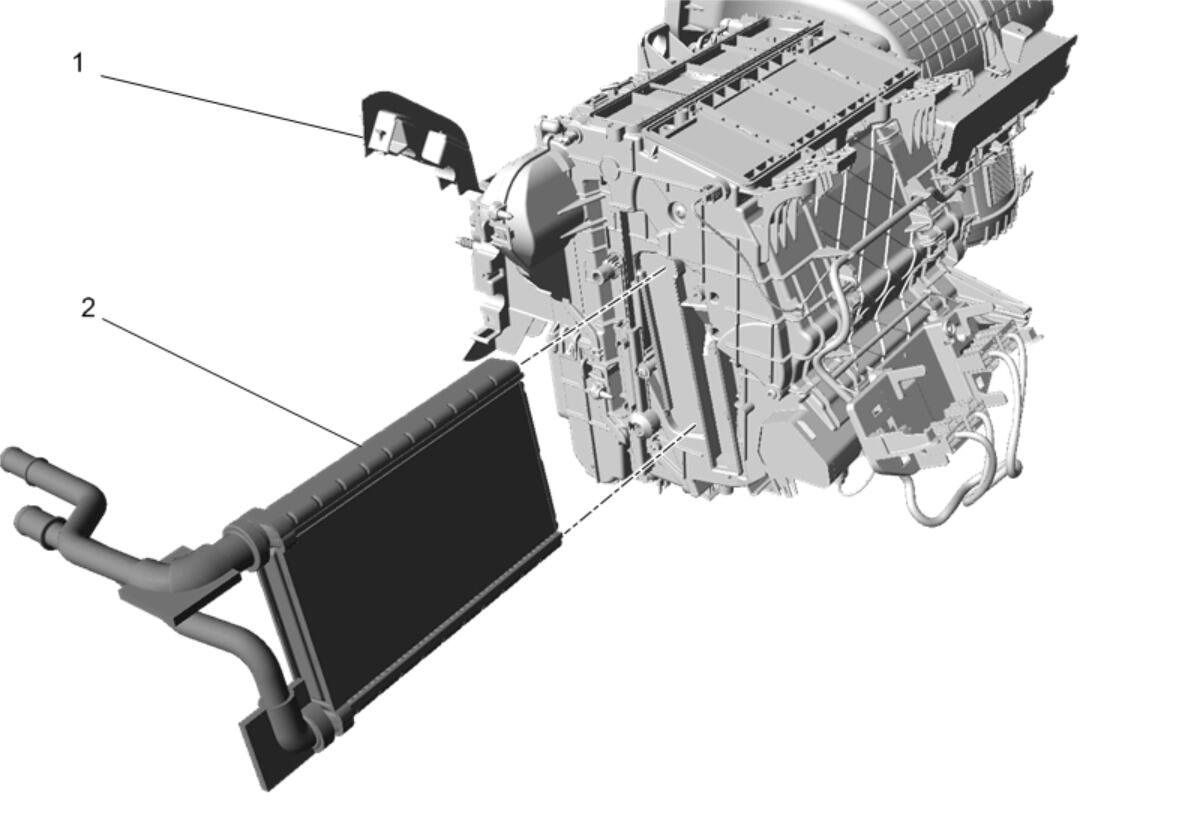

Heater Core (2) - Install
Rotate the heater core tube bracket (1) down and latch.
Courtesy of GENERAL MOTORS COMPANY

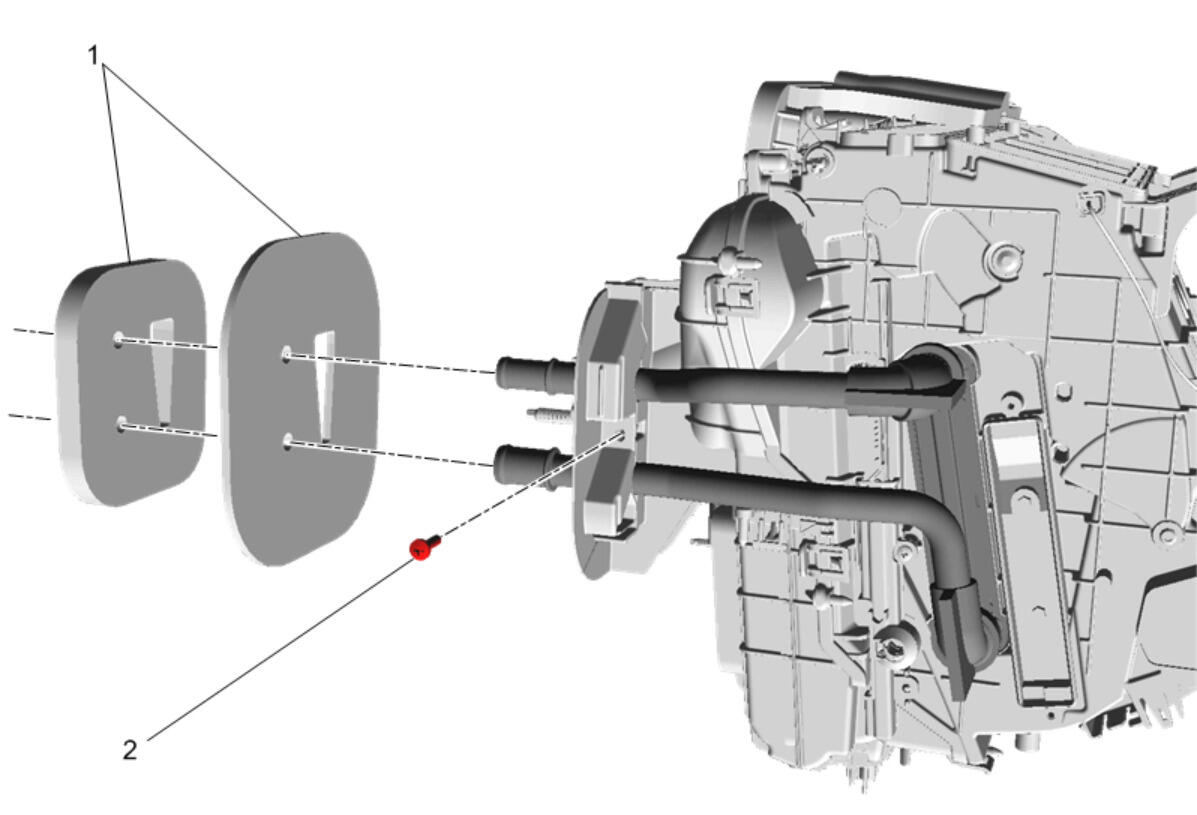

Heater and Air Conditioning Evaporator and Blower Module Screw (2) - Install and tighten 2.5 N.m (22 lb in)
Heater And Air Conditioning Evaporator Tube Seal (1) - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Position the heater and air conditioning evaporator and blower module (1) into the vehicle and temporarily support it.
Courtesy of GENERAL MOTORS COMPANY

Brake and Accelerator Pedal Assembly (1) - Install - Brake and Accelerator Pedal Assembly Replacement (Without HP4) , or Brake and Accelerator Pedal Assembly Replacement (With HP4)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Tie Bar (2) - Install - Instrument Panel Tie Bar Replacement (without J71) , or Instrument Panel Tie Bar Replacement (with J71)
Courtesy of GENERAL MOTORS COMPANY

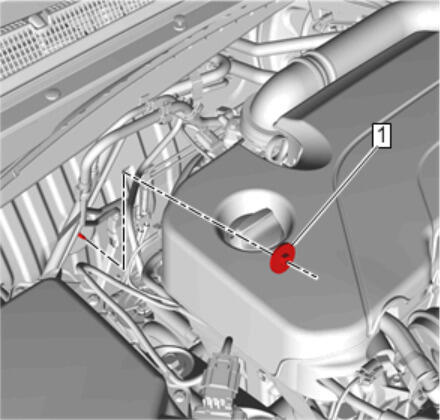

From within the engine compartment, install the heater and air conditioning evaporator and blower module nut (1) securing the heater and air conditioning evaporator and blower module to the cowl panel, and tighten to 9 N.m (80 lb in).
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Air Front Duct (1) - Install - Front Floor Console Rear Air Front Duct Replacement (Front Adapter)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Compartment Air Duct (2) - Install - Instrument Panel Compartment Air Duct Replacement (K4C)
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Evaporator and Blower Module Drain Hose (1) - Install - Air Conditioning Evaporator and Blower Module Drain Hose Replacement
Courtesy of GENERAL MOTORS COMPANY

Floor Rear Air Outlet Duct Adapter (1) - Right Side - Install - Floor Rear Air Outlet Duct Adapter Replacement (Right Side)
Courtesy of GENERAL MOTORS COMPANY

Floor Rear Air Outlet Duct Adapter (1) - Left Side - Install - Floor Rear Air Outlet Duct Adapter Replacement (Left Side)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Air Outlet Duct (1) - Install
Wiring Harness Retainer@Instrument Panel Center Air Outlet Duct - Connect
Courtesy of GENERAL MOTORS COMPANY

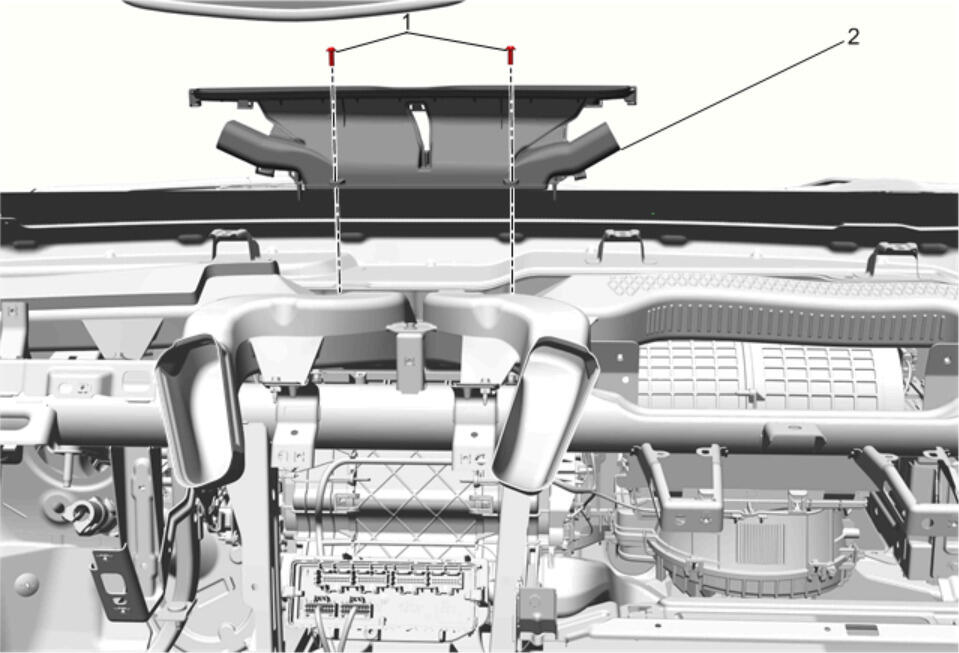

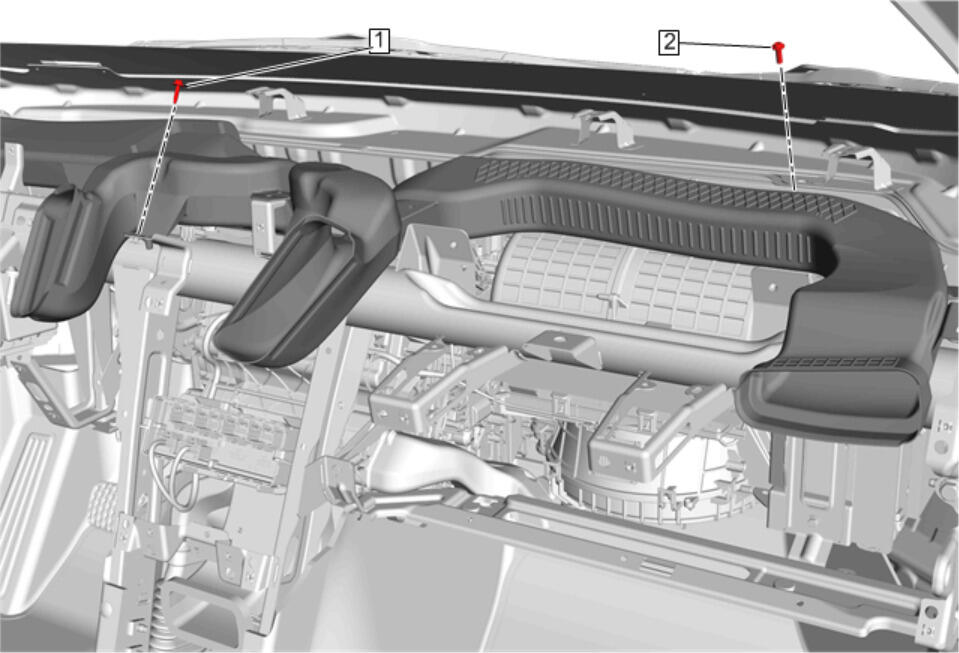

Instrument Panel Center Air Outlet Duct Bolt (2) - Install and tighten 1.5 N.m (13 lb in)
Instrument Panel Center Air Outlet Duct Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

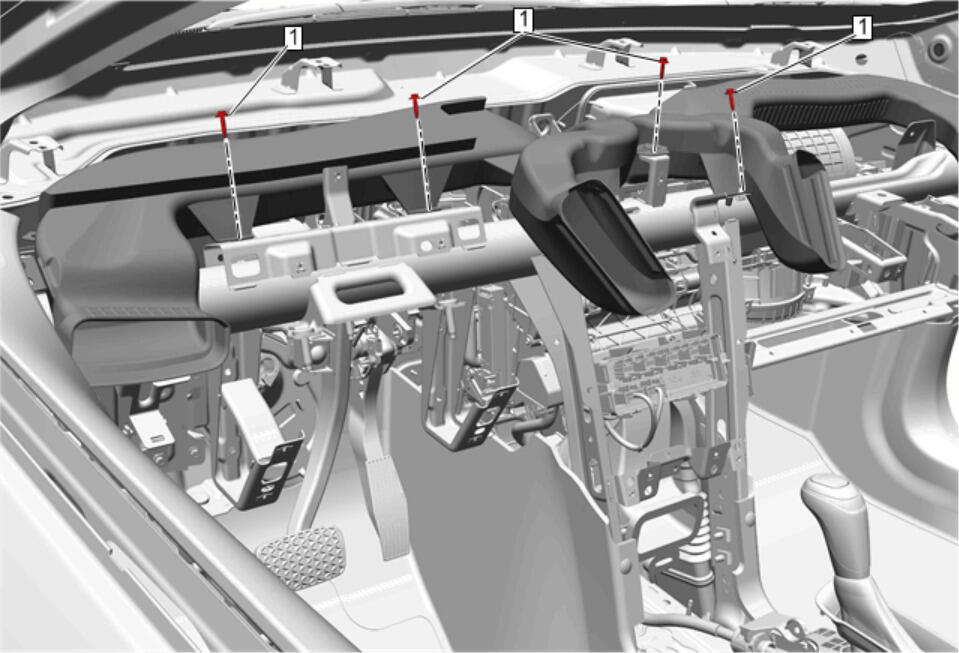

Instrument Panel Center Air Outlet Duct Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Windshield Defroster Outlet Duct (2) - Install - Windshield Defroster Outlet Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

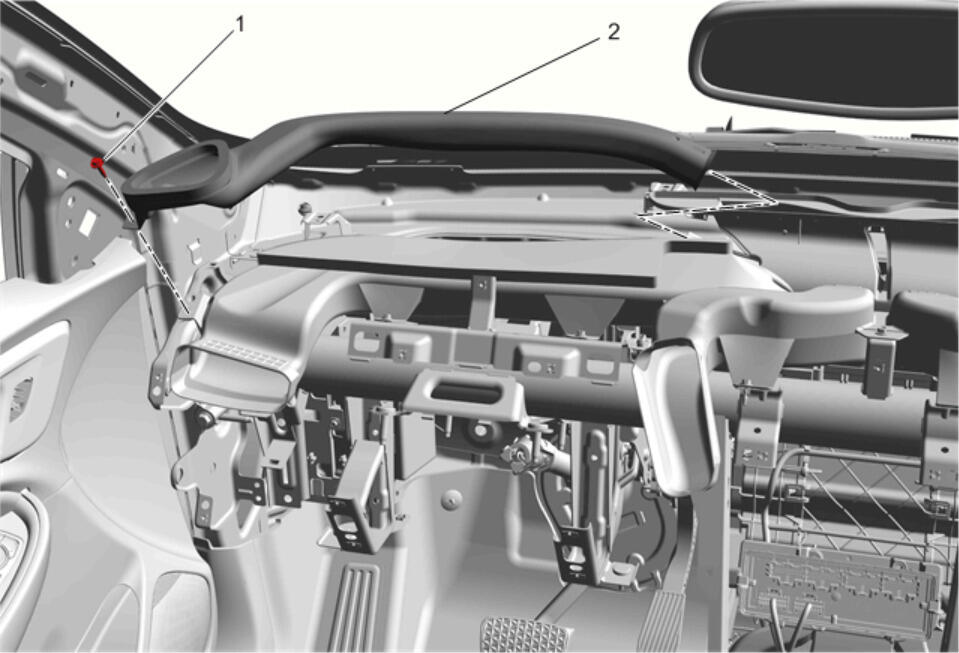

Side Window Defogger Outlet Duct - Right Side (2) - Install - Side Window Defogger Outlet Duct Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Side Window Defogger Outlet Duct - Left Side (2) - Install - Side Window Defogger Outlet Duct Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Assembly (1) - Install - Instrument Panel Assembly Replacement
Air Conditioning Evaporator Tube @ Air Conditioning Evaporator Thermal Expansion Valve - Install - Air Conditioning Evaporator Tube Replacement (LFV, LTG) , or Air Conditioning Evaporator Tube Replacement (LKN)
Heater Outlet Hose @ Heater Core Tube - Install - Heater Outlet Hose Replacement (LFV) , or Heater Outlet Hose Replacement (LTG) , or Heater Outlet Hose Replacement (LKN)
Heater Inlet Hose @ Heater Core Tube - Install - Heater Inlet Hose Replacement (LTG) , or Heater Inlet Hose Replacement (LKN) , or Heater Inlet Hose Replacement (LFV)
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) , or Battery Negative Cable Disconnection and Connection (With KL9)
Fill the cooling system to the proper level. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Evacuate and charge the refrigerant system. Refrigerant Recovery and Recharging (R-1234yf)
Clear the DTCs.
Perform the actuator calibration procedure. Actuator Recalibration
Inspect for coolant leaks.
Inspect for refrigerant leaks.
