Heater Inlet Hose Replacement (LFV)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

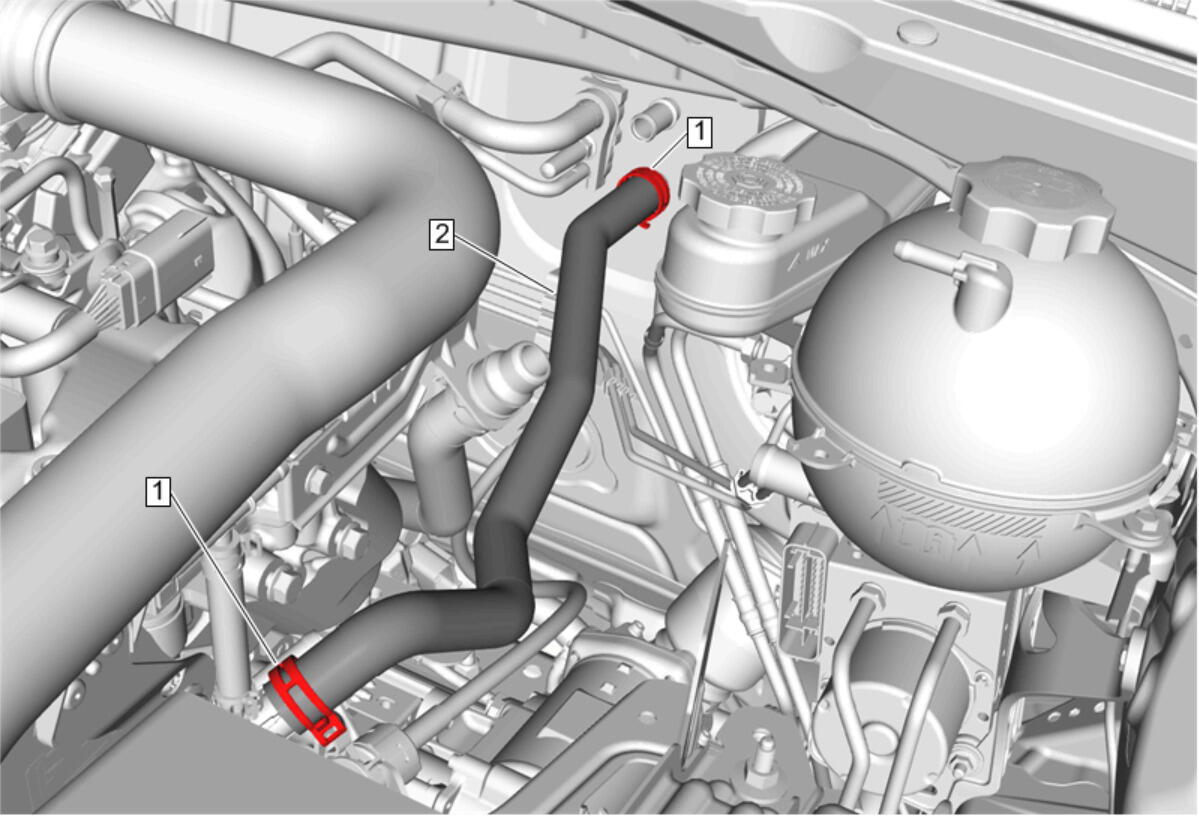

Callout	Component Name
Preliminary Procedures Drain the cooling system. - Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static) Engine Control Module - Remove and position aside - Engine Control Module Replacement NOTE: Some components not shown for graphic clarity.
1	Heater Inlet Hose Clamp [2x] Hose Clamp Replacement Guidelines - Spring Type
2	Heater Inlet Hose Procedure Fill the cooling system to the proper level. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static) Start the engine and check for coolant leaks.

Callout

Component Name

Preliminary Procedures

Drain the cooling system. - Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Engine Control Module - Remove and position aside - Engine Control Module Replacement

NOTE:

Some components not shown for graphic clarity.

Heater Inlet Hose Clamp [2x]
Hose Clamp Replacement Guidelines - Spring Type

Heater Inlet Hose

Procedure

Fill the cooling system to the proper level. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Start the engine and check for coolant leaks.
