Air Conditioning Evaporator Thermal Expansion Valve Replacement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

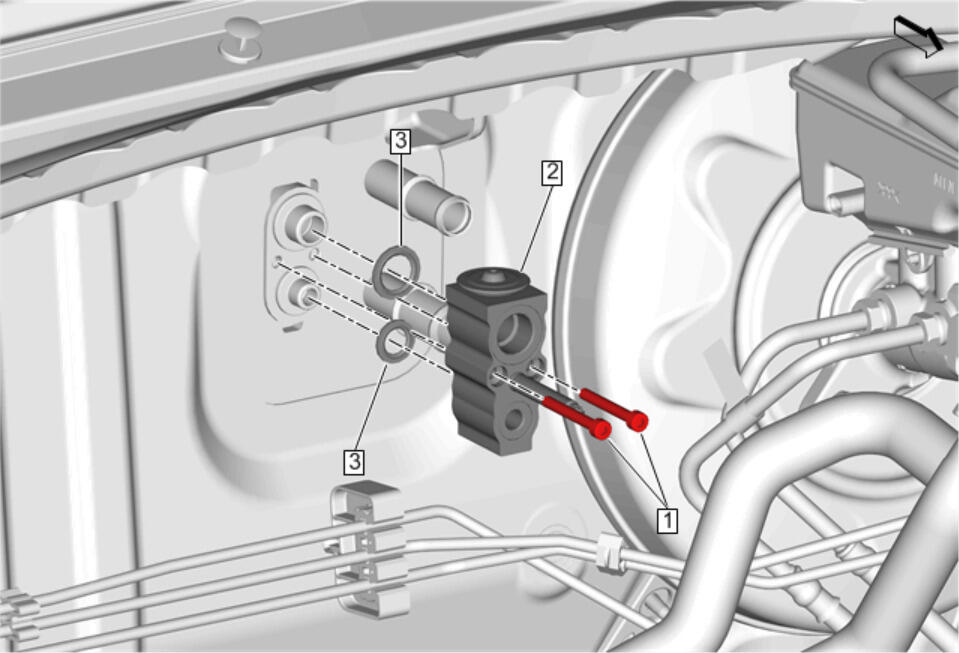

Callout	Component Name
Preliminary Procedure Refrigerant Recovery and Recharging (R-1234yf) . Air Conditioning Evaporator Tube@Air Conditioning Evaporator Thermal Expansion Valve - Remove - Air Conditioning Evaporator Tube Replacement (LFV, LTG) , or Air Conditioning Evaporator Tube Replacement (LKN)
1	Air Conditioning Evaporator Thermal Expansion Valve Bolt [2x] CAUTION: Refer to Component Fastener Tightening Caution . Tighten 4.7 N.m (42 lb in)
2	Air Conditioning Evaporator Thermal Expansion Valve
3	Air Conditioning Evaporator Thermal Expansion Valve Seal [2x] Procedure Remove and DISCARD the sealing washer. Air Conditioning System Seal Replacement
