Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

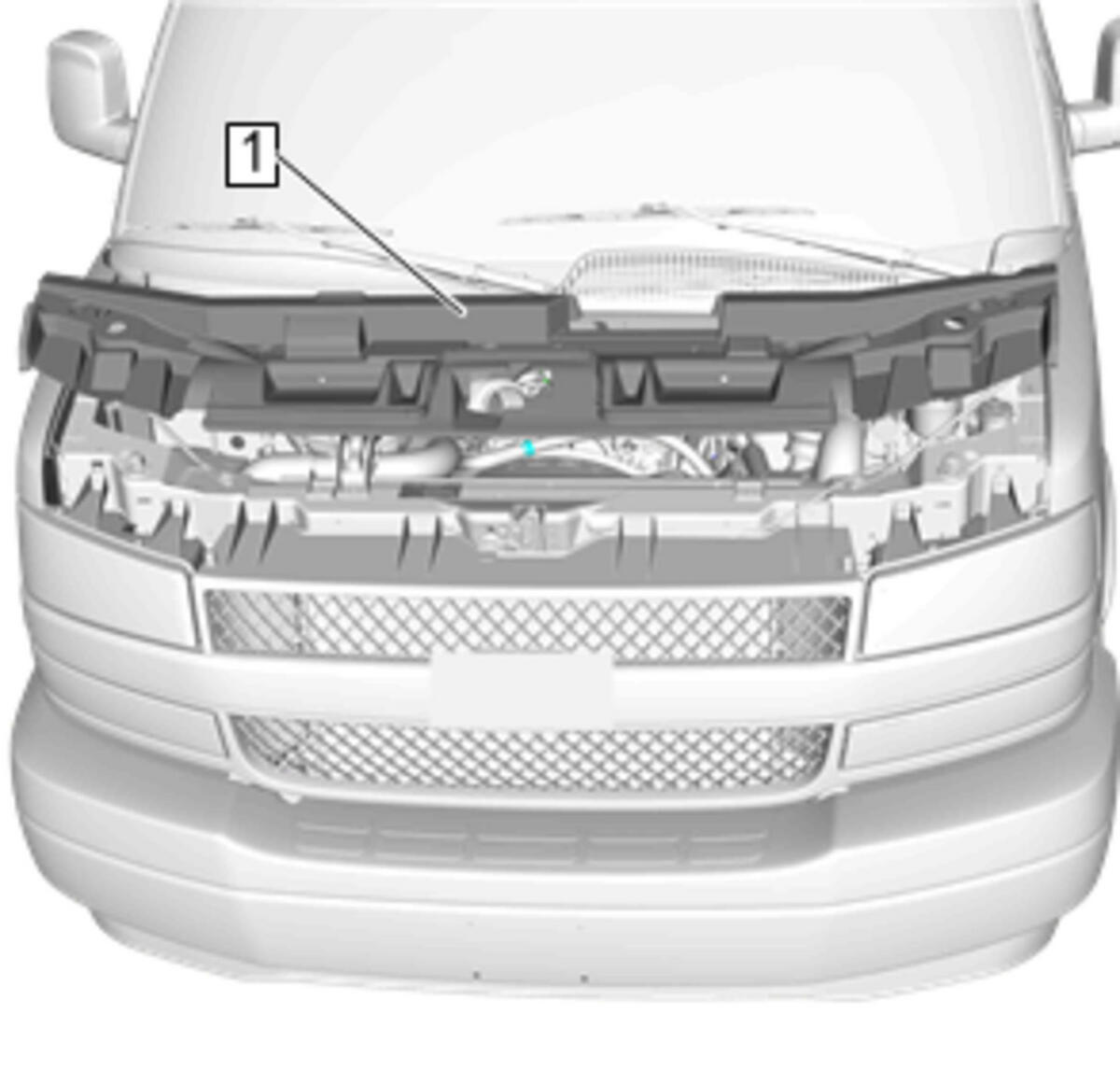

Radiator Air Upper Baffle(1) Remove - Radiator Air Upper Baffle Replacement (LWN)Radiator Air Upper Baffle Replacement (LV1)Radiator Air Upper Baffle Replacement (L96, LC8)

Courtesy of GENERAL MOTORS COMPANY

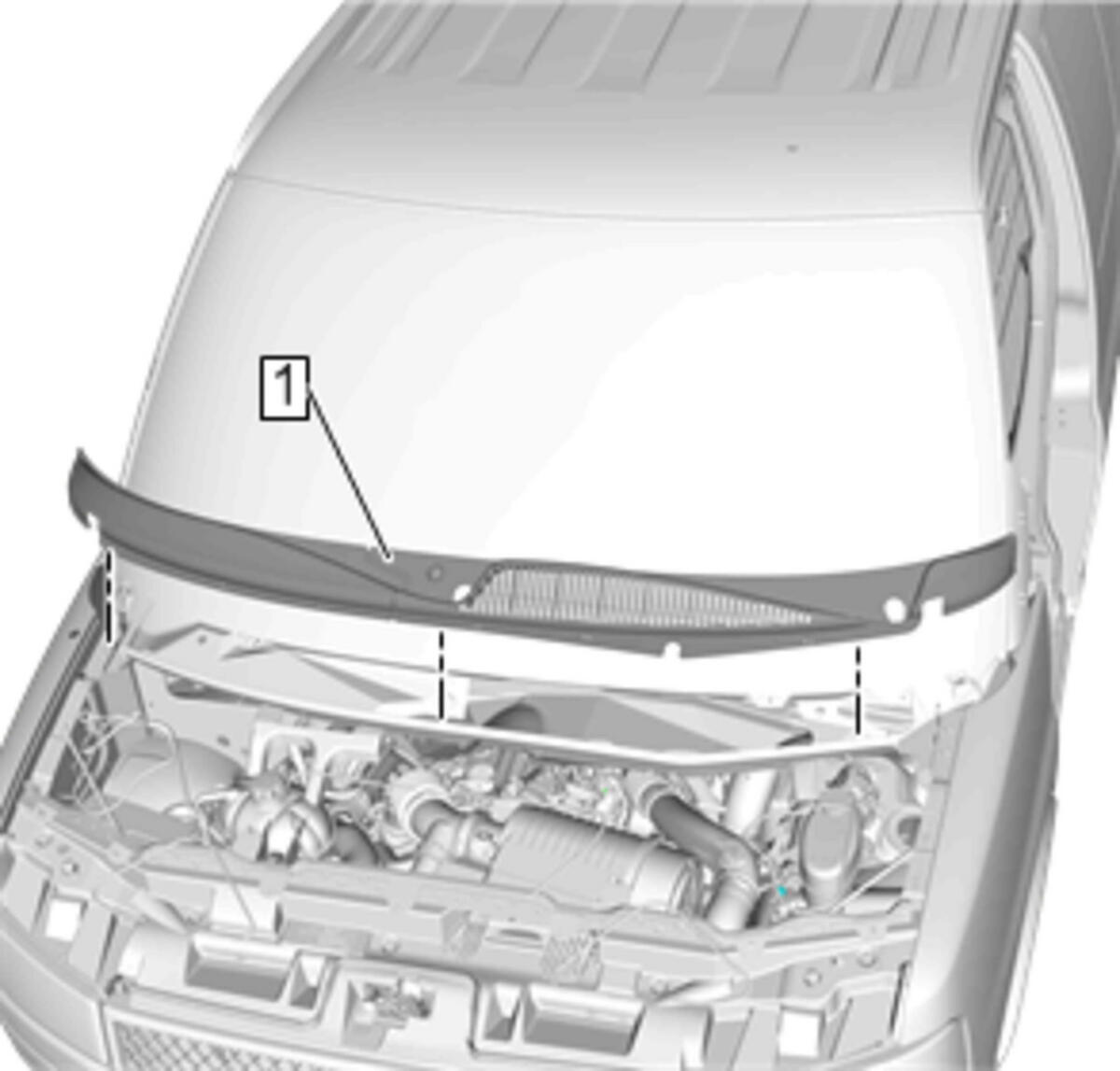

Air Inlet Grille Panel(1) - Remove - Air Inlet Grille Panel Replacement (Left Side)Air Inlet Grille Panel Replacement (Right Side)

Courtesy of GENERAL MOTORS COMPANY

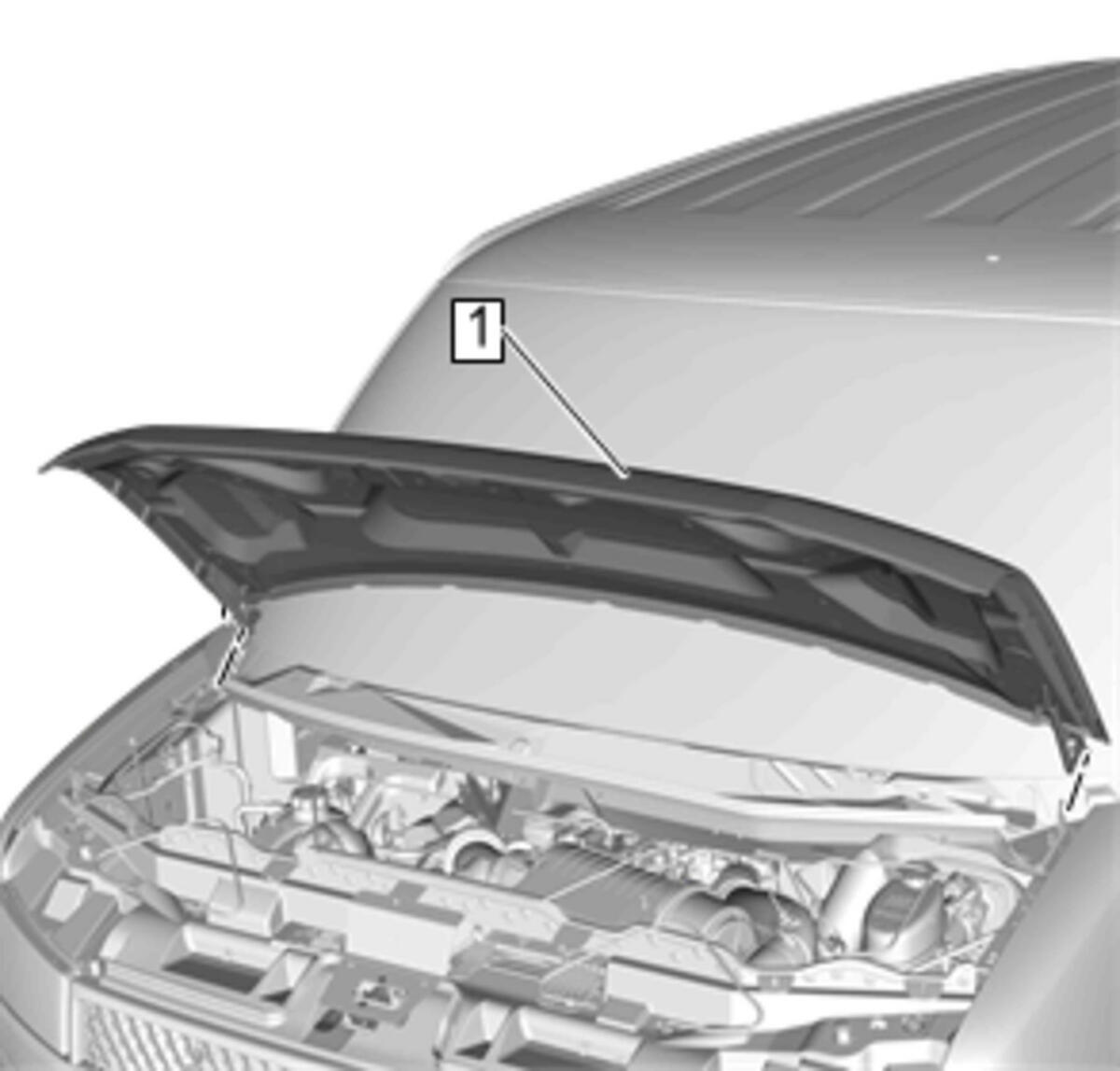

Hood(1) - Remove - Hood Replacement

Courtesy of GENERAL MOTORS COMPANY

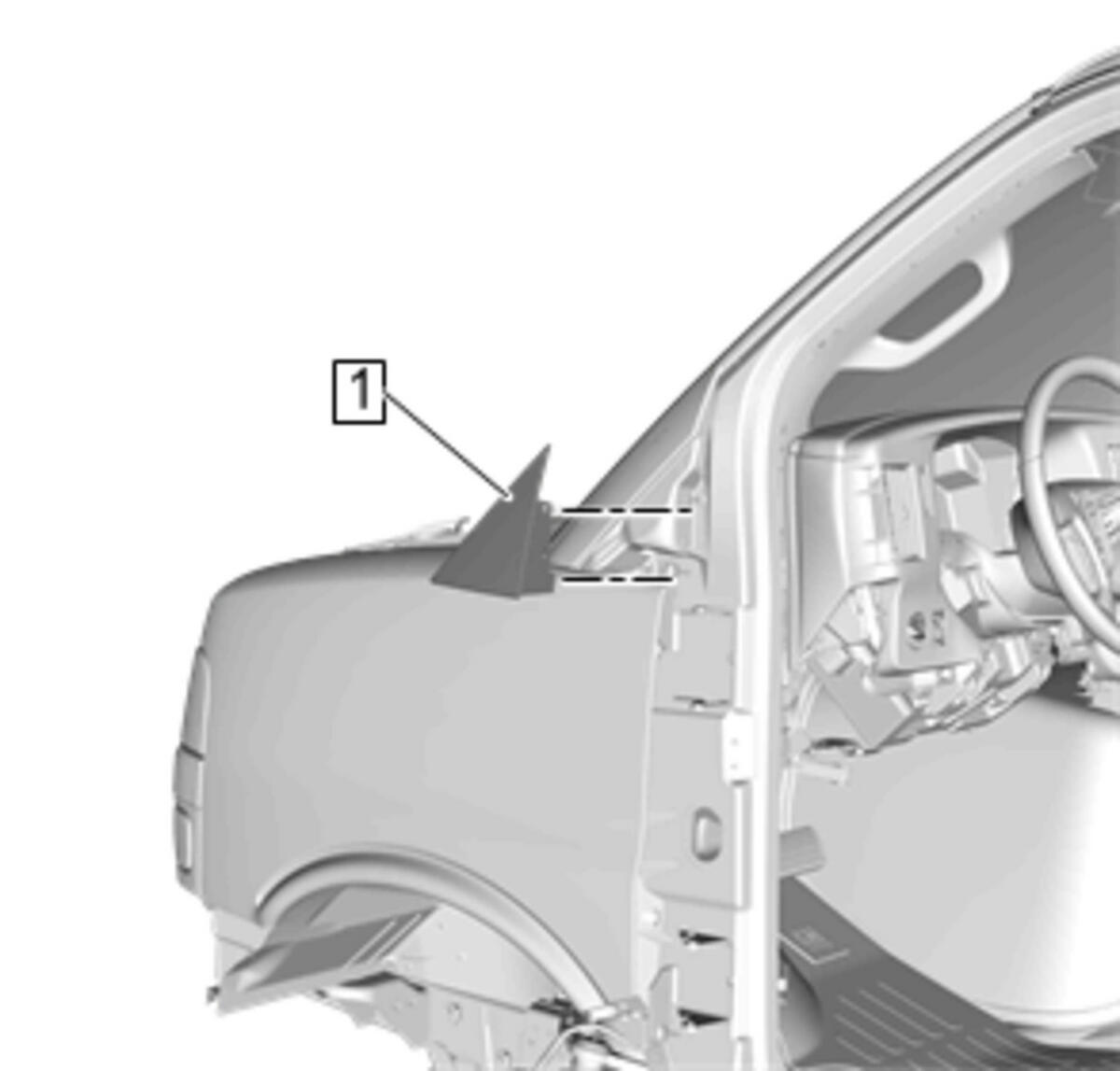

Front Fender Upper Rear Molding(1) - Remove - Front Fender Upper Rear Molding Replacement

Courtesy of GENERAL MOTORS COMPANY

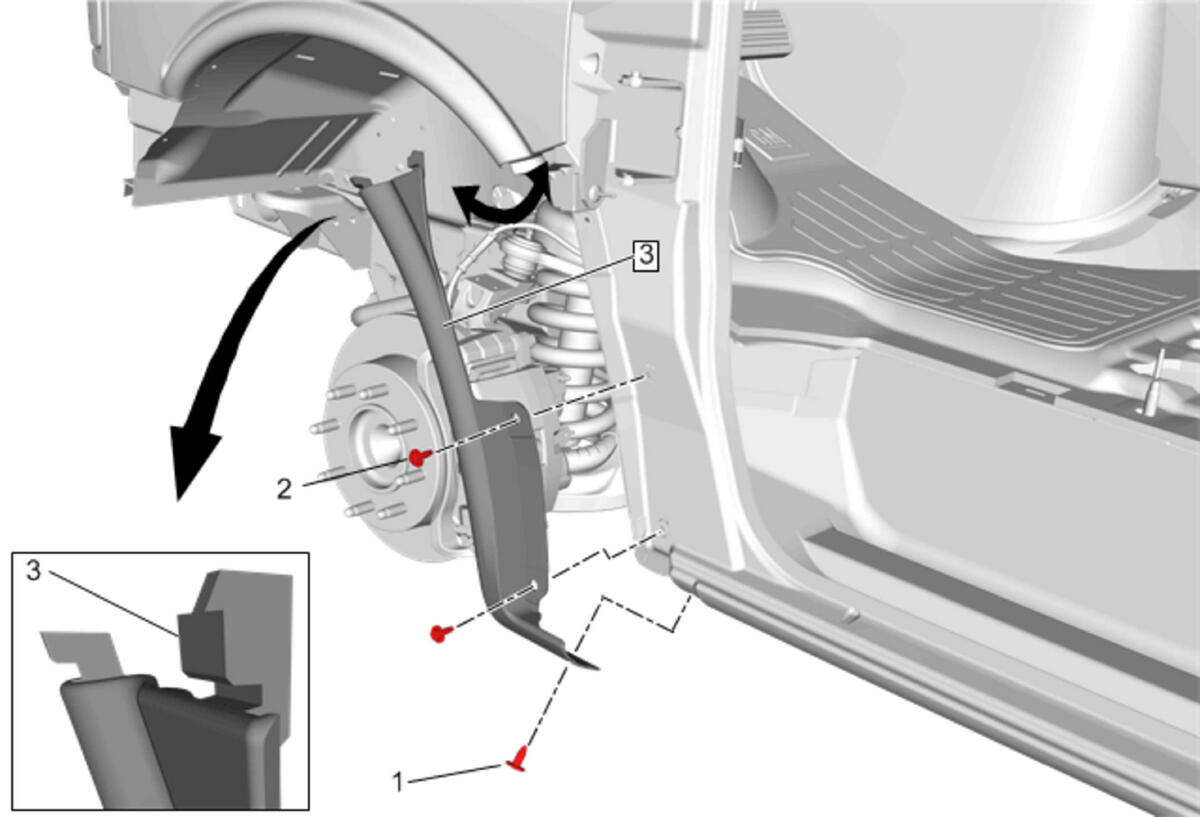

Front Fender Front Lower Reinforcement Extension (1) - Remove - Front Fender Front Lower Reinforcement Extension Replacement

Courtesy of GENERAL MOTORS COMPANY

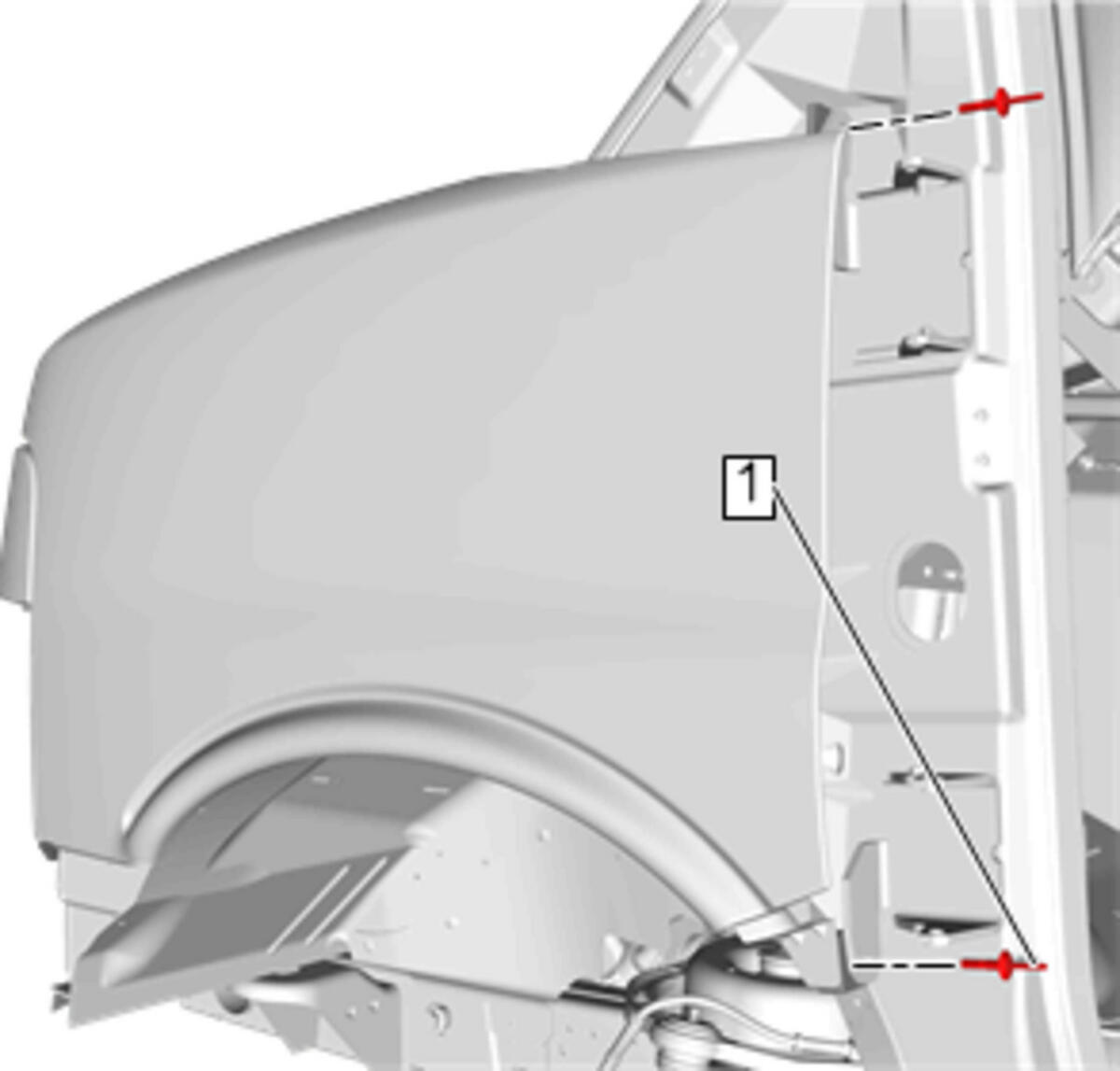

Front Fender Rivet(1) - Remove[2x]

Courtesy of GENERAL MOTORS COMPANY

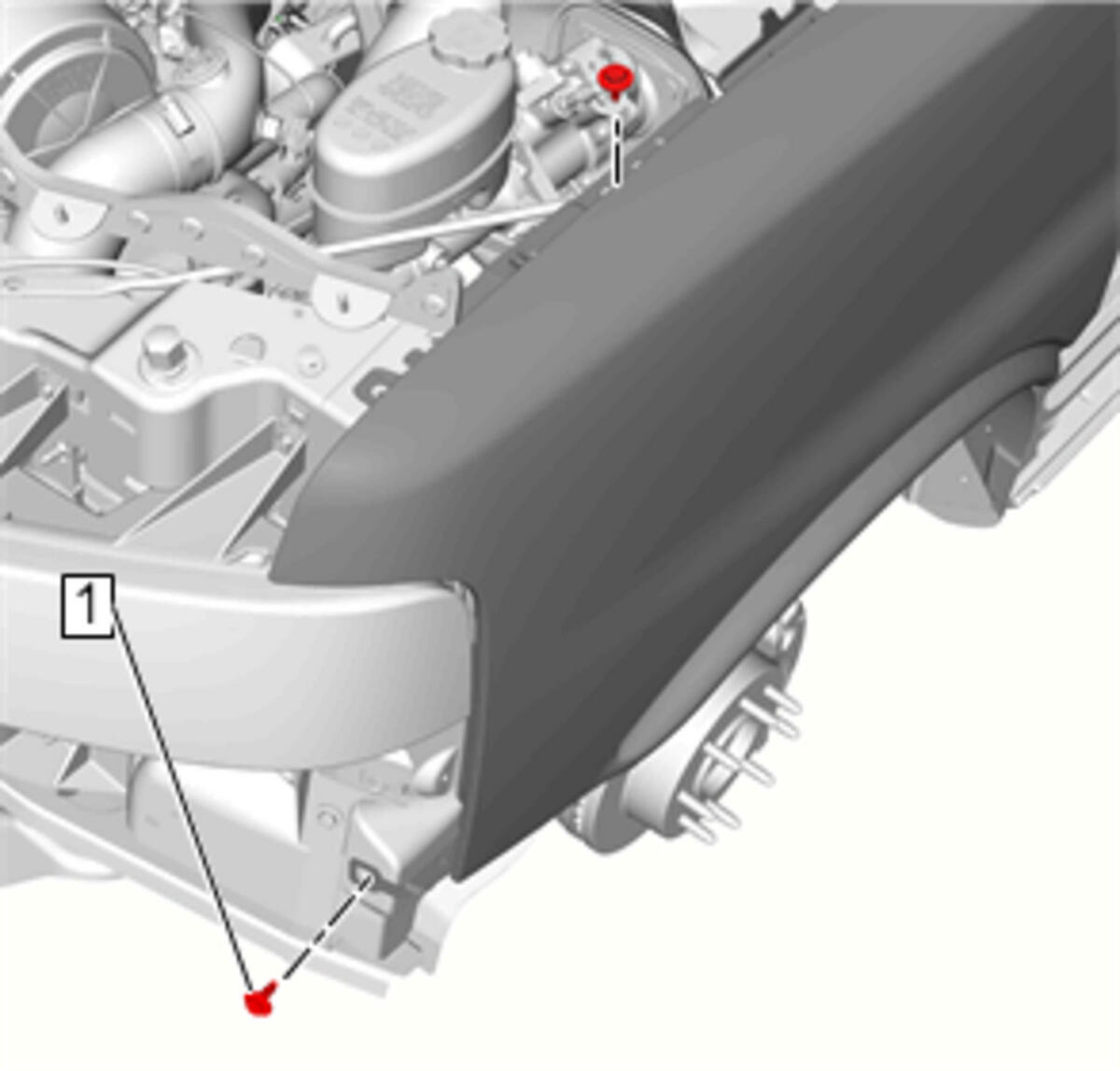

Front Fender Bolt(1) - Remove[2x]

Courtesy of GENERAL MOTORS COMPANY

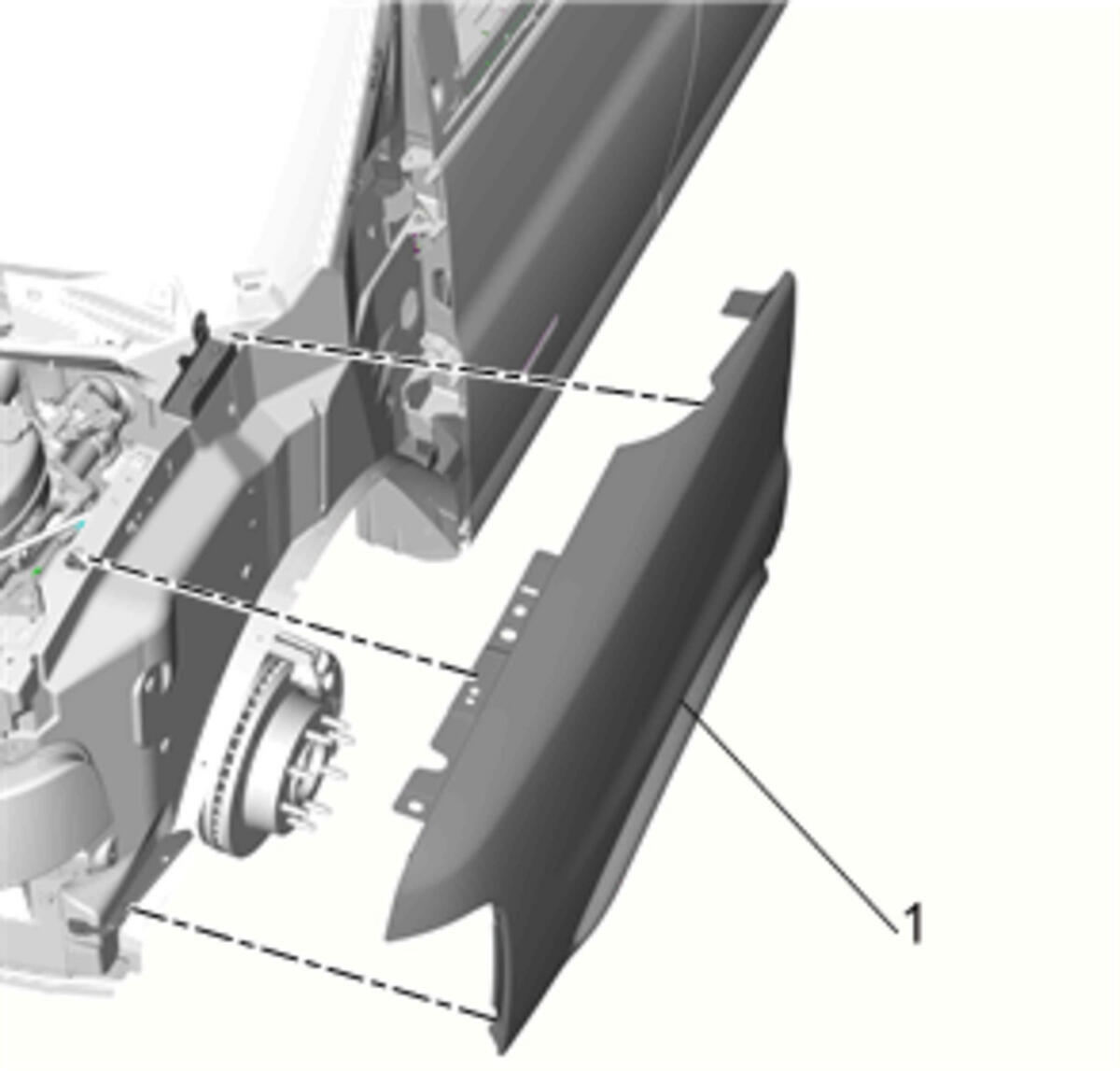

Front Fender(1) - Remove
