Air Inlet Grille Panel Replacement (Right Side)

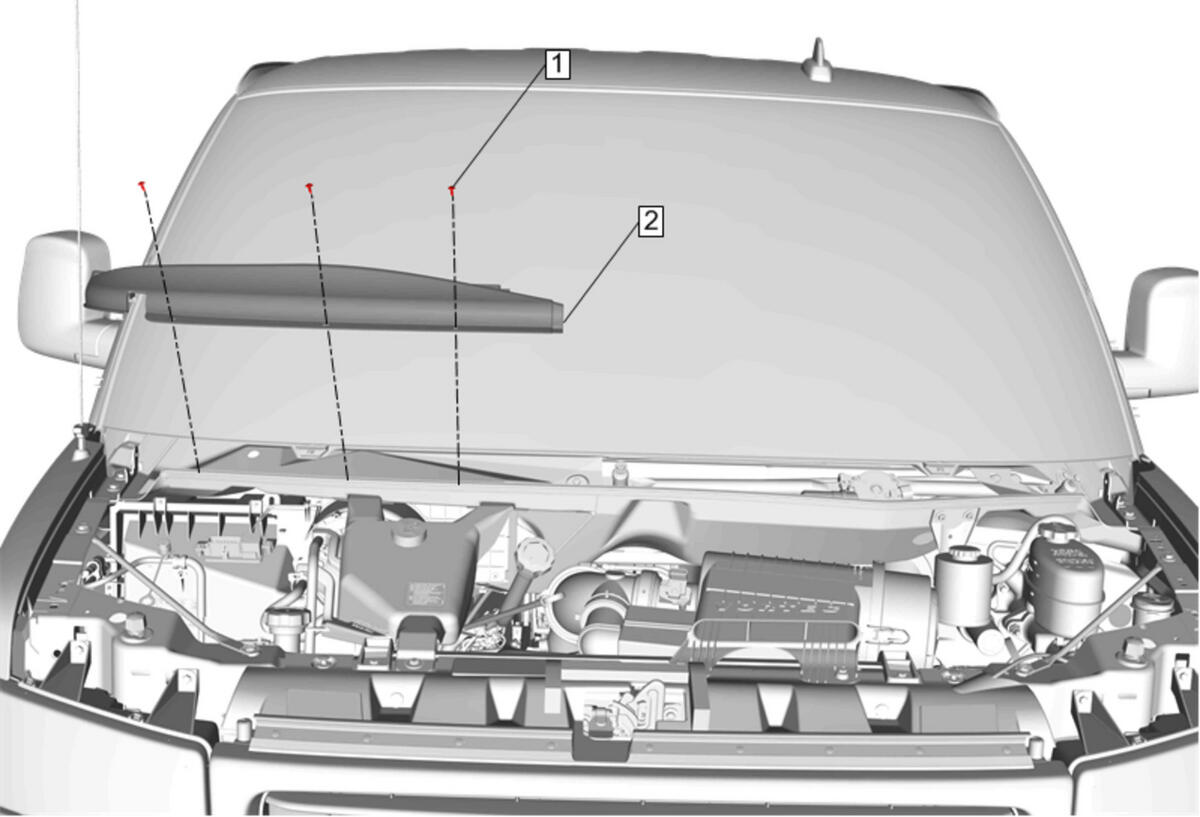

GM4855826Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Windshield Wiper Arm Replacement
  2. Air Inlet Grille Panel- Left Side - Remove - Air Inlet Grille Panel Replacement (Left Side) Air Inlet Grille Panel Replacement (Right Side)
1 Air Inlet Grille Panel Bolt [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
0.2 N.m (2 lb in)
2 Air Inlet Grille Panel- Right Side

Procedure

  1. Using an appropriate tool, release the air inlet grille panel from the windshield lower molding.
  2. Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges.
