Hood Replacement

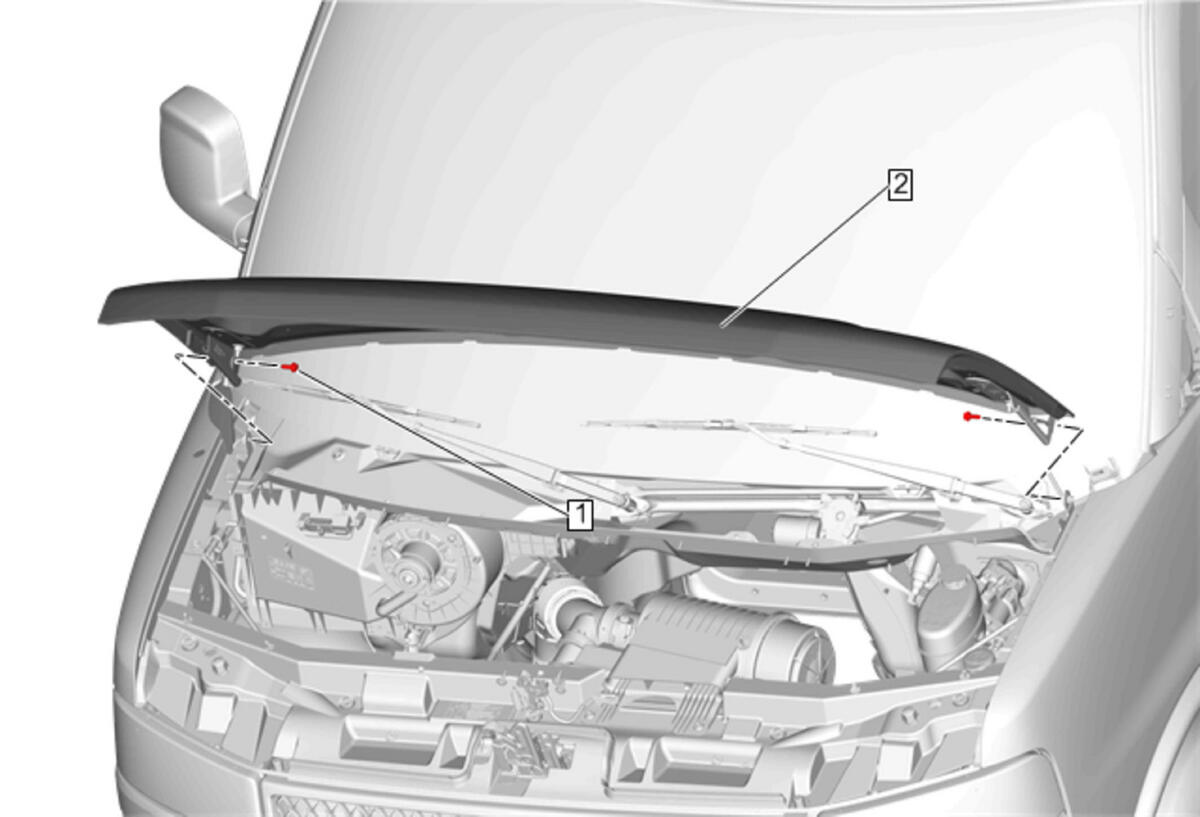

GM4842634Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Inlet Grille Panel Replacement (Left Side)Air Inlet Grille Panel Replacement (Right Side)
1 Hood Hinge Pivot Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
25N.m (18 lb ft)
2 Hood

Procedure

  1. With the aid of an assistant, remove the hood.
  2. Transfer components as necessary.
