Front Fender Upper Rear Molding Replacement

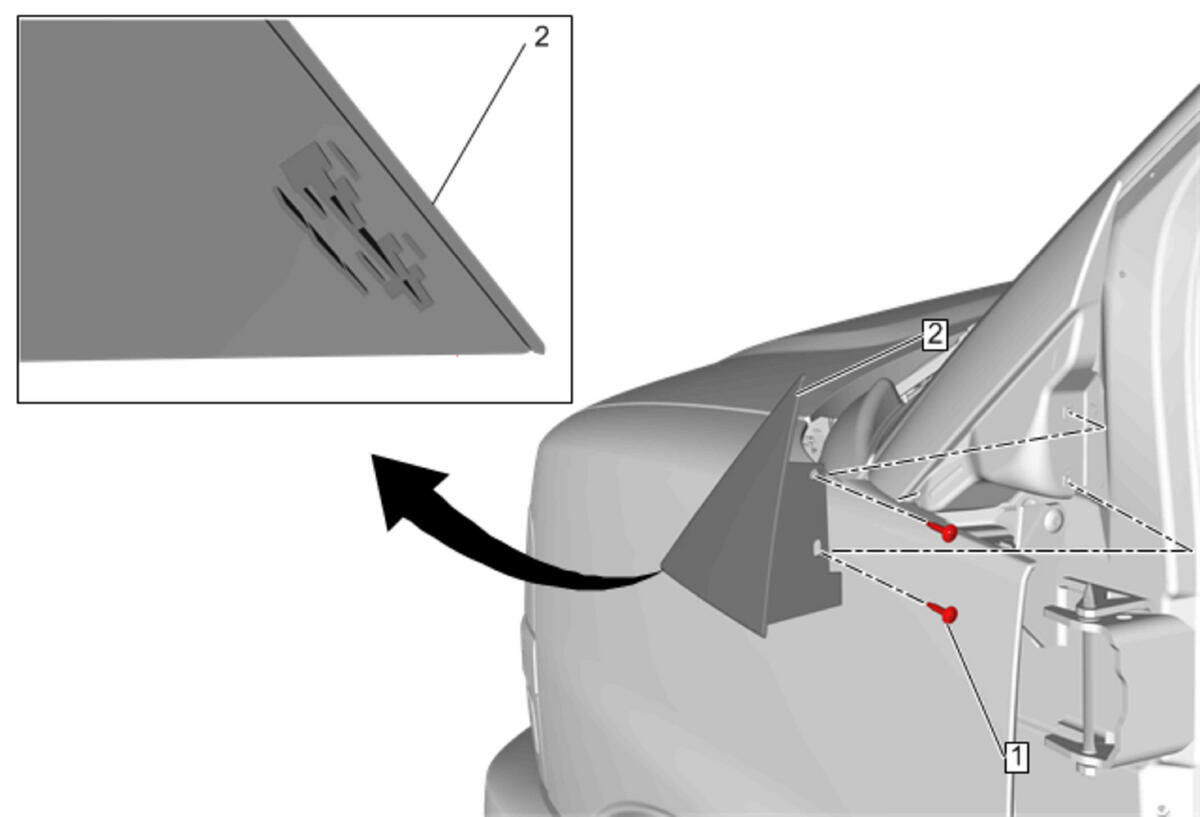

GM4842483
Callout Component Name
WARNING:

Refer to Eye Protection Warning .

Preliminary Procedure Open the front side door.
1 Front Fender Upper Rear Molding Rivet [2x]
2 Front Fender Upper Rear Molding

Procedure

  1. Apply a suitable tape around the front fender upper rear molding.
  2. Using a suitable trim-type release tool, carefully release the front fender upper rear molding retainer.
