Air Inlet Grille Panel Replacement (Left Side)

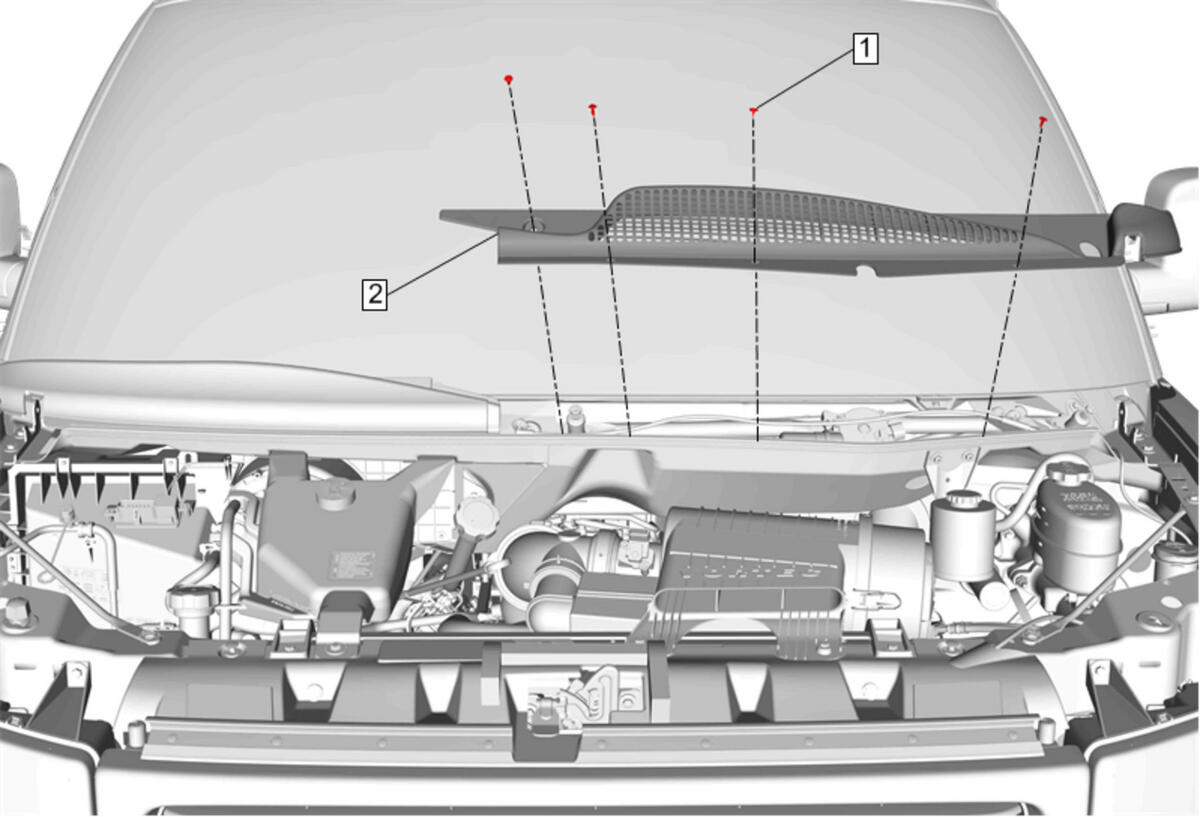

GM4855823Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Windshield Wiper Arm Replacement
  2. Hood Rear Weatherstrip Replacement
1 Air Inlet Grille Panel Bolt [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
0.2 N.m (2 lb in)
2 Air Inlet Grille Panel- Left Side

Procedure

  1. Using an appropriate tool, release the air inlet grille panel from the windshield lower molding.
  2. Lift up the front edge of the air inlet grille panel, slide the grille panel forward from both hood hinges.
  3. Disconnect the windshield washer nozzle hose from the windshield washer hose.
  4. Transfer components as necessary.
