Installation Procedure

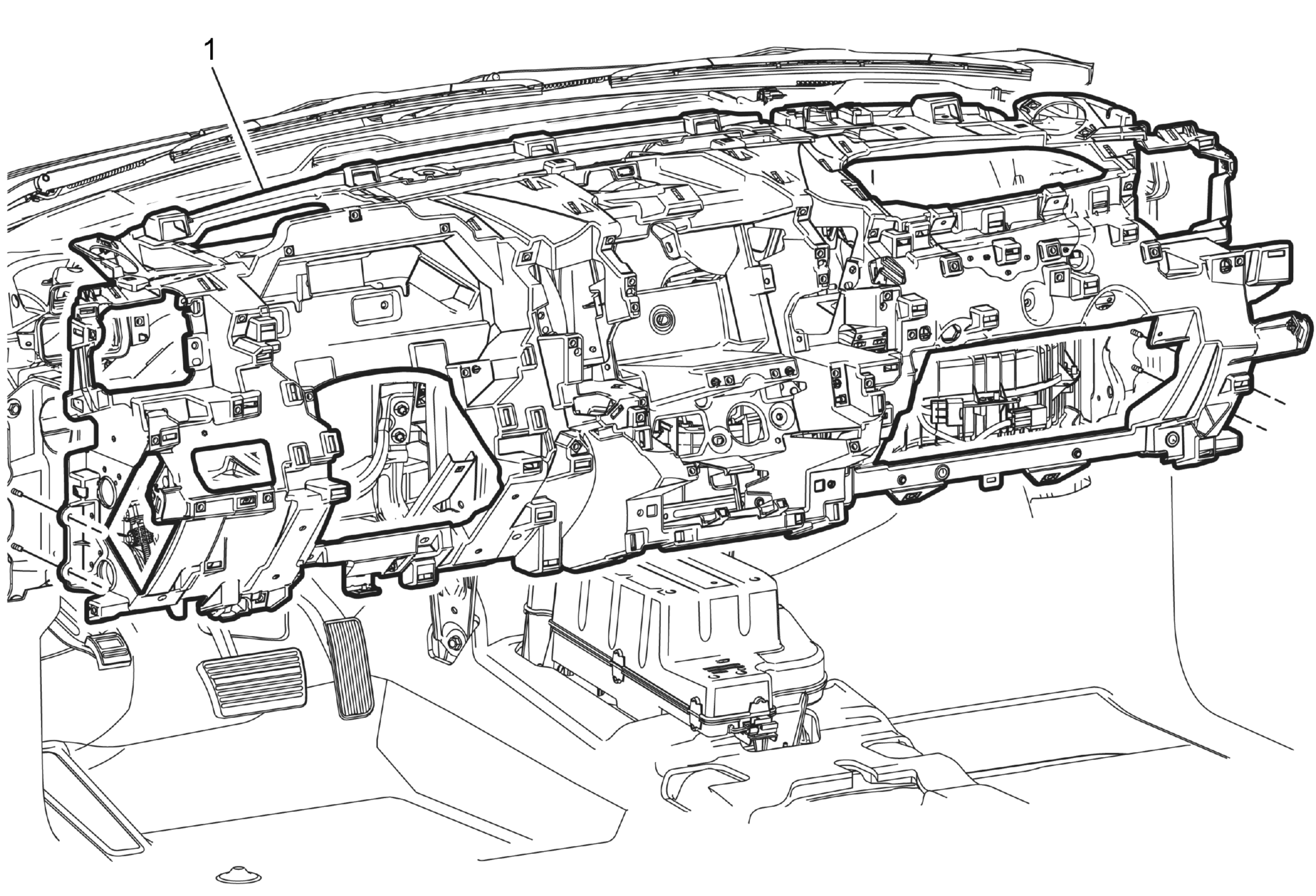

  1. GM3637352Courtesy of GENERAL MOTORS COMPANY

    With the aid of an assistant, position the instrument panel carrier (1) into the vehicle.

  2. Reposition the instrument panel wiring harness into vehicle position as was noted in the removal process and connect the fasteners securing the instrument panel wiring harness to the instrument panel assembly.
  3. Install the right and left front floor flood lamps. Refer to Front Floor Flood Lamp Replacement (Right Side)Front Floor Flood Lamp Replacement (Left Side) .
  4. Install the data link connector.

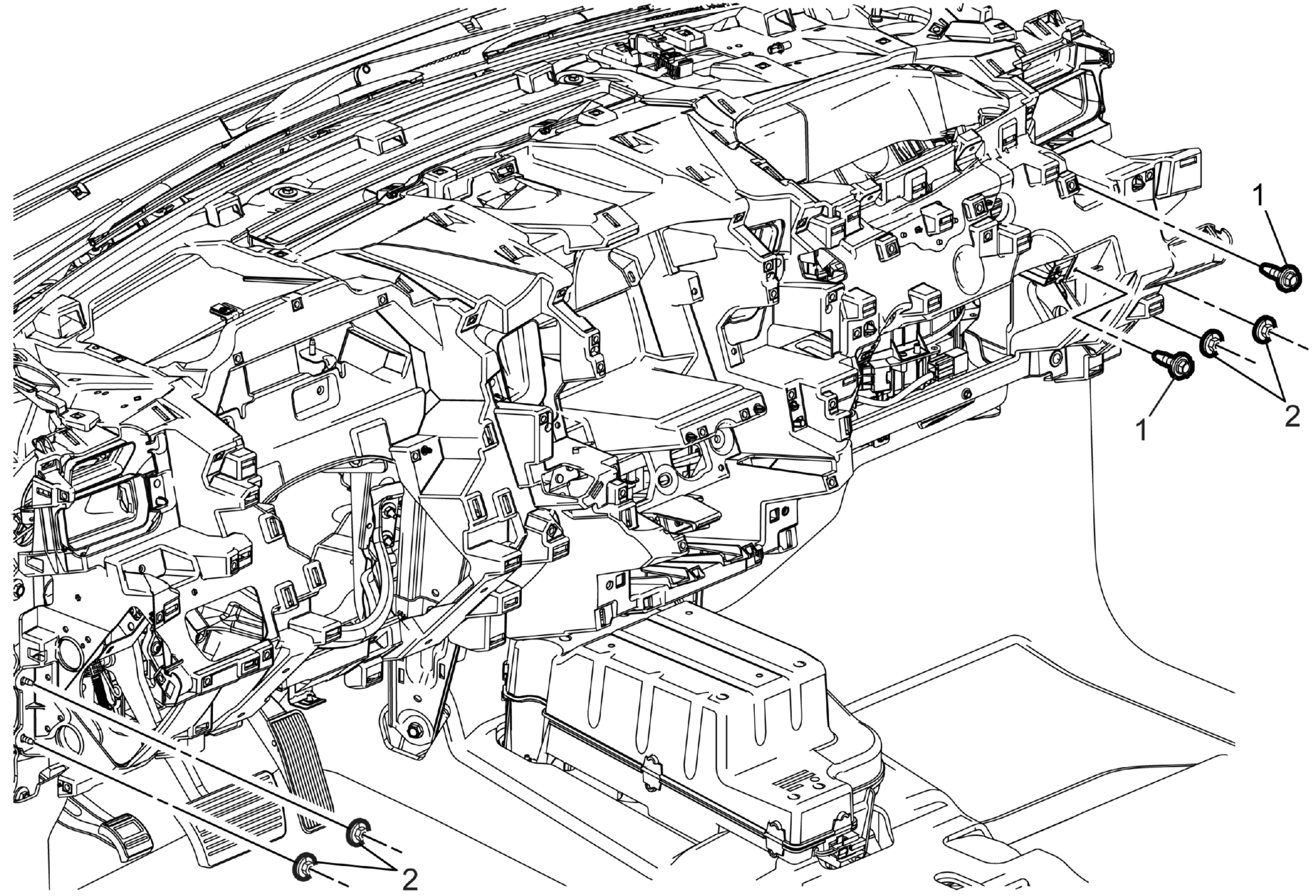

  5. GM3637318Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the instrument panel carrier nuts (2) and tighten to 9 N.m (80 lb in).

  6. Install the instrument carrier fasteners (1) and tighten to 2.5 N.m (22 lb in).

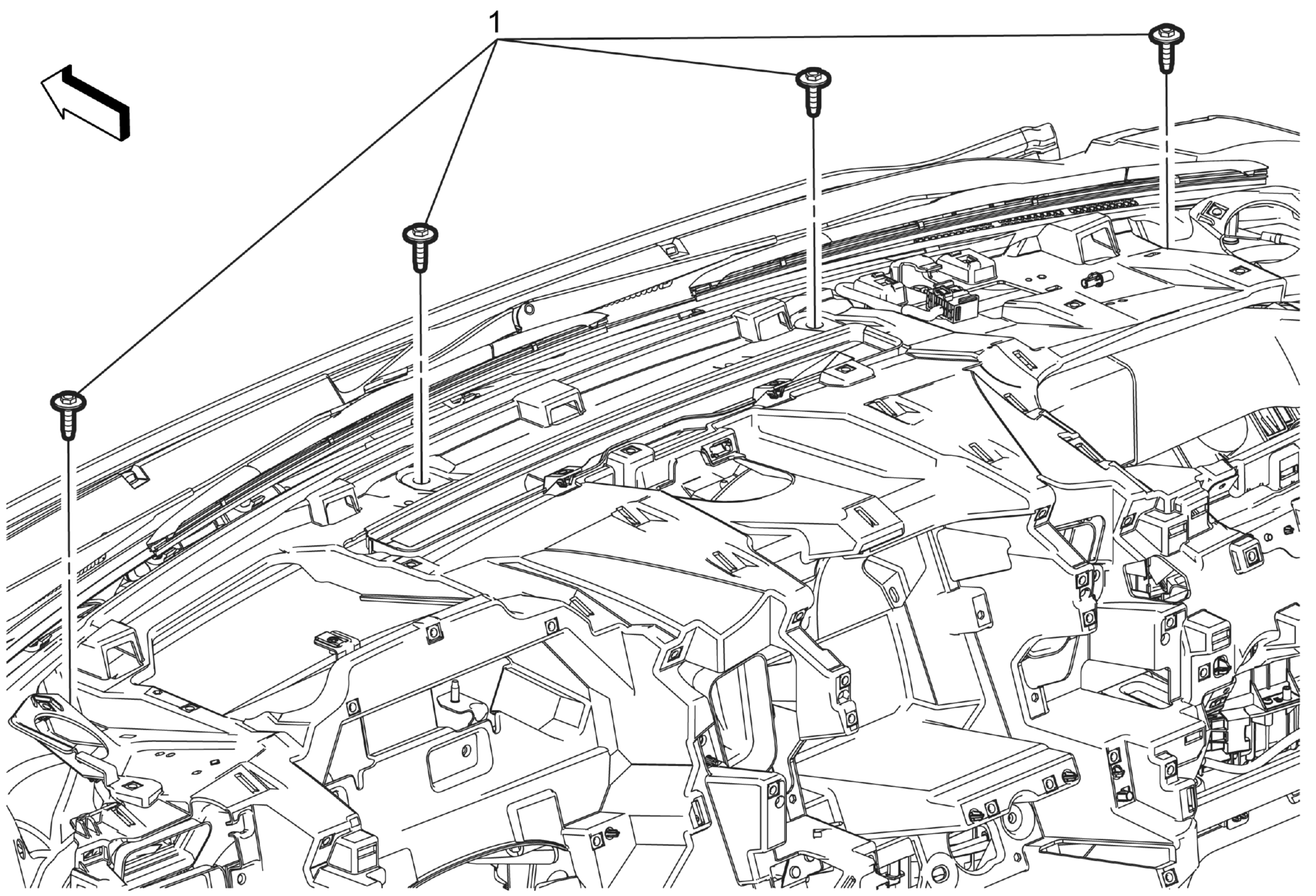

  7. GM3637298Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel upper trim panel fasteners (1) and tighten to 9 N.m (80 lb in).

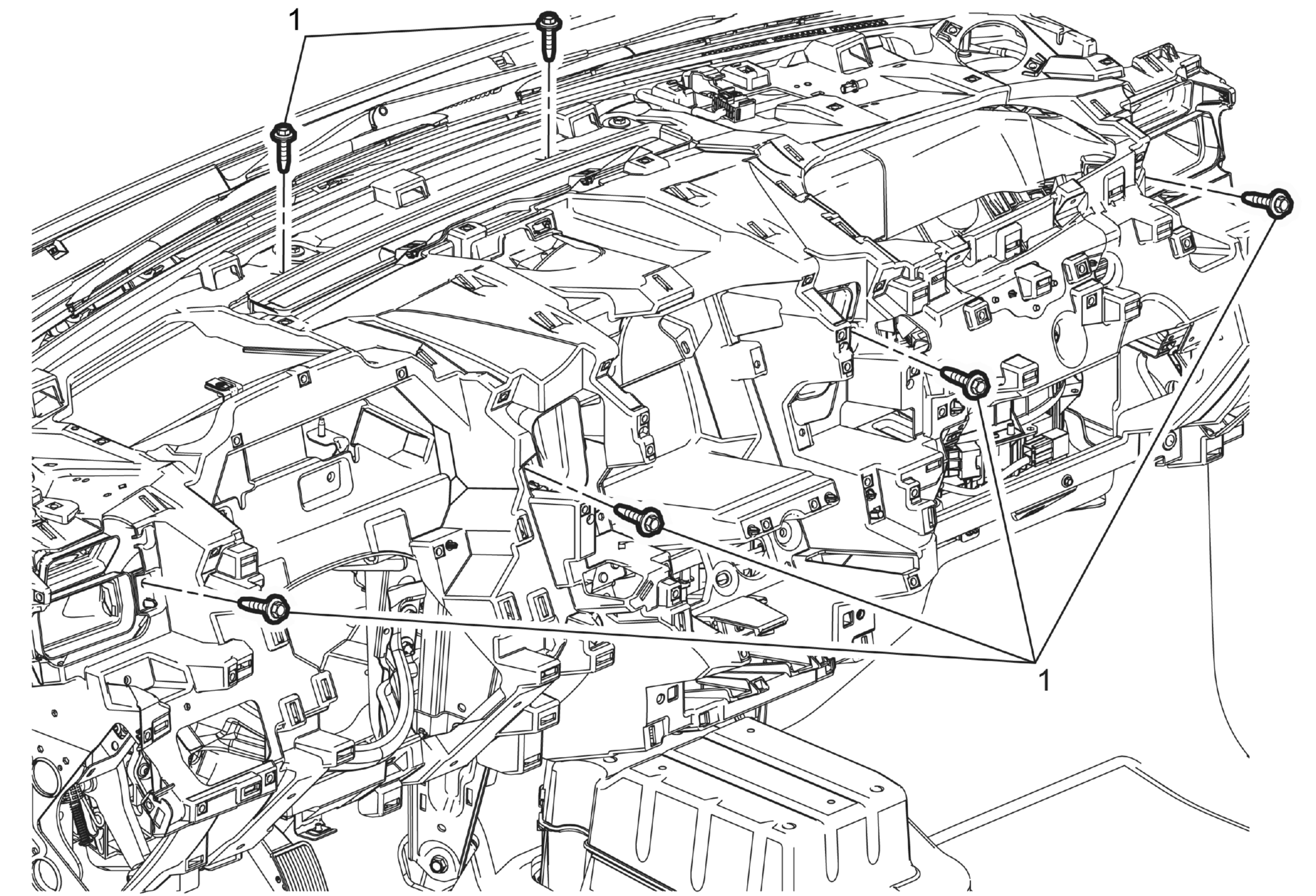

  8. GM3637289Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel center and outer air outlet fasteners (1) and tighten to 2.5 N.m (22 lb in).

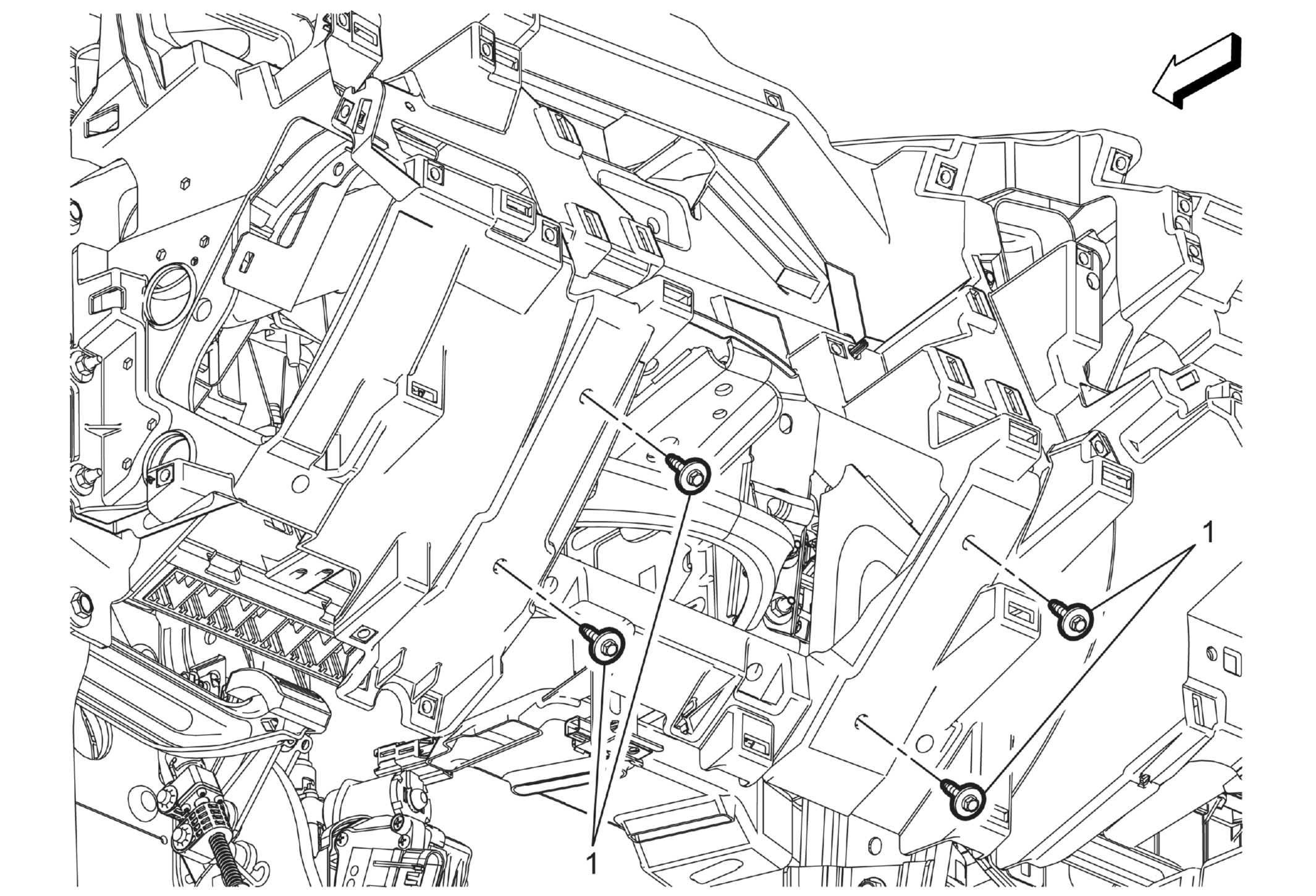

  9. GM3637267Courtesy of GENERAL MOTORS COMPANY

    Install the instrument carrier fasteners (1) and tighten to 2.5 N.m (22 lb in).

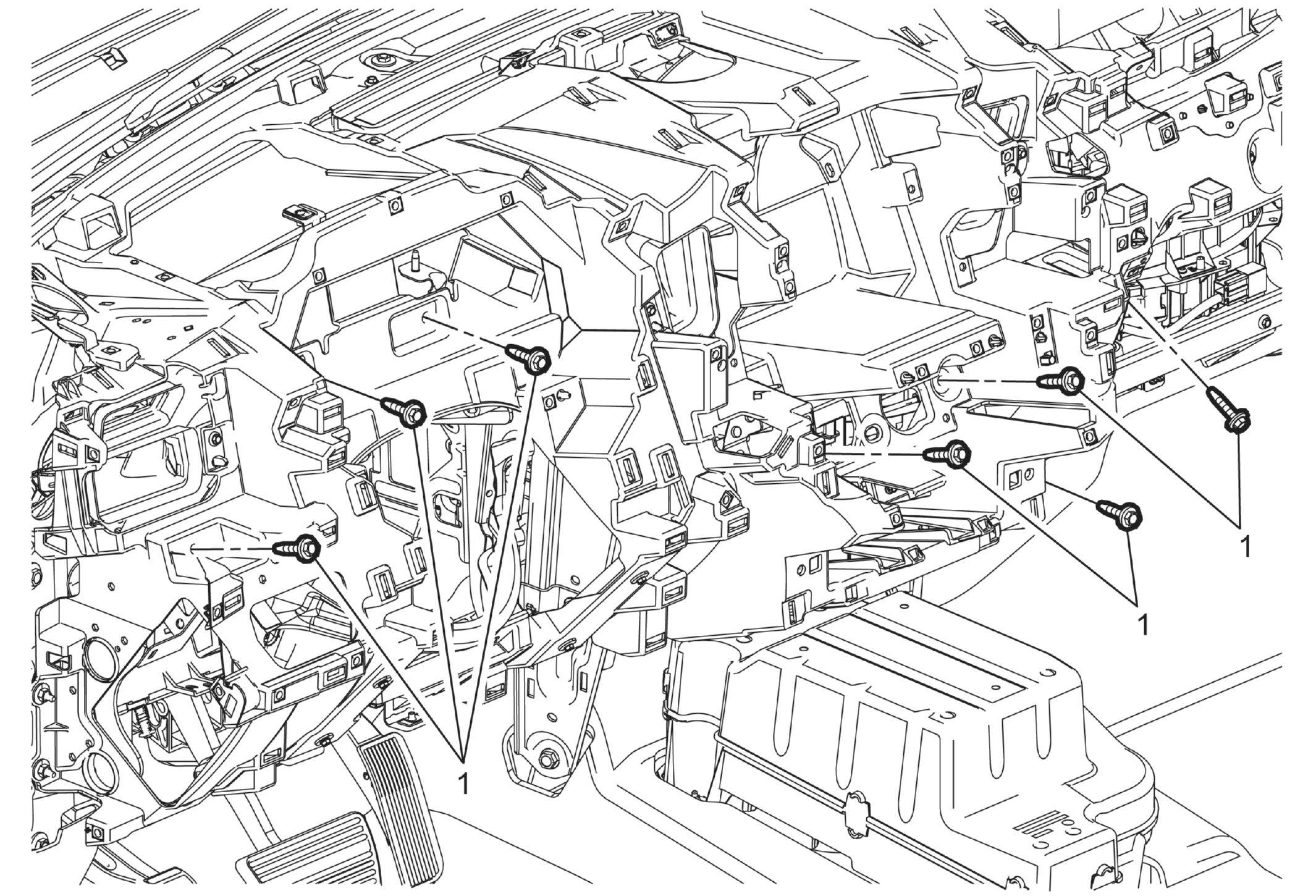

  10. GM3637261Courtesy of GENERAL MOTORS COMPANY

    Install the instrument carrier fasteners (1) and tighten to 2.5 N.m (22 lb in).

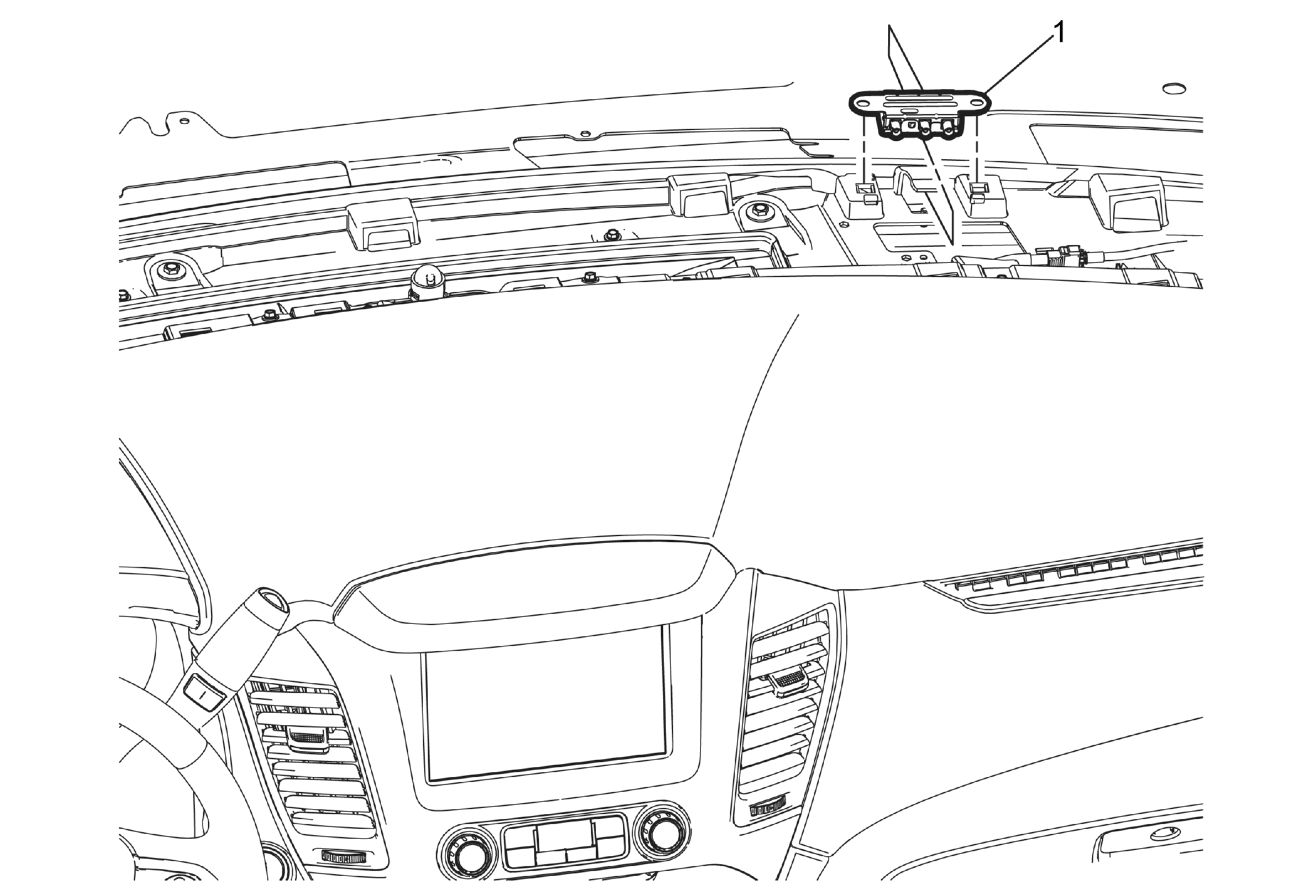

  11. GM3634752Courtesy of GENERAL MOTORS COMPANY

    Install the navigation signal splitter (1). Refer to Navigation Signal Splitter Replacement (Chevrolet / GMC) .

  12. GM3630199Courtesy of GENERAL MOTORS COMPANY

    Install the left and right radio speakers (2). Refer to Radio Speaker Replacement (Chevrolet / GMC) .

  13. GM3631486Courtesy of GENERAL MOTORS COMPANY

    Install the disc player (2). Refer to Disc Player Replacement .

  14. GM3631488Courtesy of GENERAL MOTORS COMPANY

    Install the radio (1). Refer to Radio Replacement (Chevrolet / GMC with NGI)Radio Replacement (Chevrolet/GMC with IOB) .

  15. GM3636087Courtesy of GENERAL MOTORS COMPANY

    Install the head-up display (3), if equipped. Refer to Head-Up Display Replacement (Chevrolet / GMC) .

  16. GM3629709Courtesy of GENERAL MOTORS COMPANY

    Install the instrument cluster (2). Refer to Instrument Cluster Replacement (Chevrolet / GMC) .

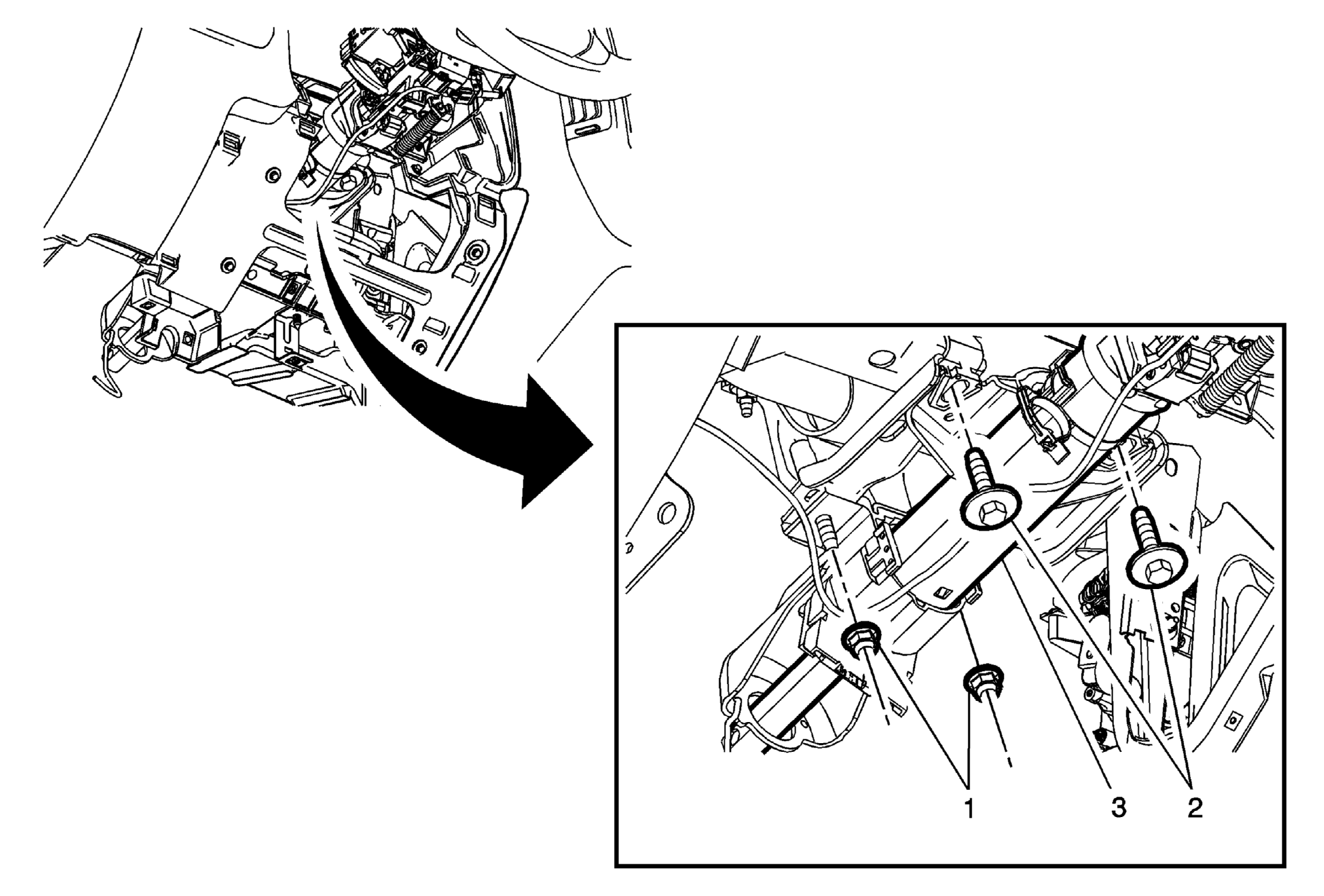

  17. GM3274368Courtesy of GENERAL MOTORS COMPANY

    Install the steering column (3). Refer to Steering Column Replacement (N33, N37)Steering Column Replacement (N38) .

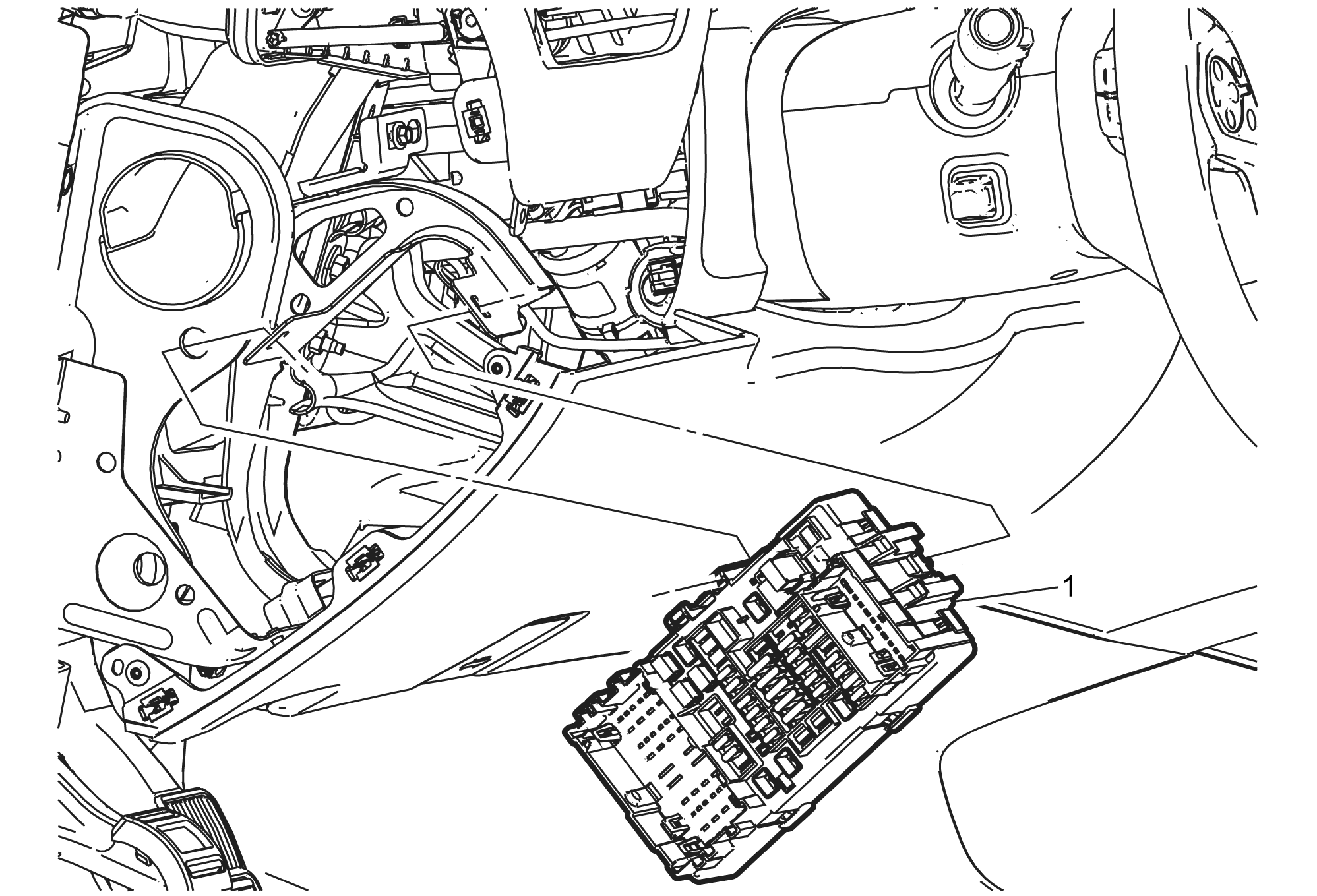

  18. GM3638967Courtesy of GENERAL MOTORS COMPANY

    Install both instrument panel wiring harness junction blocks (1). Refer to Instrument Panel Wiring Harness Junction Block Replacement .

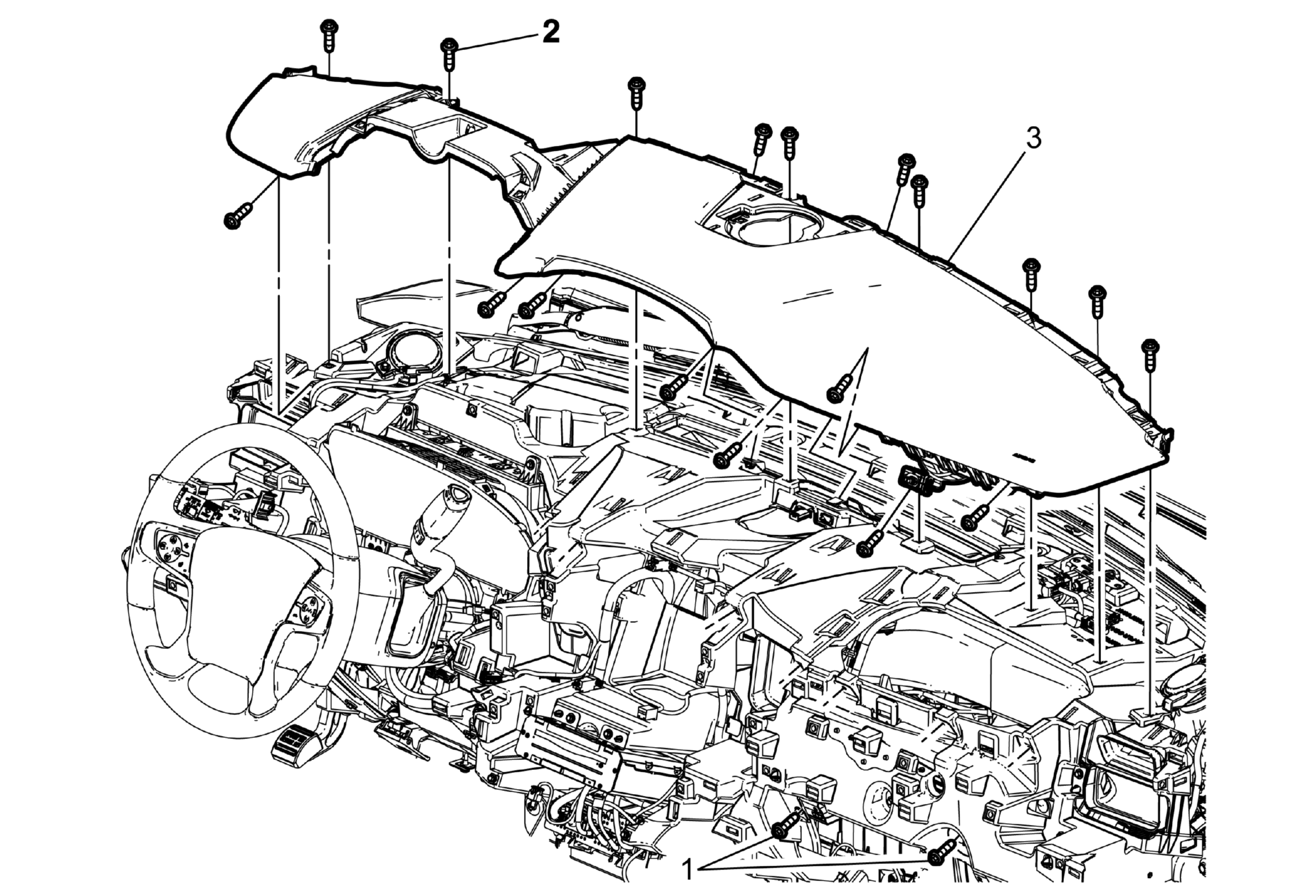

  19. GM3624003Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel upper trim panel (3). Refer to Instrument Panel Upper Trim Panel Replacement (Chevrolet / GMC) .

  20. GM3639909Courtesy of GENERAL MOTORS COMPANY

    Install the instrument panel center compartment (3), if equipped. Refer to Instrument Panel Center Compartment Replacement (Chevrolet / GMC)

  21. GM3635067Courtesy of GENERAL MOTORS COMPANY

    Install the front floor console (3), if equipped. Refer to Front Floor Console Replacement (Chevrolet / GMC) .

  22. Enable the SIR system. Refer to SIR Disabling and Enabling .
