Front Floor Flood Lamp Replacement (Right Side)

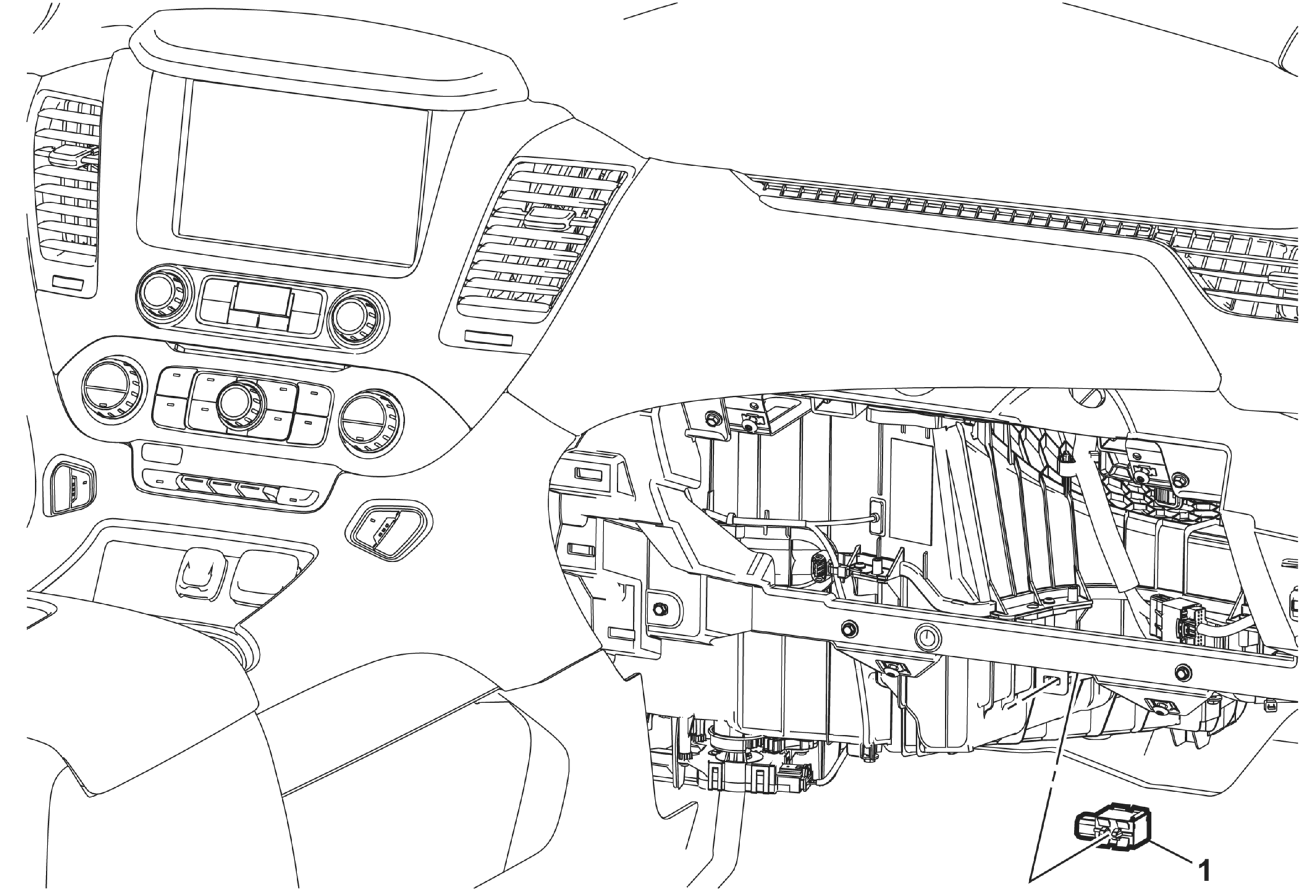

GM3636192Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel insulator. Refer to Instrument Panel Insulator Replacement (Chevrolet/GMC)Instrument Panel Insulator Replacement (Cadillac) .
1 Front Floor Flood Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Gently release the tab on the lamp assembly.
