Front Floor Flood Lamp Replacement (Left Side)

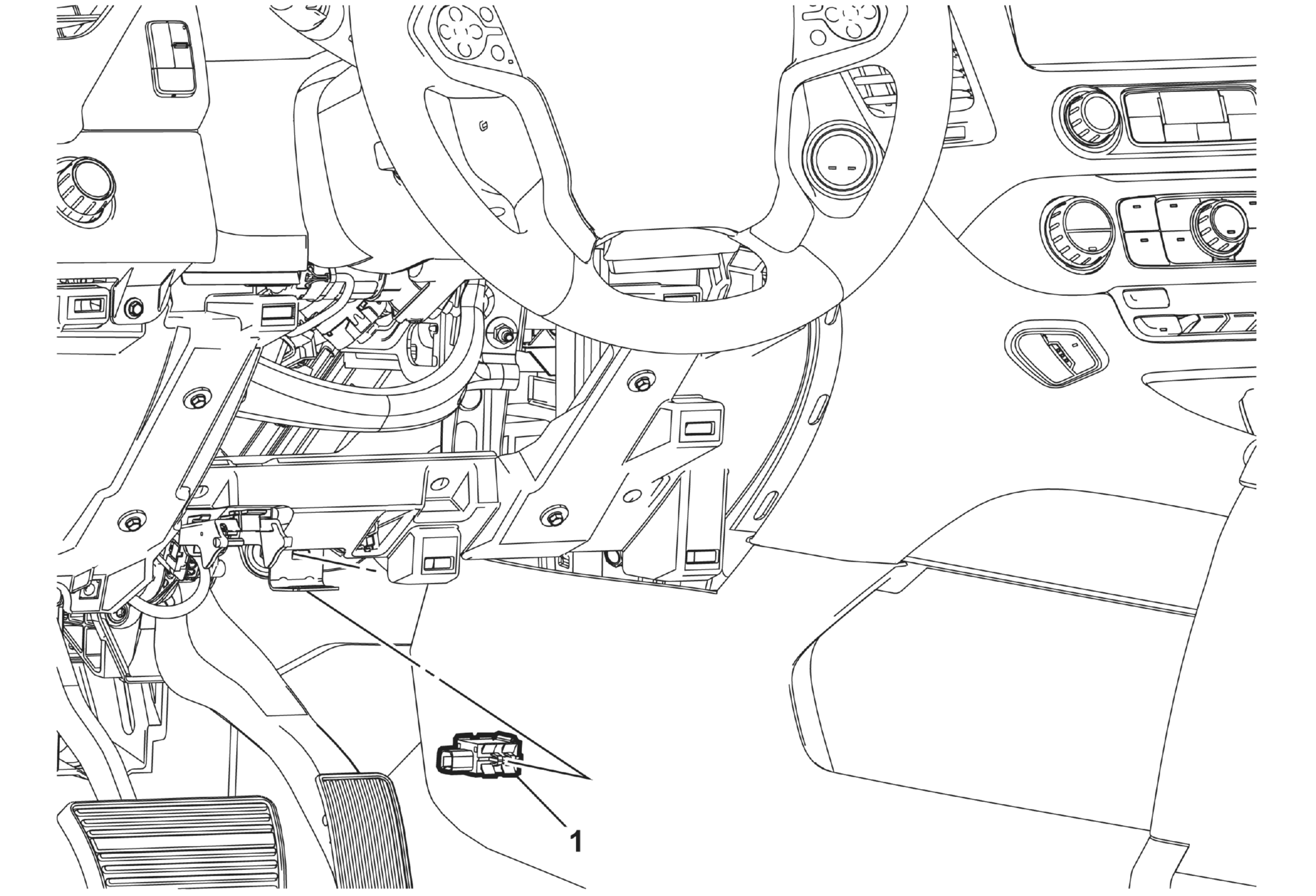

GM3636194Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel knee bolster. Refer to Instrument Panel Knee Bolster Replacement (Chevrolet/GMC)Instrument Panel Knee Bolster Replacement (Cadillac) .
1 Front Floor Flood Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Gently release the tab on the lamp assembly.
