Front Floor Console Replacement (Chevrolet / GMC)

Courtesy of GENERAL MOTORS COMPANY

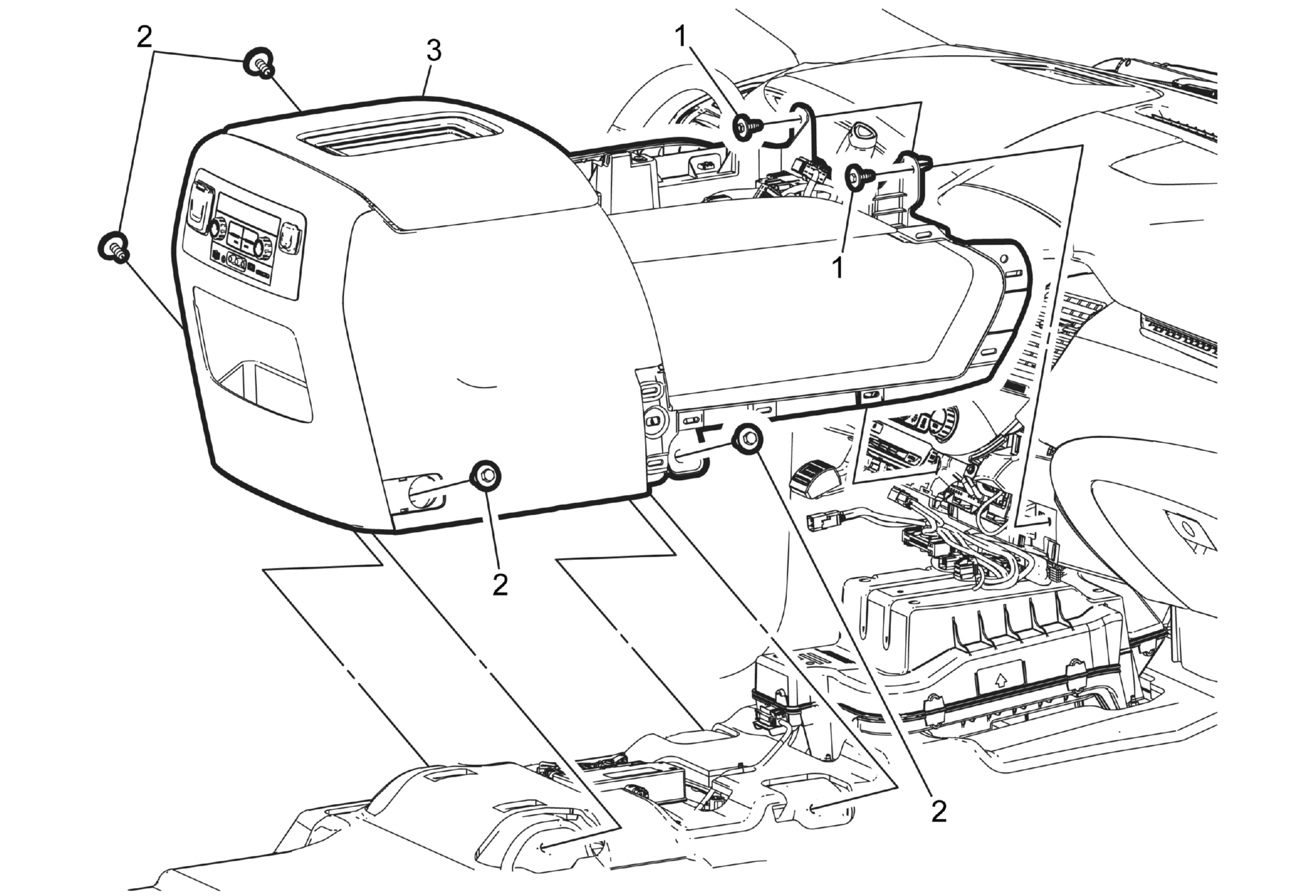

Callout	Component Name
Preliminary Procedures Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Chevrolet / GMC) . Remove the left front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Left Side (Chevrolet / GMC) . Remove the right front floor console extension panel. Refer to Front Floor Console Extension Panel Replacement - Right Side (Chevrolet / GMC) .
1	Front Floor Console Bolt @Instrument Panel (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Floor Console Bolt @Floor Tunnel (Qty: 4) Procedure Pull back the carpet and open the bolt access hole covers to access the fasteners from the floor console. Tighten 45 N.m (33 lb ft)
3	Front Floor Console Procedure Disconnect electrical connections. With the aid of an assistant lift the floor console rearward and upward away from the instrument panel assembly. Transfer components as necessary.
