Front Floor Console Replacement

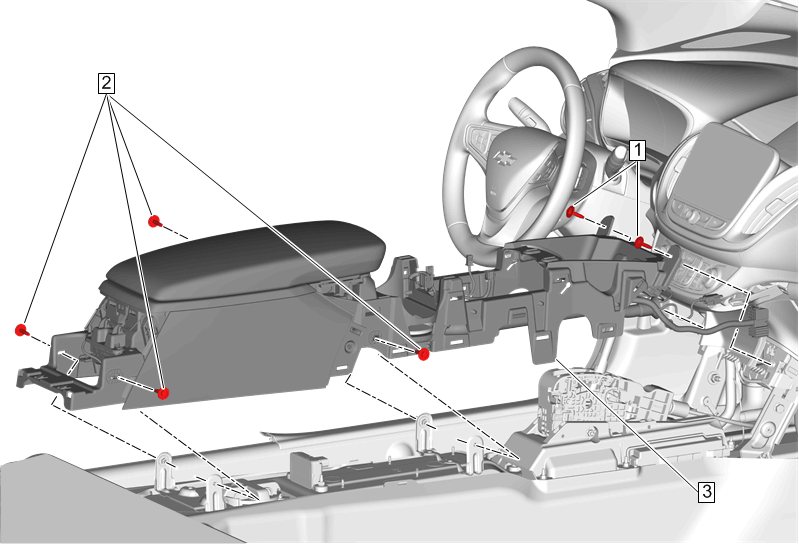

Callout	Component Name
Preliminary Procedure Front Floor Console Extension Panel Replacement - Left Side Front Floor Console Extension Panel Replacement - Right Side Front Floor Console Rear Cup Holder Replacement Front Floor Console Accessory Trim Plate Replacement
1	Front Floor Console Retainer Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Floor Console Bracket Bolt [4x] Tighten 9 N.m (80 lb in)
3	Front Floor Console Assembly Procedure Disconnect all electrical connectors. Transfer components as necessary.
