Front Floor Console Rear Cup Holder Replacement

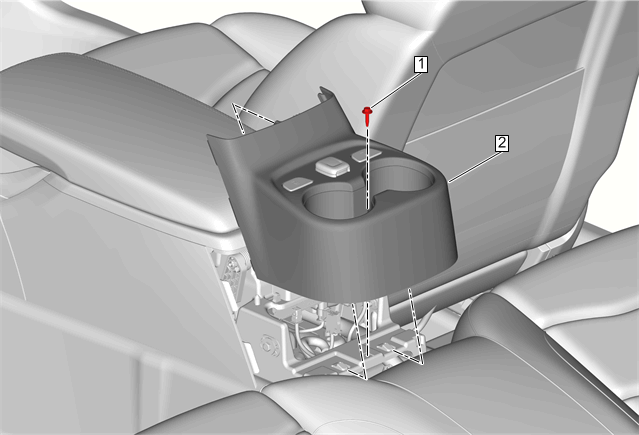

Callout	Component Name
Preliminary Procedure Front Floor Console Cup Holder Liner Replacement
1	Front Floor Console Cup Holder Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Rear Cup Holder Procedure Use a plastic trim tool if necessary. Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Front Floor Console Cup Holder Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Floor Console Rear Cup Holder

Procedure
