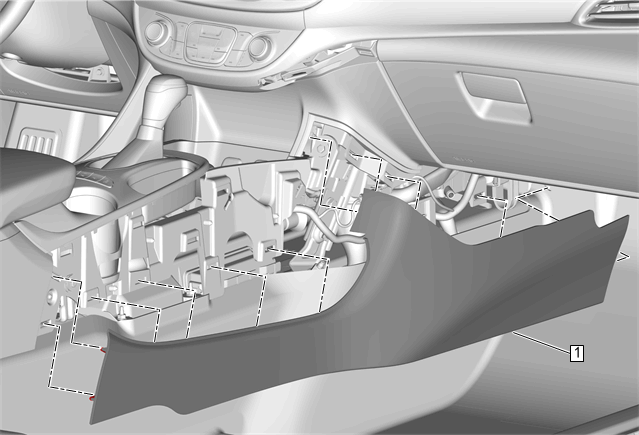

Front Floor Console Extension Panel Replacement - Right Side

Procedure

1. Move the front seat forward to access the retainers at the rear of the panel.
2. Starting from the rear, use a flat bladed plastic trim tool to aid in the removal of the panel from the front floor console assembly.
3. Pull the panel rearward to release the integral hook from the brace assembly.
4. When installing the extension panel, secure the integral hook to the brace first then secure the retainers.
