Front Floor Console Extension Panel Replacement - Left Side

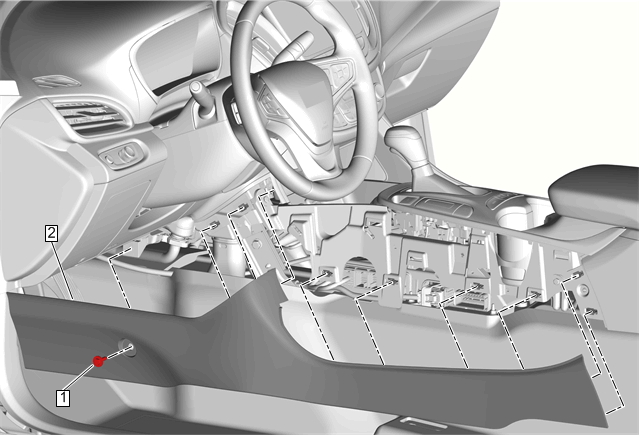

GM4090814

Callout

Component Name

Preliminary Procedure
Front Floor Console Applique Replacement - Left Side

1

Front Floor Console Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Front Floor Console Extension Panel - Left Side

Procedure

Move the front seat forward to access the retainers at the rear of the panel.
Starting from the rear, use a flat bladed plastic trim tool to aid in the removal of the panel from the front floor console assembly.
