Front Floor Console Accessory Trim Plate Replacement

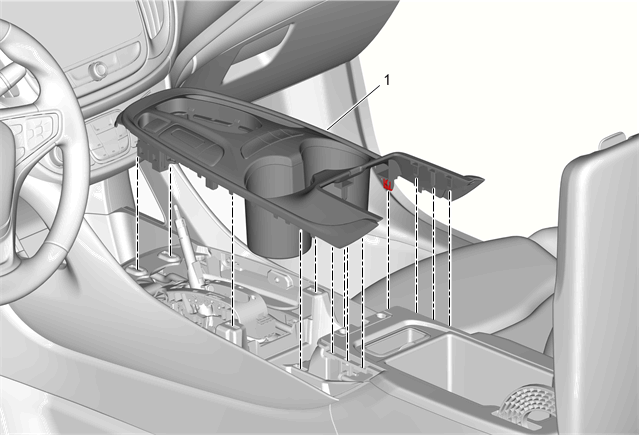

GM4111142
Callout Component Name
Preliminary Procedure
Transmission Control Lever Knob Replacement
1 Front Floor Console Accessory Trim Plate

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
