Rear Seat Latch Cable Synchronization

Preliminary Procedure

1. Remove the rear seat. Refer to Rear Seat Removal and Installation (60/40 Bench) Rear Seat Removal and Installation (Bucket) .
2. Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%) Rear Seat Back Cushion Cover and Pad Replacement (Bucket) Rear Seat Back Cushion Cover and Pad Replacement (40%) .
3. Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (Bucket) Rear Seat Cushion Cover and Pad Replacement (60/40 Bench) .

Procedure

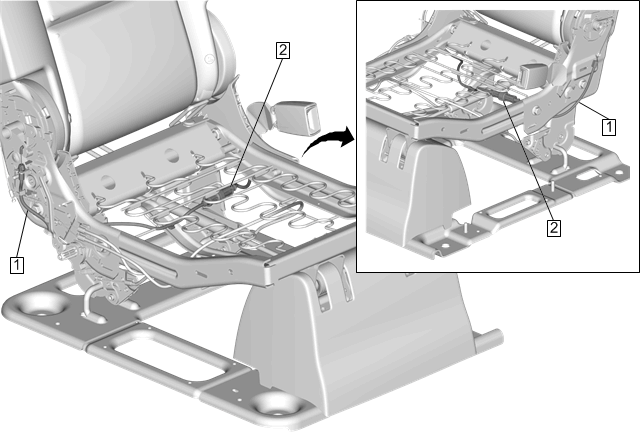

1. Attached cable to outboard recliner.
2. Route and attach to inboard recliner.
3. Close cable adjuster in place.

Procedure

1. Fold the seat back over in the closed position.
2. Un sync cable.
3. Pull up with 2 hands on both sides of center clip.
4. Lift the seat back to the upright locked position.
5. Re-sync cable while leaving the cable in it's routed position, push clip down to sync.
