Rear Seat Cushion Cover And Pad Replacement (Bucket)

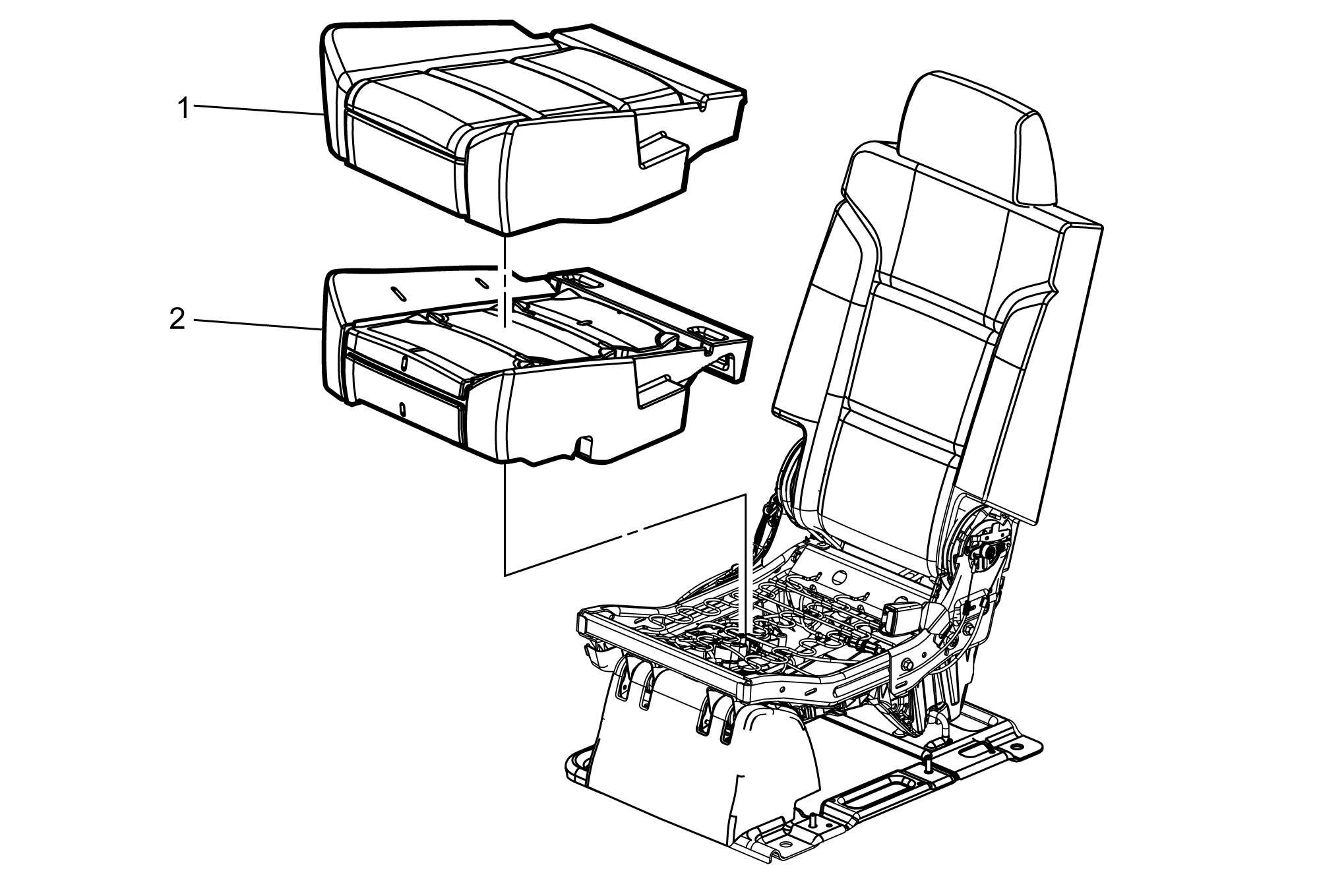

Fig 1: Rear Seat Cushion Cover and Pad (Bucket)
GM3640599Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the rear seat cushion trim panel. Refer to Rear Seat Cushion Trim Panel Replacement (Bucket) .
1 Rear Seat Cushion Cover

Procedure

  1. Disengage the seat cushion cover j-channel from the seat cushion frame.
  2. Disconnect the electrical connectors, if equipped with heat.
2 Rear Seat Cushion Pad

Procedure

  1. Disengage the hook and loop strips and the u-channels retaining the cover to the pad.
  2. Separate the seat cushion cover from the pad.
